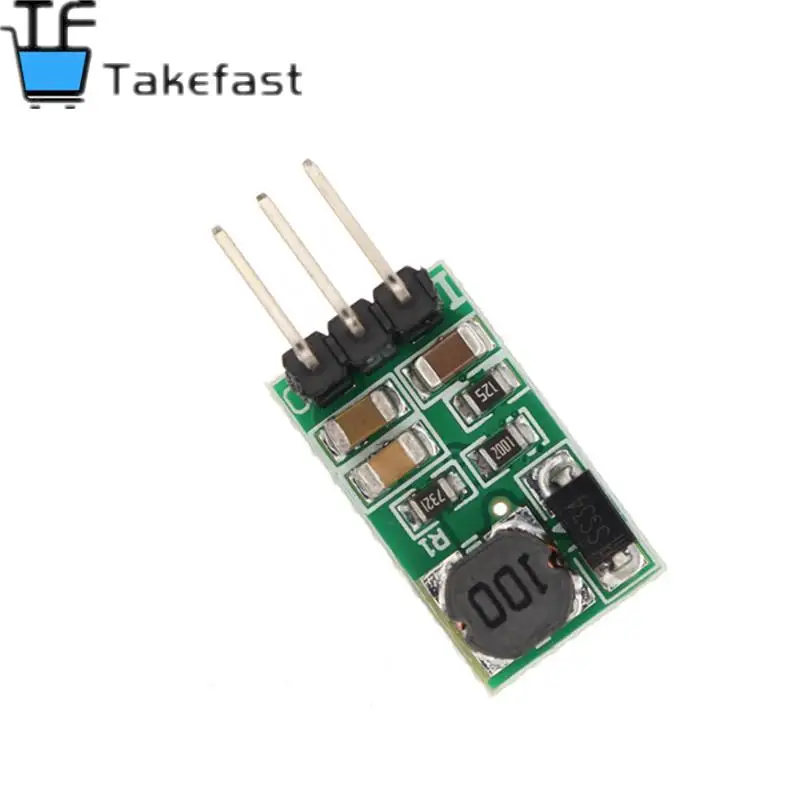

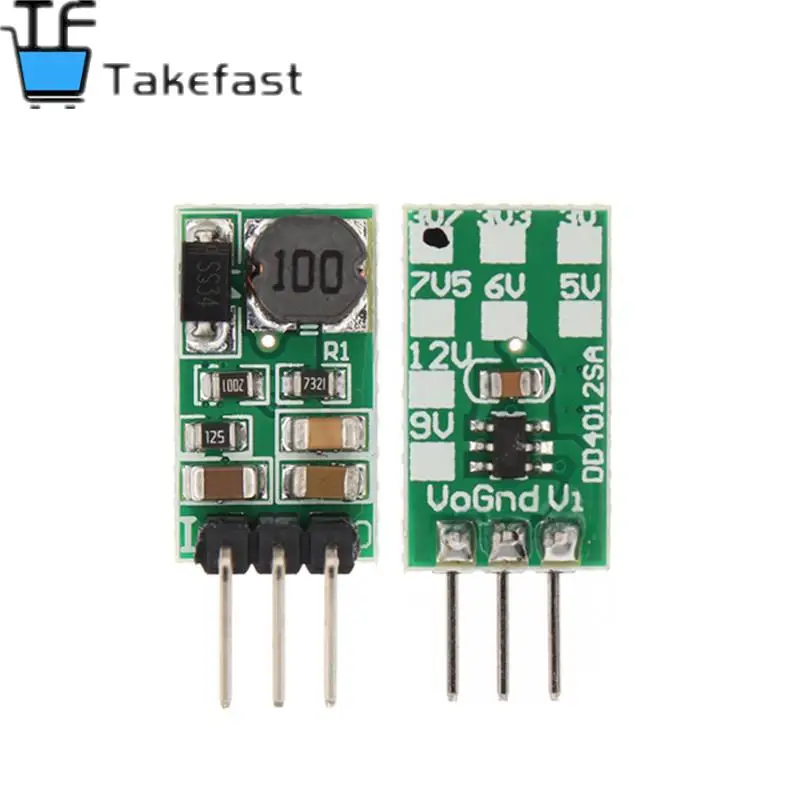

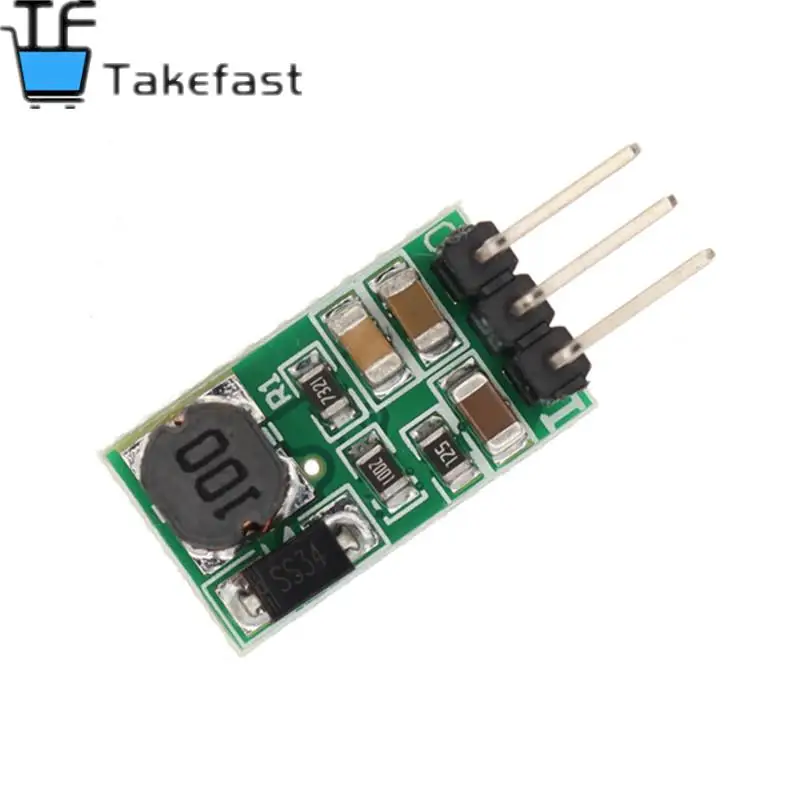

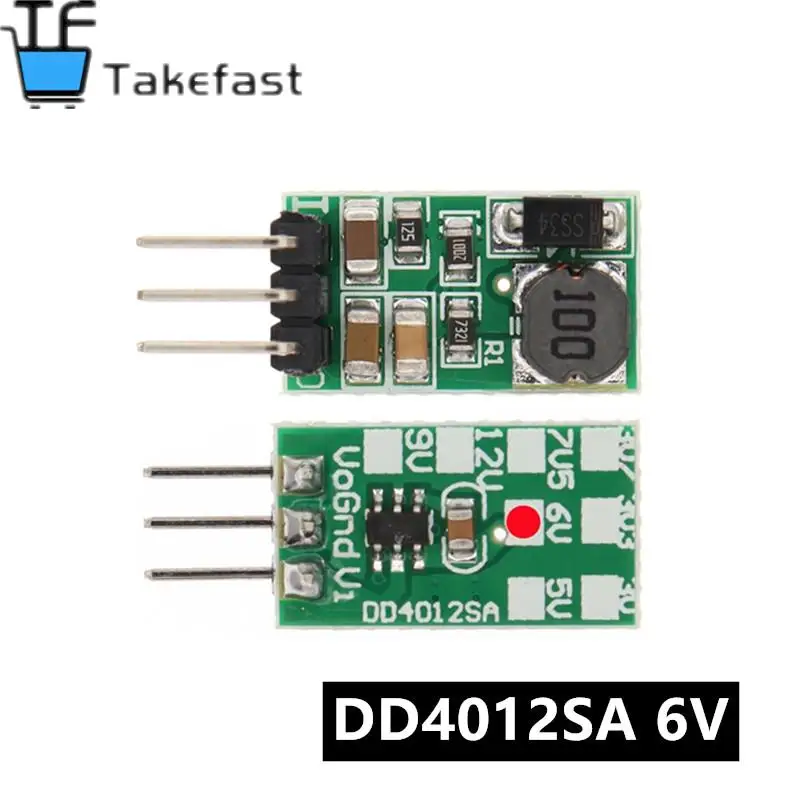

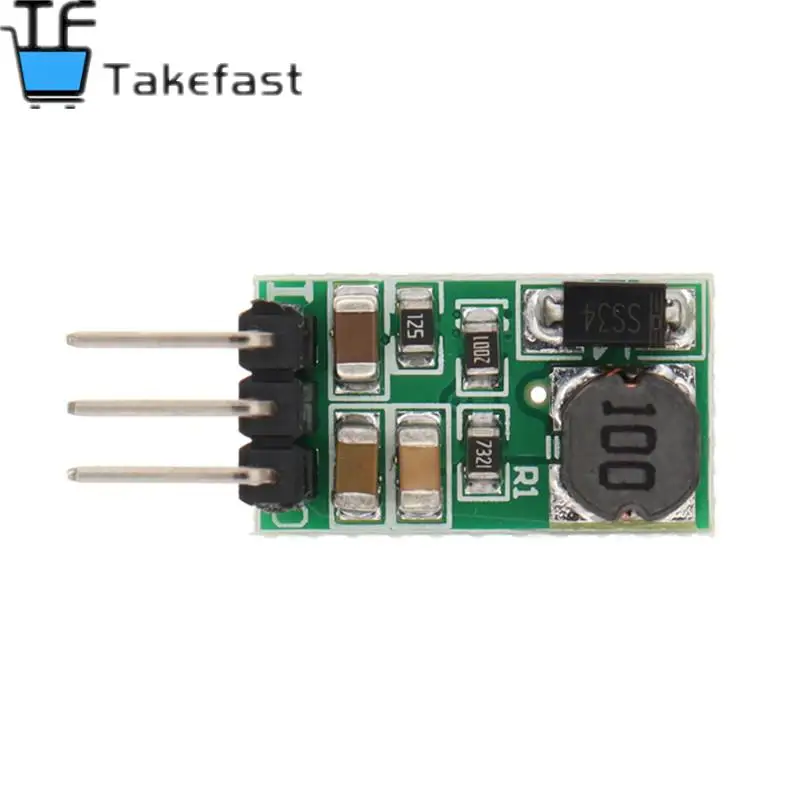

Universal DC - DC Buck Step Down Voltage Converter Module (5 - 40V Input to Adjustable Output) (DD4012SA 6V)

DC-DC Buck Step Down Converter Module

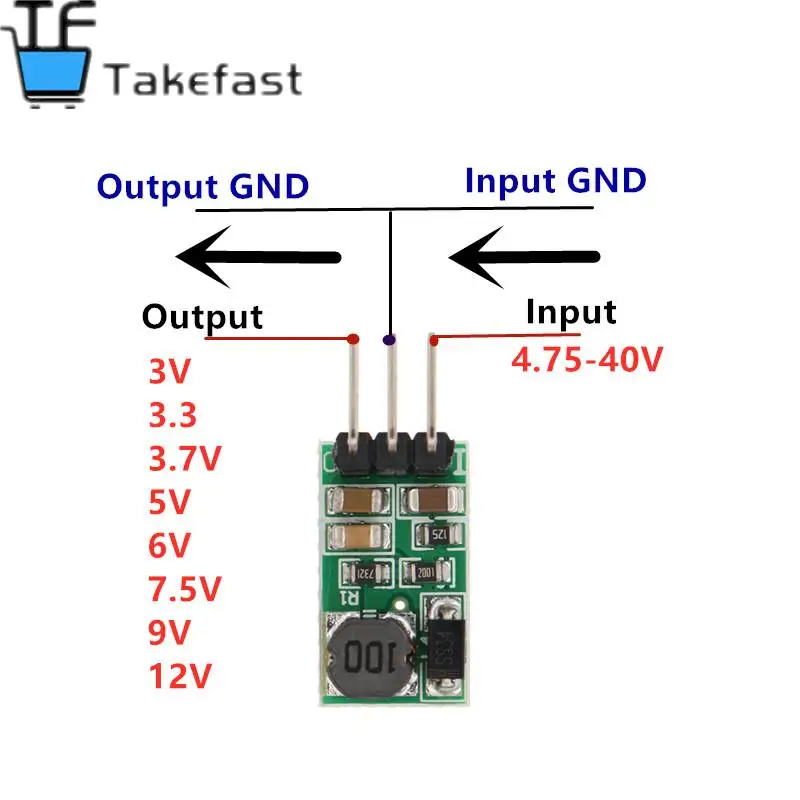

🔴 Transform your power supply with the versatile DC-DC Converter Module, designed to efficiently step down voltages ranging from 5V to 40V to your desired output levels of 3V, 3.3V, 5V, 6V, 7.5V, 9V, or 12V. With a maximum output current capability of 1A, this module serves as an excellent solution for various electronic applications.

💍 The converter operates at a robust frequency of 550KHz, achieving an efficiency rating between 76% and 90%. This makes it an ideal choice for projects requiring stable voltage regulation while reducing energy loss. It features a low quiescent current of approximately 1.5mA, ensuring minimal power consumption during idle states.

🧩 Designed with safety in mind, this module incorporates essential protection features, including over-temperature shutdown, input under-voltage protection, BS-voltage protection, and short circuit protection. These safeguards help to maintain both the longevity of your equipment and reliable operation under various conditions.

🕊️ The module boasts a 2.54mm pin pitch and is compatible with popular development platforms such as Arduino UNO, MEGA2560, and other MCU Development Boards, making it easy to integrate into your existing projects. Its compact dimensions of 18.3mm x 10.2mm x 6.7mm contribute to its functionality, allowing it to fit seamlessly into tight spaces or crowded boards. Weighing in at a mere 1.3g, it is exceptionally lightweight, imparting minimal additional weight to your designs.

Note: When utilizing this DC-DC voltage converter module, it is crucial to adhere to the following guidelines:

• The input voltage must not exceed the specified maximum range.
• The output power should not surpass the maximum load for extended periods.
• The input power must be greater than the output power to account for the module's own power consumption.

Applications:

• 3.3V and 5V powered devices such as MCU, ARM CPUs, and FPGA/CPLD.
• Efficiently convert 12V or 5V to 3.3V in lithium battery-powered systems.
• Drive 3.3V motors in various robotics applications.
• Power modules like the WIFI ESP8266 and CCTV cameras.
• Support wireless modules including Nrf24l01, CC1101, CC2500, CC2530, and Zigbee.
• Enhance smart home and home automation projects.
• Utilize in distributed power systems for optimized energy management.
• Employ as a battery charger or as a pre-regulator for linear regulators, replacing components like AMS1117-3.3, LM1117-3.3, and 1117 LDO.
