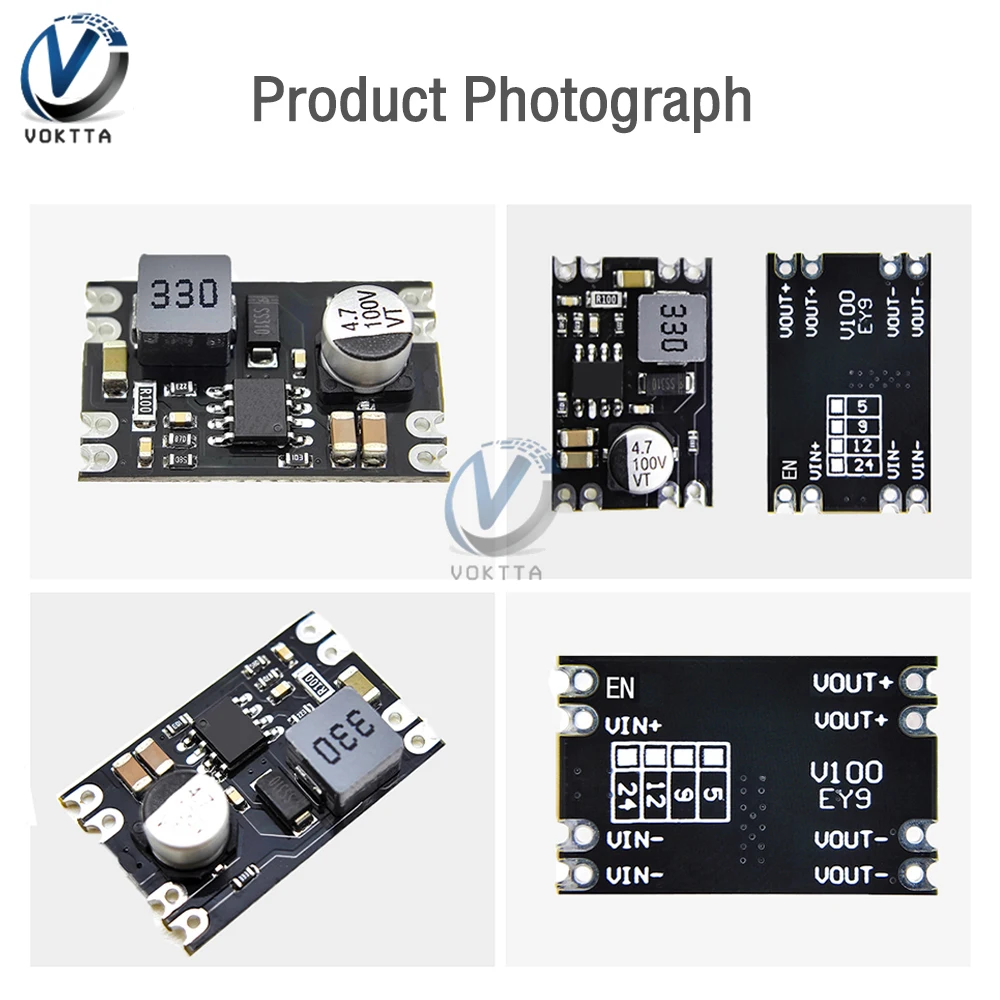

📦 Product Overview: The DC-DC Step-down Voltage Regulator Power Module is an advanced device designed to efficiently convert high direct current voltages into lower, manageable levels. This compact module is capable of accepting an impressive input voltage range from 6V to 100V and features fixed output options of 5V, 9V, 12V, and 24V, making it a highly versatile choice for a variety of electronic applications. It is perfect for projects that require reliable voltage regulation while maintaining energy efficiency.
🔧 Product Features:
- High Efficiency: With a remarkable conversion efficiency of up to 96%, this power module minimizes energy loss during voltage conversion.
- Compact Design: Measuring just 25.5 mm x 16.5 mm x 7 mm, the module is ultra-compact, making it ideal for projects where space is a constraint.
- Overload and Overheat Protection: The built-in safety features include automatic shutdown in the event of overload or overheating, ensuring the longevity and reliability of the device.
- Wide Input Voltage Range: Supports input voltages from 7V to 100V, allowing the module to be utilized in diverse applications where varying power supplies are encountered.

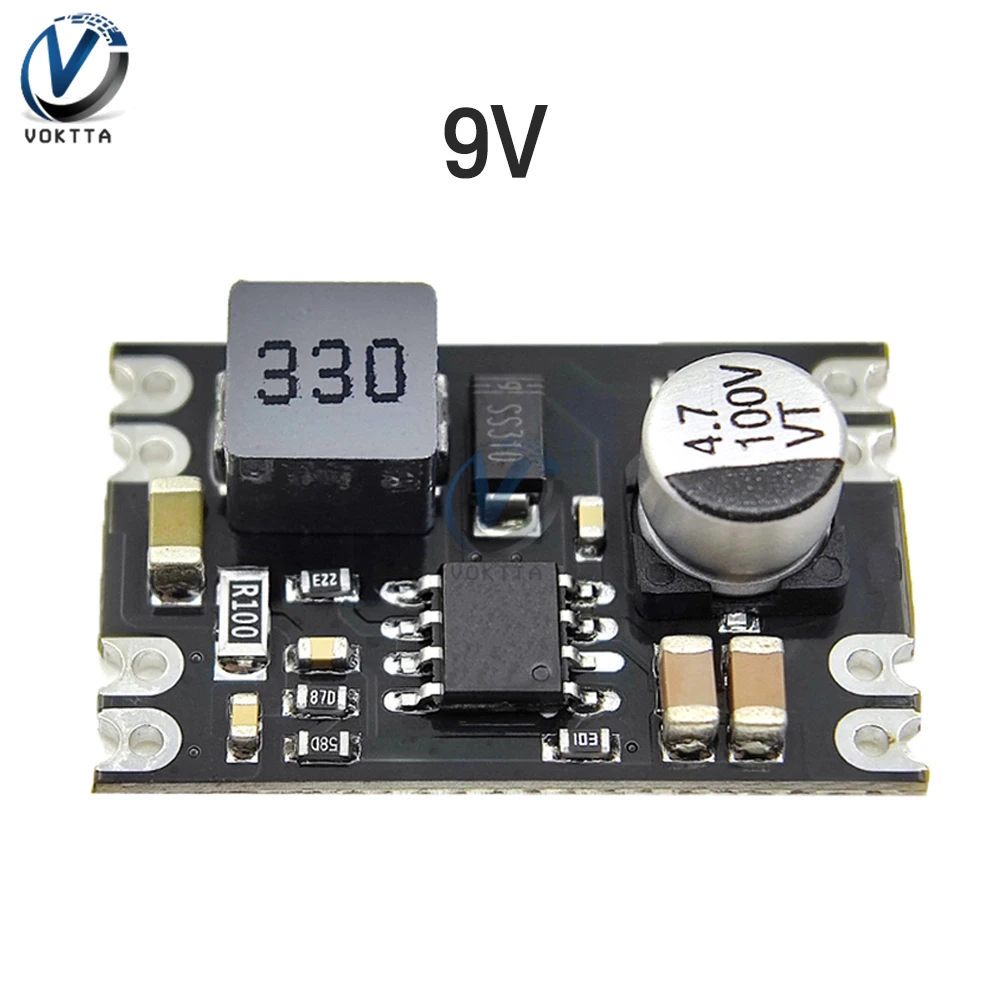

- Various Output Options: Users can choose fixed output voltages of 5V, 9V, 12V, or 24V, tailored to their specific needs and project requirements.
- Robust Performance: Capable of delivering a maximum peak output current of 3A (with sustained performance at 2A) without compromising stability or efficiency.
- Low Output Ripple: Provides a stable output with a ripple less than 30mA, ensuring smooth operation for sensitive electronic components.
- Durable Operation: Designed to operate in extreme environments with a temperature range of -40°C to +125°C and humidity levels of 20% to 90%.
🛡️ Technical Specifications:
- No-load Current: 1mA
- Output Accuracy: ±0.1V
- PCB Layers: 2-layer construction for enhanced performance and stability.
- Installation Options: Can be easily operated with solder wire or patch installation methods.
- Service Life: Estimated to last 35,000 hours without faults, provided the output current does not exceed rated values.
- Special Features: Includes a motherboard half hole for convenient mounting and integration into various PCB designs.
- Working Frequency: 1MHz for efficient operation.
📦 In Summary: This DC-DC Step-down Voltage Regulator Power Module is an exceptional solution for anyone looking to manage high voltage inputs effectively. With its high efficiency, compact design, and robust functionality, it is an essential component for hobbyists and professionals alike, ensuring reliable performance in a variety of electronic applications.
📦 Product Package Includes: 1x DC-DC Step-down Voltage Regulator Power Module
