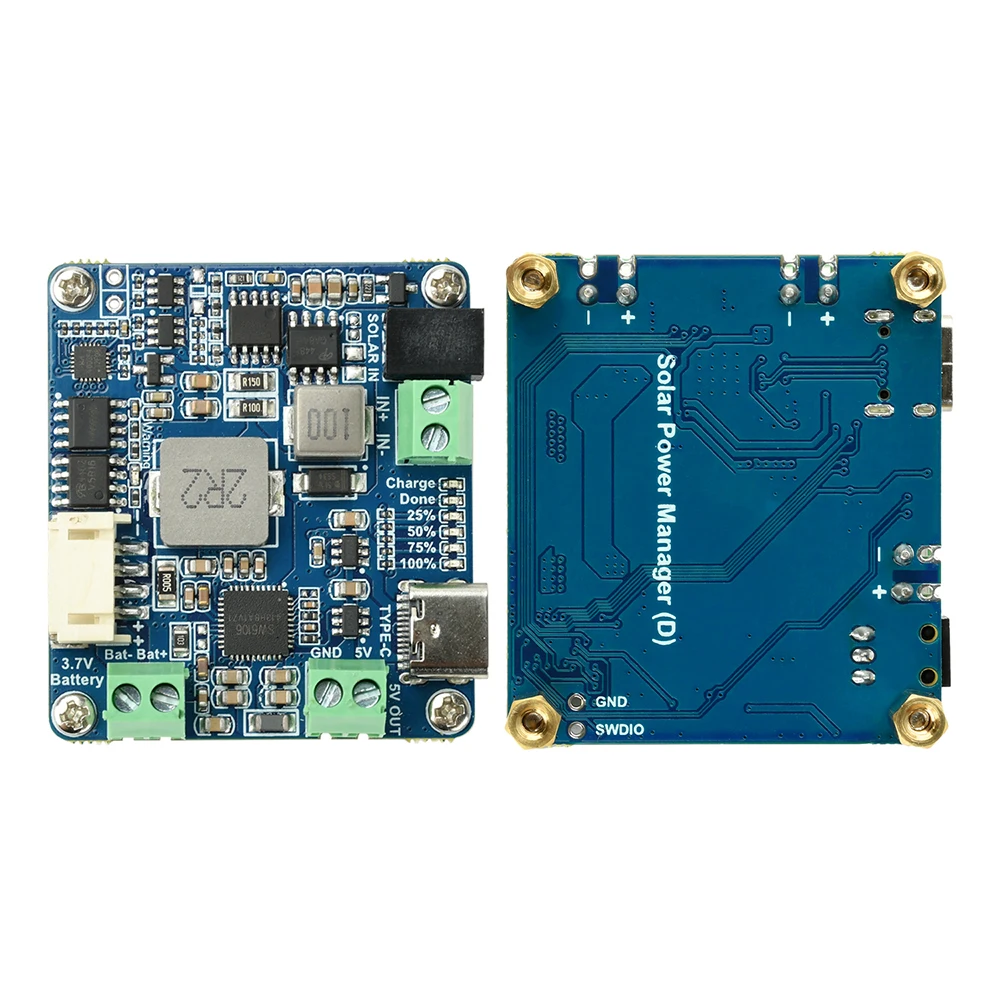

🔋 MPPT Solar Power Manager Module D is a cutting-edge power management solution designed for use with Arduino and Raspberry Pi projects, enabling efficient charging of lithium batteries through solar energy or alternative power sources. This module is exceptionally versatile, working seamlessly with 6-24V solar panels to harness renewable energy while providing a stable 5V/3A output.
🔧 Key Features:
- MPPT Power Point Tracking: The module employs Maximum Power Point Tracking (MPPT) technology, which enhances solar energy conversion efficiency. This means that your solar power system can operate at its peak performance, maximizing energy harvested from sunlight.
- Diverse Charging Options: Keep your batteries charged through multiple methods, including solar panels and Type-C power adapters, allowing for flexibility in charging conditions.
- Adaptive Voltage Input: Suitable for a wide range of 6-24V solar panels, the module includes features like adaptive input voltage regulation and reverse connection protection to ensure a safe and user-friendly experience.
- Status Indicator Lights: Equipped with multiple onboard indicator lights, the power manager allows for easy monitoring of both the solar panel and battery status, making it user-friendly for hobbyists and professionals alike.
- Robust Protection Circuits: Safety is a priority with advanced built-in protection against overcharging, overdischarging, overheating, and overcurrent conditions, ensuring the longevity of your batteries and the entire system.
🧩 This module is ideal for a variety of applications, including solar energy projects, low-power Internet of Things (IoT) installations, and other environmentally friendly endeavors. Its reliable design and efficient energy management can significantly contribute to sustainable living and energy conservation.
Product Specifications:
- Input Voltage: 6-24V from solar panels
- Charging Methods: Through solar panel or USB power adapter
- Compatible Battery Type: Requires 3 x 18650 rechargeable lithium batteries (not included)
- USB Input Voltage: 5V via Type-C interface with support for fast charging protocols (PD)
- Power Output: 5V at 3A
- Charging Cut-off Voltage: 4.2V ± 1%
- Overdischarge Protection Voltage: 3.0V ± 1%
- Solar Charging Efficiency: Approximately 78%
- USB Charging Efficiency: Approximately 93%
- Boost Output Efficiency: Approximately 90%
- Static Current: Maximum < 30mA
- Operating Temperature Range: -40°C to 85°C
⚡ Package Includes:
- Power management module x 1
- Optional: Battery box x 1
Achieve reliable and efficient energy management with the MPPT Solar Power Manager Module D, paving the way for innovative renewable energy solutions in your projects.
