⚡ Product Overview: Dive into the exciting world of communication technology with the DC 9V CW Morse Code Decoder Bulk Circuit Board. This versatile electronic manufacturing kit is designed specifically for students, hobbyists, and electronics enthusiasts looking to enhance their understanding of Morse code in a hands-on environment. Whether you're new to electronics or an experienced engineer, this kit provides an engaging opportunity to learn and practice essential skills in a fun and interactive way.
🔧 Key Features:
- This comprehensive CW Morse code decoder kit facilitates a seamless learning experience, helping users grasp the fundamentals of Morse code with ease.
- Capable of recognizing key elements of Morse code, including dots (.), dashes (-), and spacing intervals, this kit translates these signals into their corresponding characters or numbers for clear output.
- Equipped with a CW audio signal input feature, the decoder effectively displays received Morse code, making it ideal for both learning and practical applications.
- The device can decode incoming Morse code audio, displaying the translated characters in real time, alongside the bitrate of the received signal.
- Morse code has historical significance in the realm of wireless communication, serving not only as a vital means of communication but also as a captivating hobby and a gateway to understanding telecommunications technology.
🔍 Technical Specifications:
- Kit Name: CW Morse Code Decoder
- Power Supply: DC9V
- Operating Voltage: 9V
- Working Current: 33mA
- PCB Dimensions: 101x50mm
🧩 Functional Capabilities:
- Allows input of CW audio signals for effective Morse code interpretation.
- Generates visual outputs by displaying the decoded Morse code characters.
- Translates and decodes incoming Morse code audio to facilitate understanding of communication signals.
- Offers a readable display of the bitrate for incoming signals, enhancing user experience.
- Comes with an external CW button, enabling users to practice Morse code transmission independently.
🔘 Operating Instructions:

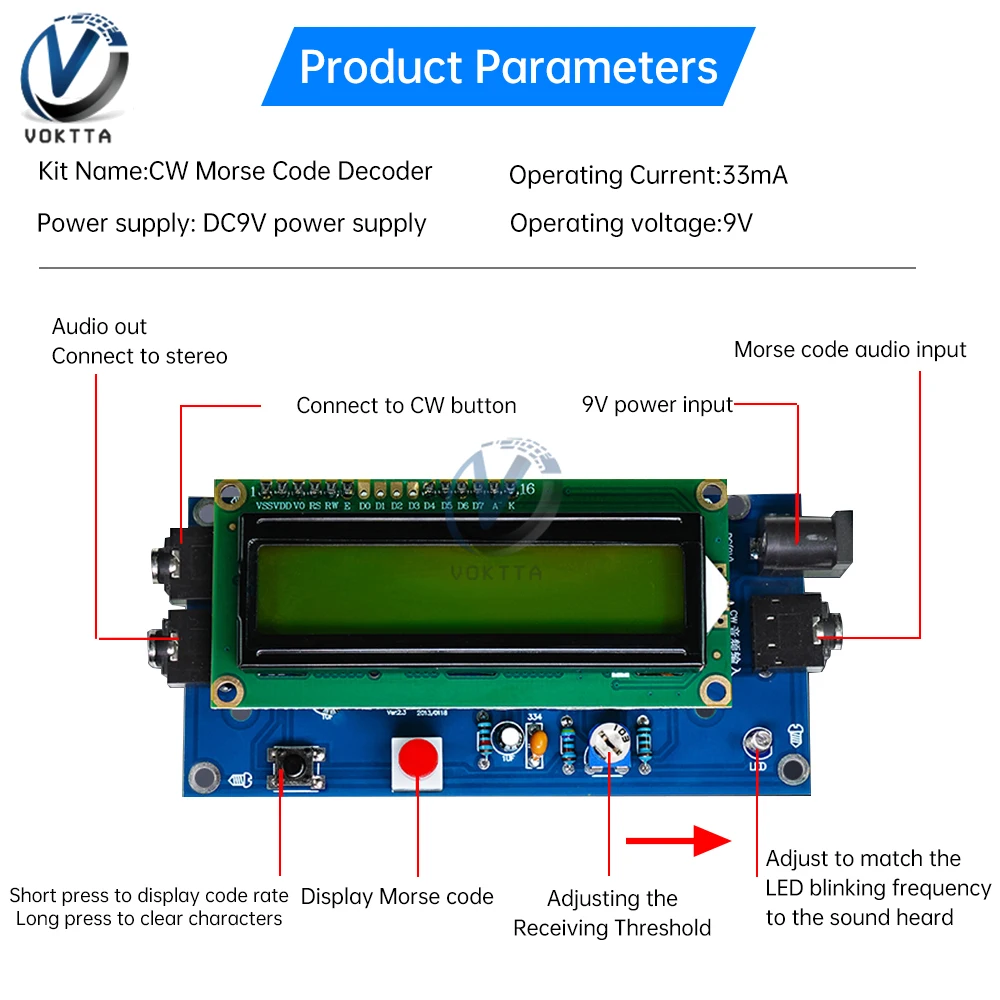

- Connect to the 9V DC power supply for operation.
- Link the CW audio input terminal to a Morse code audio source for decoding; the resulting characters will appear on the LCD screen.
- Attach headphones or speakers to the output terminal to listen to the decoded Morse code audio.
- Utilize the receiving threshold potentiometer to align LED flashes with audible sounds; proper adjustment is crucial for accurate decoding.
- Engage the self-locking switch to display the Morse code entered until released.
- Use the touch switch to view the bitrate of received Morse code signals.
- Connect the CWKEY end to the keypad for interactive Morse code practice, with messages displayed on the LCD screen. Note that simultaneous audio input and keypad entries may cause interference.
- Short presses represent dots and long presses are interpreted as dashes; be sure to hold for over 360ms to register a long mark.
🔊 Package Includes:

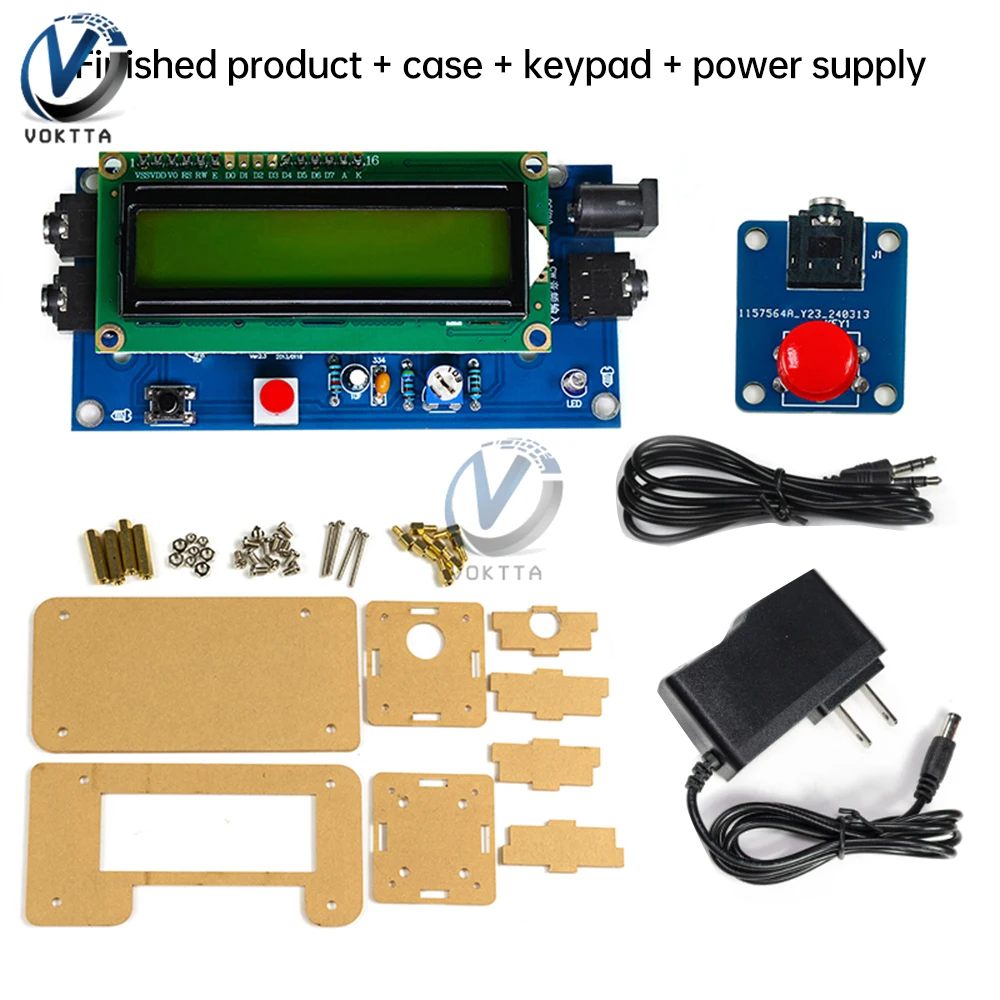

- A: Complete Decoder Unit with Shell & US Power Supply
- B: DIY Parts for Decoder Assembly
🌿 Engage in an educational and rewarding experience with the DC 9V CW Morse Code Decoder kit, and unlock the mysteries of Morse code communication!
