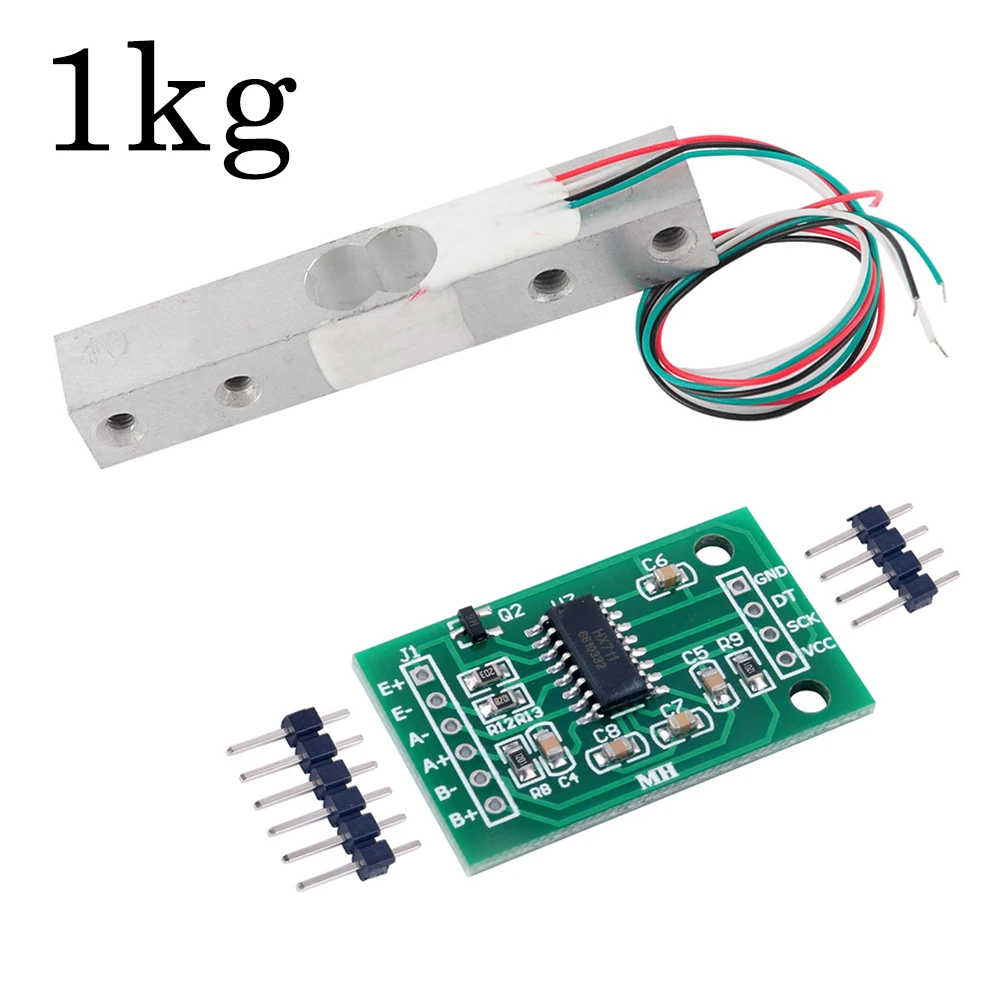

Precision Aluminum Alloy Load Cell Weight Sensor with HX711 AD Module - Multi - Capacity Options (1kg)

Load Cell Weight Sensor with HX711 AD Module

🛡️ Experience precise measurements with our advanced Load Cell Weight Sensor available in various capacities: 1KG, 2KG, 3KG, 5KG, 10KG, and 20KG. This sophisticated weighing pressure sensor is expertly crafted from durable aluminum alloy, making it the perfect choice for electronic scale applications.

🛠️ High-Precision Measurement

🛠️ At the heart of this module lies the cutting-edge HX711 chip, featuring a 24-bit high-precision A/D converter designed specifically for electronic scales. This technology ensures exceptional accuracy and reliability, making it ideal for professional and hobbyist use alike.

🔧 Advanced Features

• Two selectable differential input channels for versatile applications.
• Built-in low-noise programmable gain amplifier (PGA) with selectable gains of 32, 64, and 128.
• Integration of an on-chip power supply regulator that powers both the load cell and ADC analog systems.
• On-chip oscillator requires no external components, although an optional external crystal can be used for enhanced performance.
• Features a power-on-reset mechanism for reliable operation.
• Simple digital control with a serial interface, allowing for straightforward implementation without the need for complex programming.

🌀 Flexible Data Output

💍 The HX711 module allows for a configurable output data rate of either 10 samples per second (SPS) or 80 SPS, catering to different measurement requirements. Additionally, it boasts simultaneous 50Hz and 60Hz supply rejection, enhancing measurement stability in varying electrical environments.

Efficient Power Consumption

💍 This weight sensor is designed with efficiency in mind, operating at less than 1.5mA during normal conditions, and less than 1μA in power-down mode. This facilitates prolonged operation and energy conservation in battery-powered setups.

Robust Design for Various Conditions

🪶 The module operates effectively within a voltage range of 2.6 to 5.5V and withstands temperatures between -40 to +85°C, ensuring performance in a wide array of environments and applications.

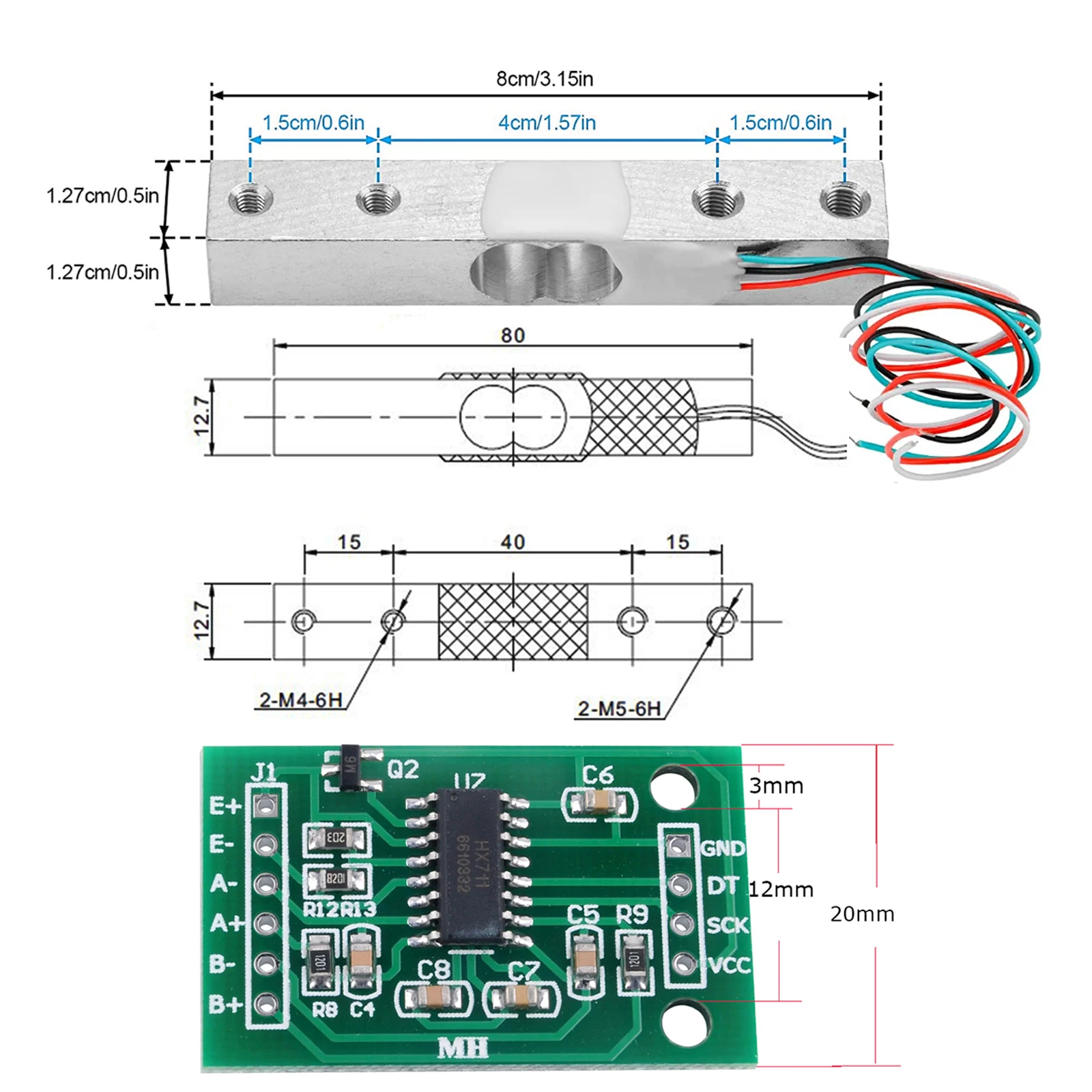

Size Specifications

• Module dimensions: 35mm x 20mm
• Load sensor dimensions: 80mm x 12.7mm x 12.7mm

📦 Package Includes:

• 1 x Scale Load Sensor
• 1 x HX711 Weighing Sensor Module
