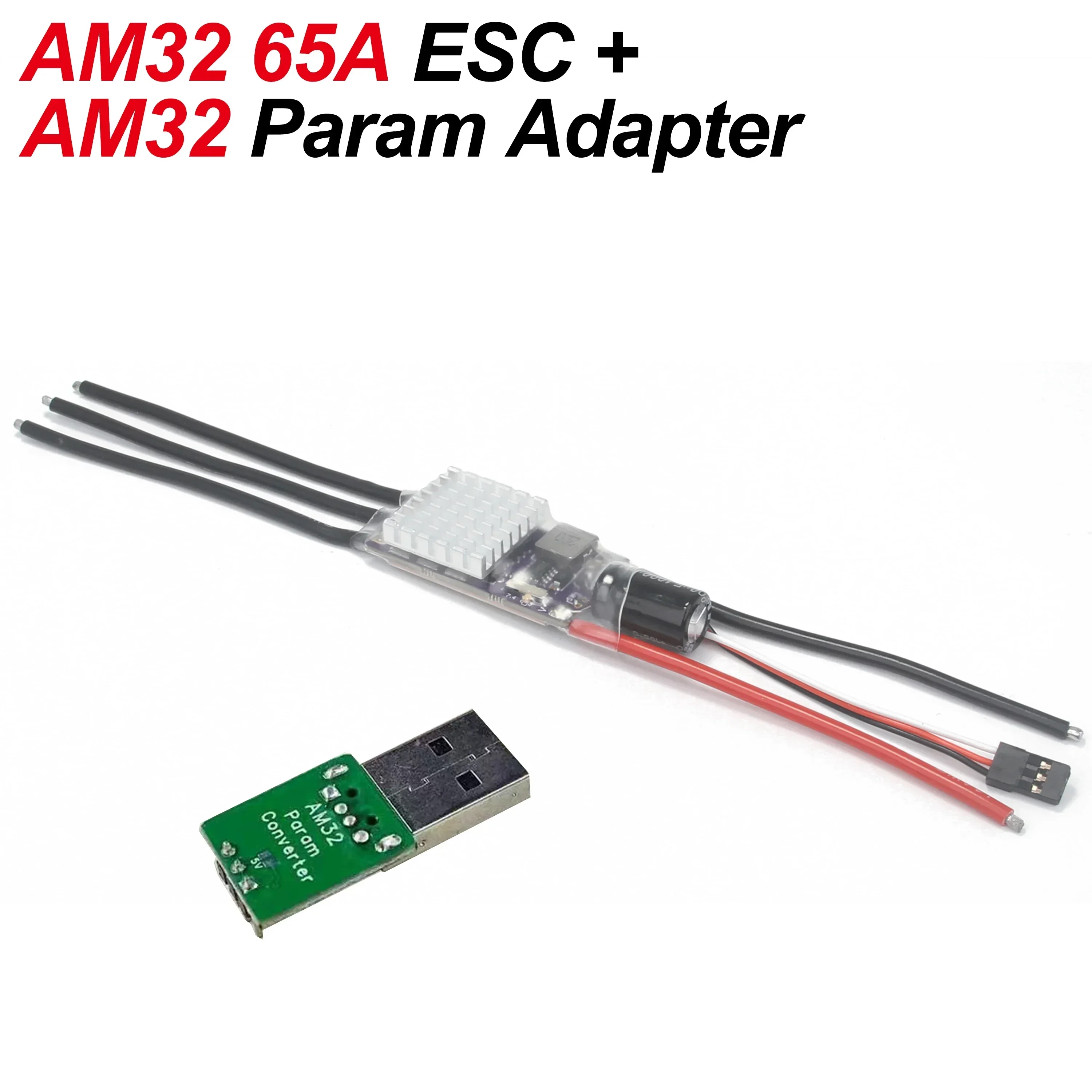

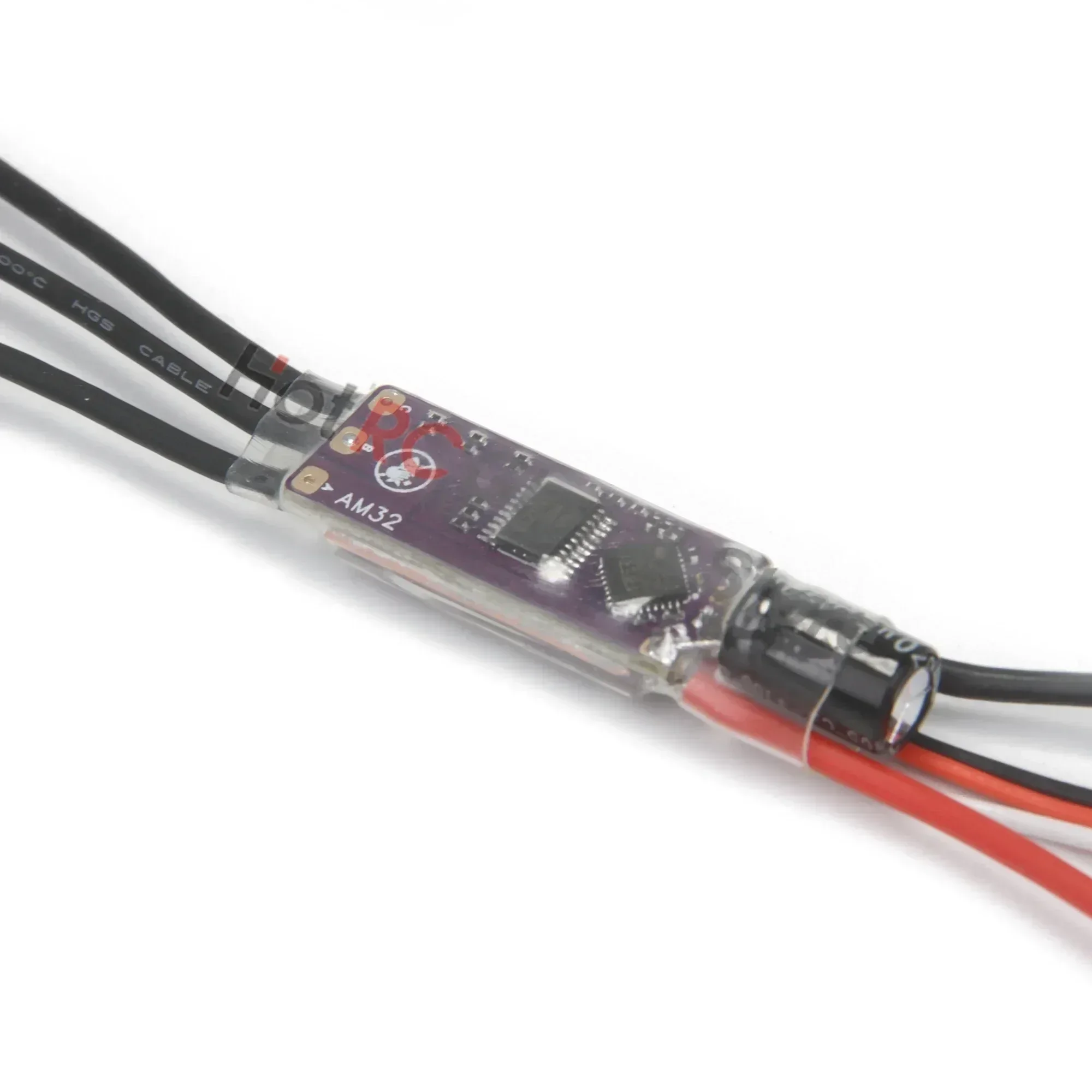

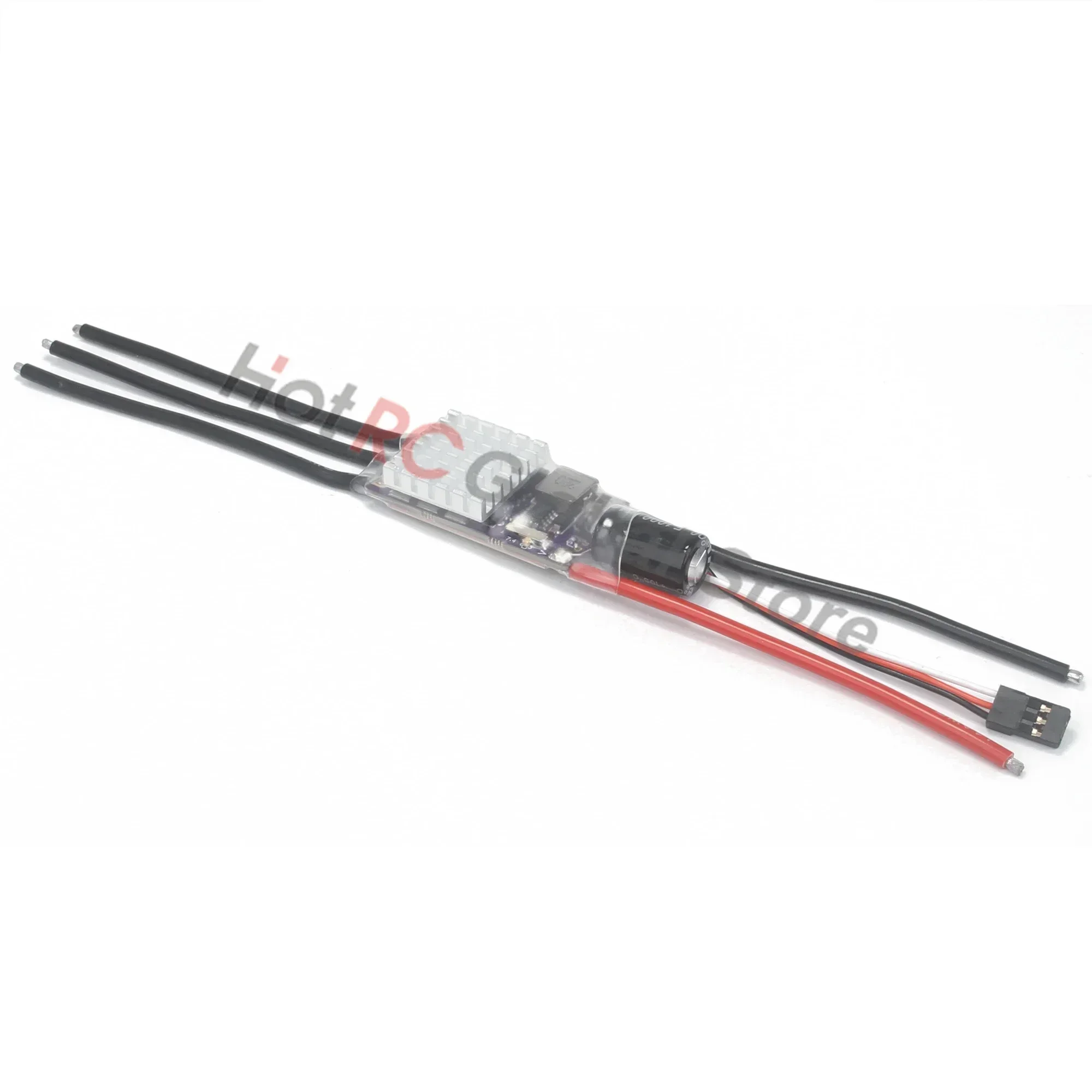

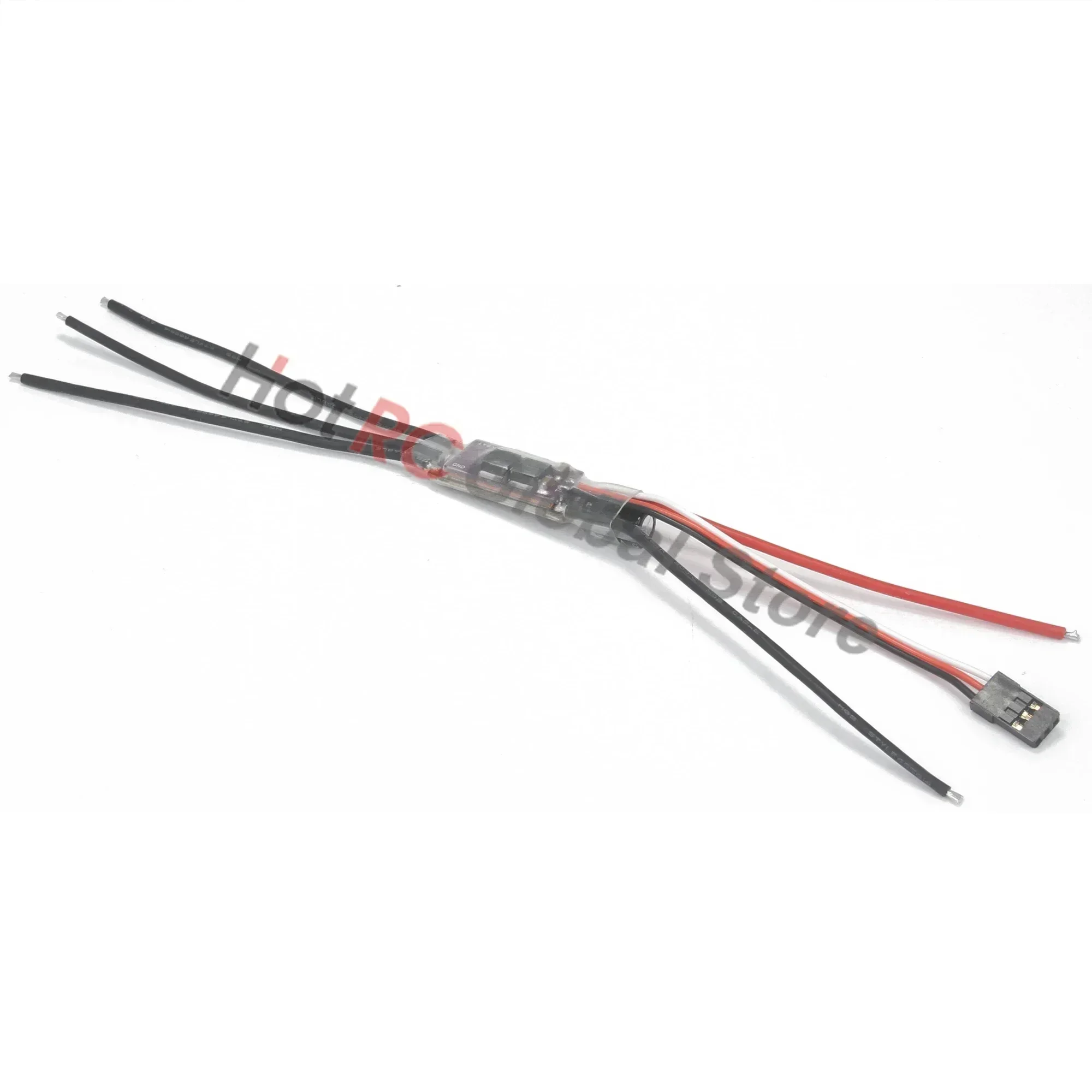

📦 AM32 40A 65A ESC 32-bit Speed Controller
Experience cutting-edge technology with the AM32 ESC, a state-of-the-art electronic speed controller designed for discerning enthusiasts in the RC car, crawler, and FPV drone communities. This compact yet powerful speed controller boasts a 32-bit architecture, perfect for optimizing the performance of your small model airplane brushless motors.
📦 Compact Design and Enhanced Heat Dissipation
With its super mini size, the AM32 ESC fits seamlessly into tight spaces, offering convenient installation without sacrificing performance. Built with selected low-power MOSFETs and a smart layout for optimal heat dissipation, this ESC can handle the rigors of demanding driving conditions while ensuring robust power delivery.
💍 Powerful Performance for Various Applications
This ESC is ideal for a range of applications, including small aircraft, crawlers, and climbing vehicles, due to its miniaturized design coupled with high power output. It integrates a BEC module that supplies 5V at 2A, enhancing overall functionality. The addition of overcurrent copper bars and thermal conductive silicone sheets elevates its performance to new heights, ensuring reliability during intense use.
⚡ Advanced Control Signal Support
The AM32 ESC supports popular control signals like DSHOT and PWM, ensuring smooth operation whether you’re maneuvering at low speeds or engaging in high-speed runs. Utilizing the AM32 open-source firmware enables fine-tuning of the ESC's settings, allowing for adjustable drag braking, sine start features, and responsive forward and reverse switching, making it a versatile choice for all RC enthusiasts.
⚡ Specification Overview
- Item Name: 32-bit ESC
- Firmware: AM32
- Master Control: AT32
- Working Voltage: 2-4S Lipo
- Max Current: 40A
- BEC: 5V2A
- Support Signal: PWM/DSHOT/Sine
- Applicable Motor: Below 22 series
- Board Size: 30x12mm
- Weight: Approximately 4.6g
⚡ Upgraded AM32 ESC PRO Version
For those seeking even more capabilities, the AM32 ESC PRO version offers several enhancements. It includes an onboard BEC module with adjustable voltage levels of 5V, 6V, and 7.4V, supporting a maximum current of 5A, making it perfect for high-power peripherals. Additional features such as an LED status indicator, telemetry backhaul interface, and an external switch pad provide users with comprehensive control and feedback.
🧩 Ports and Connectivity

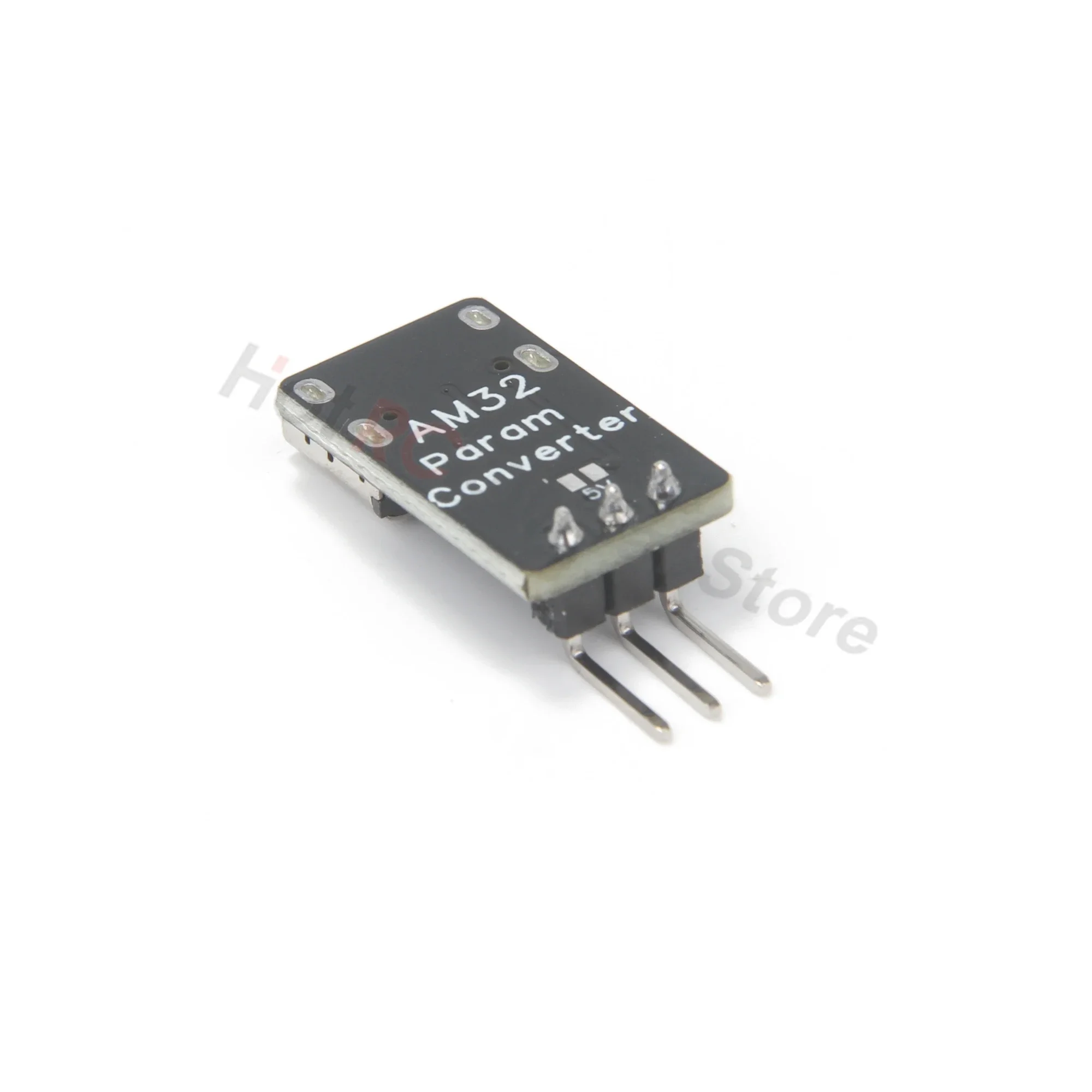

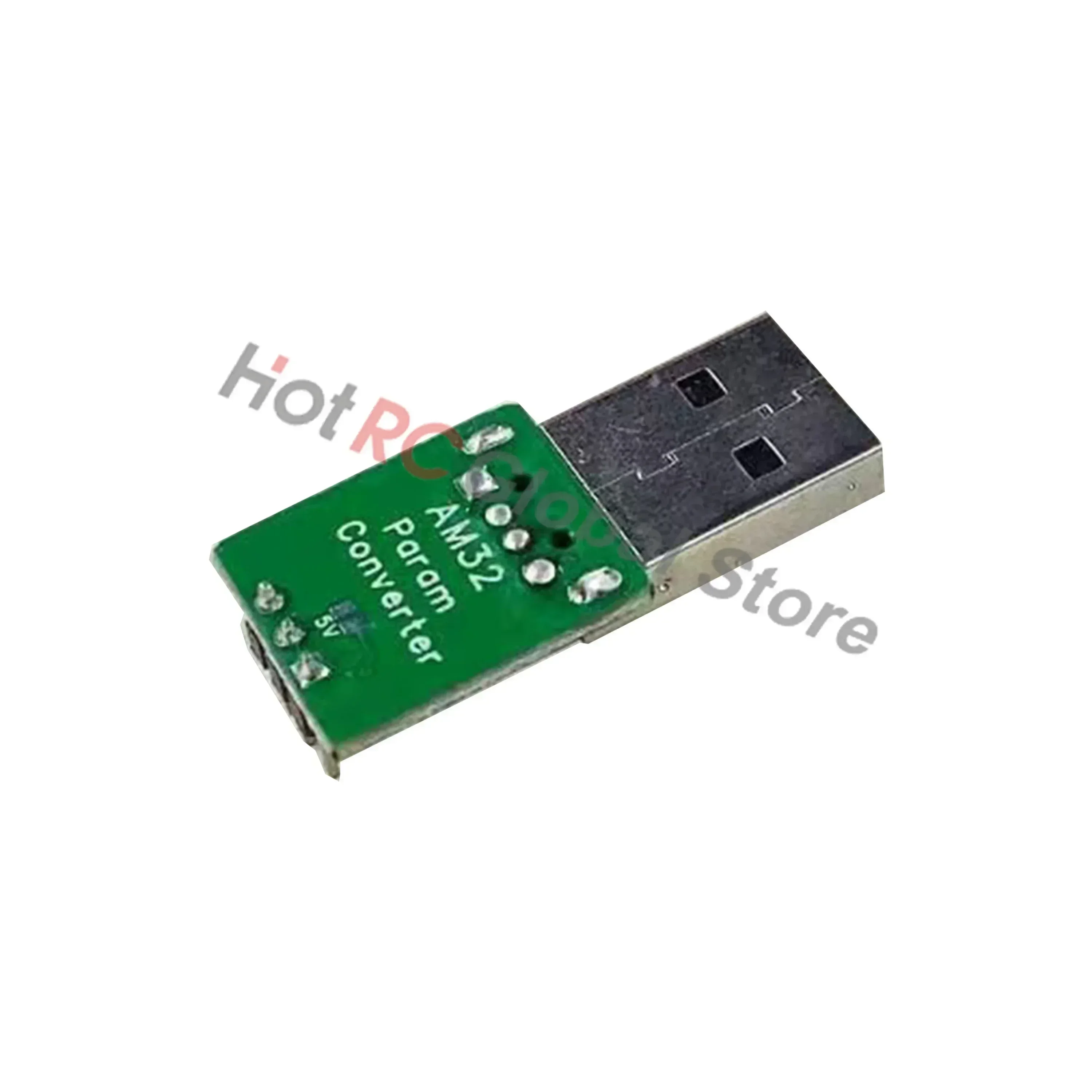

The AM32 ESC can be effortlessly connected to a computer for firmware upgrades using a USB link, allowing for easy configuration and customization. The firmware is optimized for safety and speed, making it suitable for various vehicle types and flight controllers. The portable design ensures you can make adjustments on the go, keeping your equipment finely tuned for peak performance.
⚡ Specification Overview for AM32 ESC PRO
- Item Name: AM32 ESC PRO
- Firmware: V2.16
- Master Control: AT32
- Working Voltage: 2-6S
- Max Current: 65A
- Support Signal: PWM/DSHOT/Sine
- BEC Parameters: 5V/6V/7.4V adjustable, 5A
- Module Size: 52x25x7mm
- Weight: Approximately 14.9g
🏆 Elevate your RC experience with the AM32 ESC and its PRO version, equipped with features designed to maximize performance, efficiency, and user control.
