💍 Product Overview: The ZK-4KX and ZK-5KX DC-DC Buck Boost Converters are versatile power modules designed for laboratory applications. These adjustable regulated power supplies can effectively boost or lower voltage levels while delivering stable output performance, making them indispensable for various electronic projects and testing scenarios.
🔍 Display and Control: Equipped with a clear LCD screen, this module provides real-time monitoring of essential parameters, including input/output voltage, output current, output power, output capacity, and elapsed operating time. The user-friendly CNC adjustment feature allows for quick and precise voltage and current settings, with the output voltage adjustable from 0.5V to 30V and a maximum output current of 4A.
🧩 Safety Features: The ZK-4KX and ZK-5KX models are designed with safety in mind. They include anti-reverse connection protection to prevent damage during setup, allowing for worry-free configurations. The output also features anti-reverse irrigation protection, eliminating the need for additional diodes during battery charging processes. Multiple software protection mechanisms can be customized, including undervoltage, overvoltage, overcurrent, overpower, overtemperature, and timeout protection, all ensuring reliable operation under various conditions.
😎 Performance Capabilities: With input voltages ranging from 5V to 30V, these converters can handle a maximum output power of 35W under natural conditions, which can be increased to 50W with enhanced heat dissipation strategies. The design allows for stability at 3A with the capability to reach 4A under optimal cooling conditions. The conversion efficiency of approximately 88% ensures minimal energy loss during operation.
💍 Operational Ease: Users can effortlessly switch between different display parameters and set voltage and current values. The module features a soft start function that helps to prevent failures during high power or load situations. Calibration functionality is also included for fine-tuning output voltage and current, providing accuracy for critical applications.

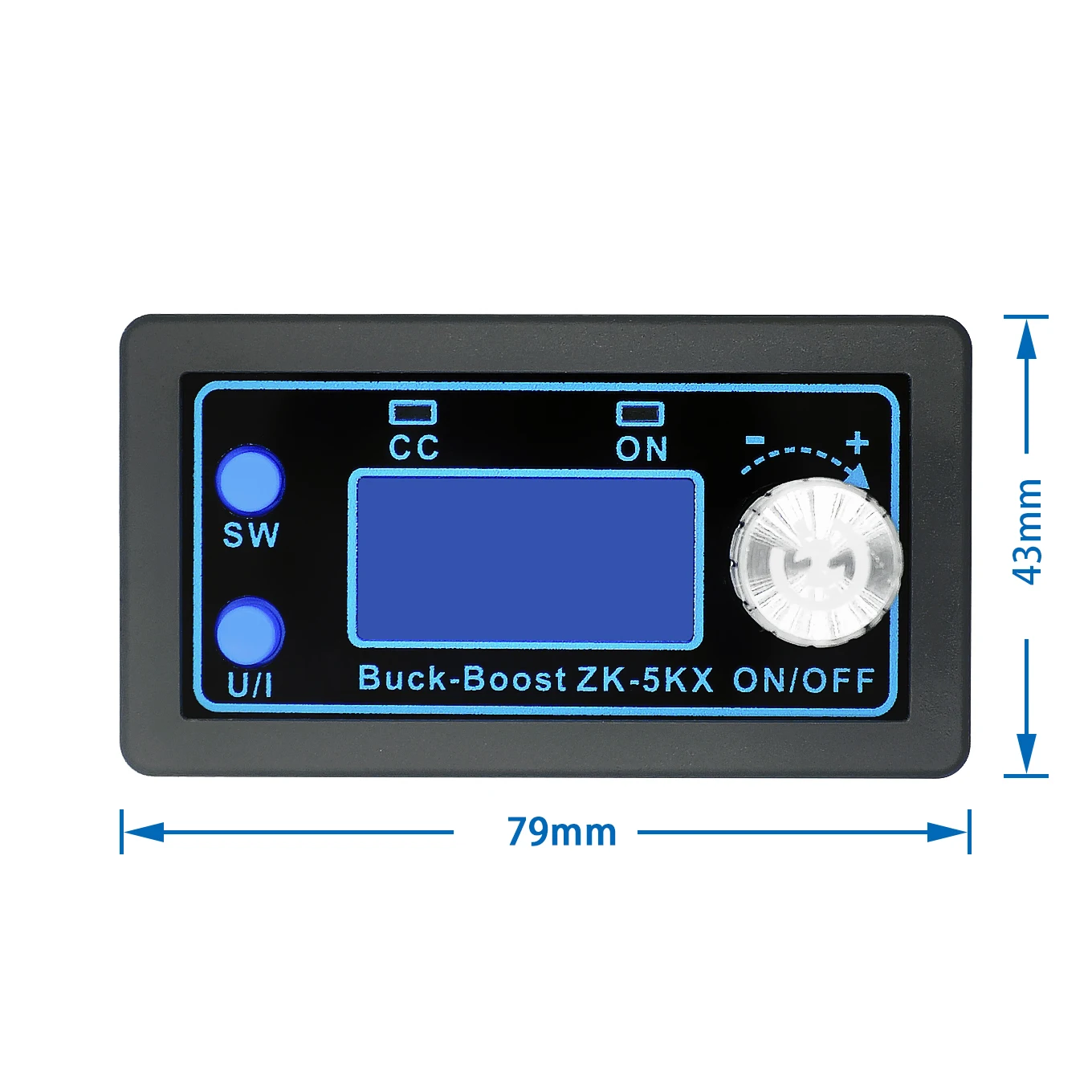

📦 Physical Specifications: The dimensions of the module are compact, measuring 79mm in length, 43mm in width, and 26mm in height, with a total weight of 92g including packaging. Its robust design features thicker radiator fins to enhance heat dissipation, ensuring longevity and reliability in performance.
🧩 Usage Guidelines: Users need to follow specific guidelines during operation, such as avoiding short connections between input and output to maintain constant current function. It is critical to ensure that the power supply capacity exceeds the requirements of the output load for safe and effective performance. Furthermore, when utilizing higher power outputs, adequate heat dissipation measures should be employed to maintain optimal functionality.
🧩 In summary, the ZK-4KX and ZK-5KX DC-DC converters are sophisticated tools, providing adjustable power solutions with a multitude of safety features, high accuracy, and user-friendly operation, making them suitable for a variety of laboratory and electronic project applications.
