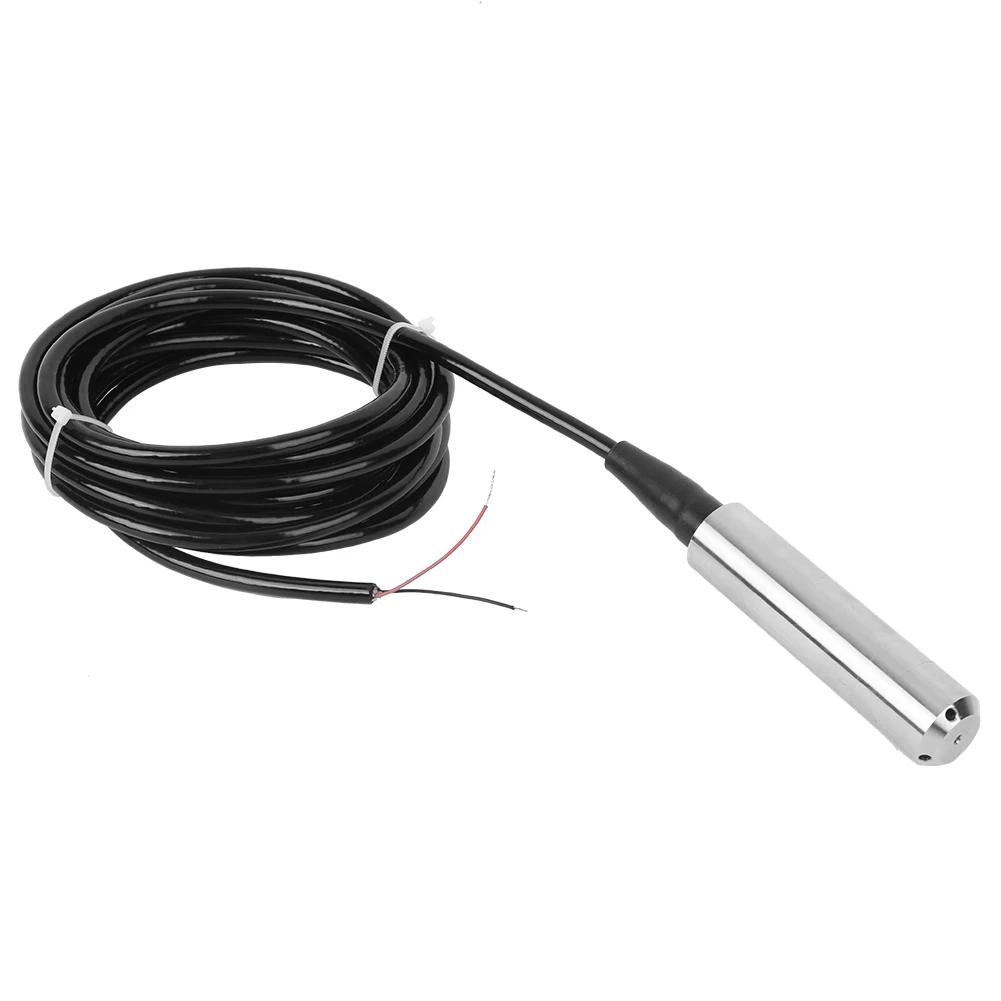

Product Title: Sensor TL-136 Liquid Transmitter - Advanced Water and Liquid Detection
🛠️ Description: The Sensor TL-136 is a cutting-edge liquid transmitter designed for accurate and reliable monitoring of water and various non-corrosive liquids. Engineered with precision in mind, this sensor provides exceptional performance in a range of applications.
🔧 Key Features:
- High-Precision Monitoring: Equipped with a high diffusion silicon input transmitter, the TL-136 ensures accurate measurements, making it an ideal choice for real-time water level detection.
- Stable Output: The sensor utilizes an all-digital conditioning circuit, delivering a stable 4-20 mA output that minimizes fluctuations and ensures reliable data transmission.
- Robust Waterproof Design: With an IP68 rating, this sensor is built to withstand harsh environments, providing enhanced safety and longevity against water exposure.
- Innovative Anti-Shock Features: Designed with a 4-degree oblique angle and a detachable anti-blocking feature, the TL-136 is engineered to resist mechanical shocks and prevent obstructions, ensuring continuous performance.
💧 Technical Specifications:
- Item Type: Liquid Sensor
- Tested Medium: Water and other non-corrosive liquids
- Cable Length: Customized options available
- Measuring Range: Options include 0-1m, 0-2m, and additional customizable ranges
- Measurement Accuracy: ±0.2% FS to ±0.5% FS (conventional)
- Output: 4-20 mA
- Supply Voltage: 12-32 VDC
- Medium Temperature Range: -40°C to 70°C
- Ambient Temperature Range: -40°C to 80°C
- Temperature Compensation: -10°C to 70°C
- Overload Capacity: IP68 rated for durability
- Temperature Source Variation: ±0.01% FS/°C
- Long-term Stability: ±0.2% FS/year
- Shock Resistance: 20g at 20-000 Hz
- Material: Constructed from 304 stainless steel for resilience
⚡ Package Includes:
- 1 x TL-136 Liquid Transmitter
🛡️ With the Sensor TL-136 Liquid Transmitter, you gain a reliable and robust solution for your liquid level detection needs, backed by advanced technology and durable materials that ensure lasting performance.
