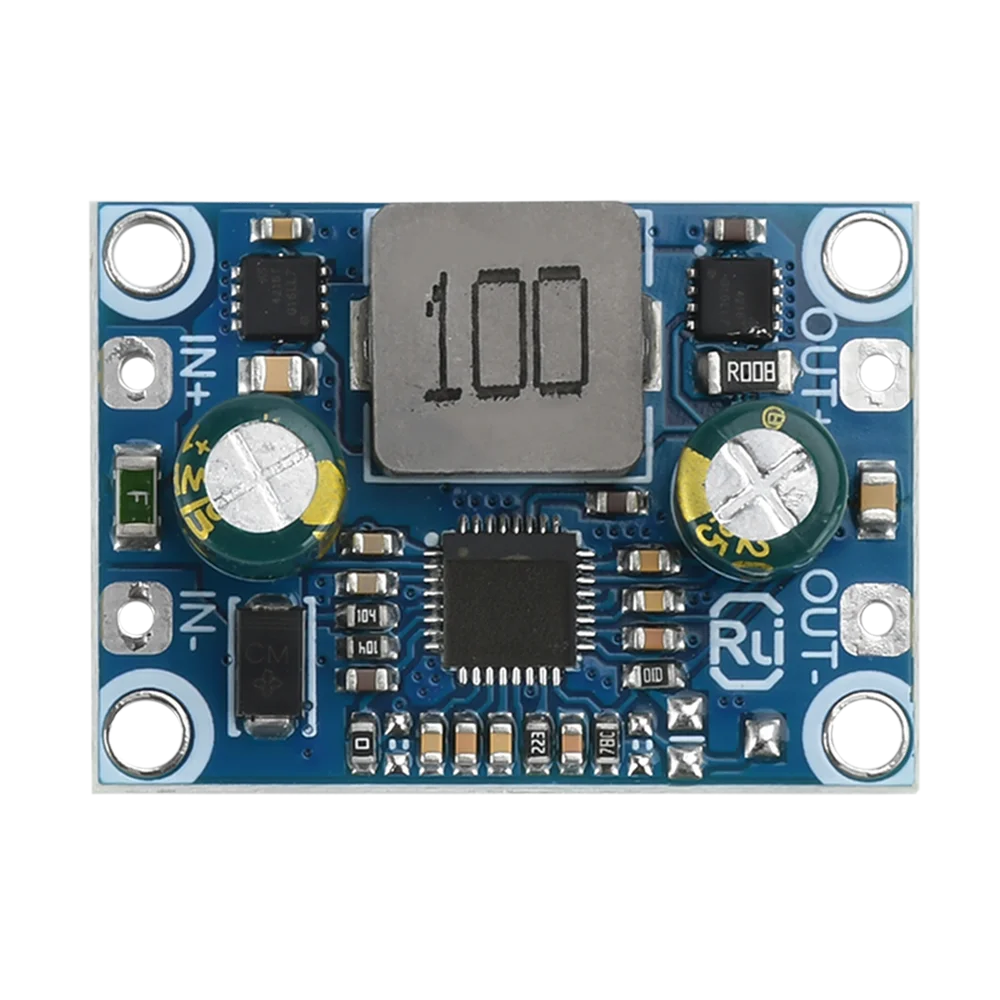

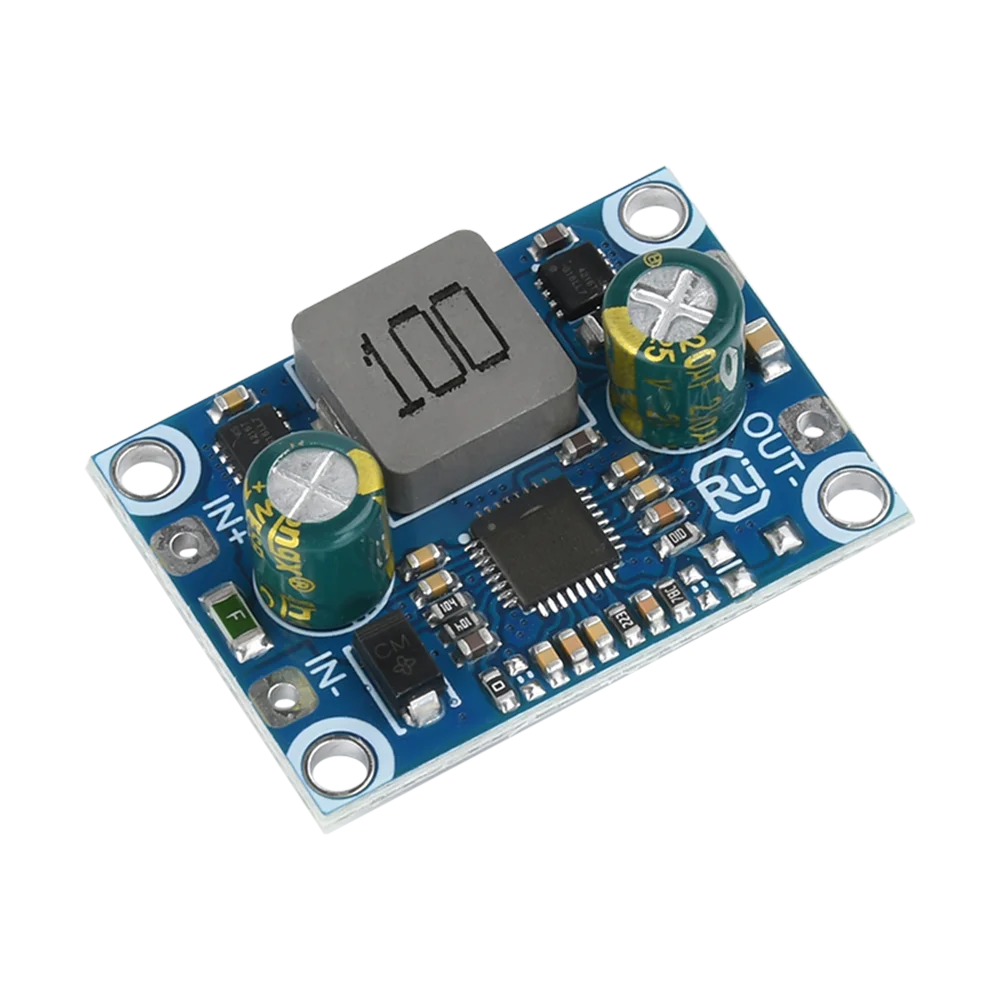

📦 Product Overview: The DC-DC Buck-Boost Module is a highly versatile power regulation solution designed to accommodate a wide input voltage range of 3.6V to 32V. This compact module delivers stable output options of 5V, 9V, or 12V, boasting a maximum output current of 5A, making it ideal for a diverse array of devices and applications.
🔧 Key Features:
- Wide Input Compatibility: Capable of accepting input voltages from 3.6V up to 32V, this module is adaptable to various power supply environments, ensuring high flexibility for multiple projects.
- Robust Output Performance: With a stable output configuration of 5V, 9V, or 12V, and a maximum output current of 5A, this module is designed to meet the power requirements of a diverse range of electronic devices.
- Compact and Lightweight: The compact design and lightweight construction enable easy integration into various devices and DIY projects, providing an efficient power solution without occupying valuable space.
- Comprehensive Protection: Equipped with built-in protective mechanisms including output short circuit protection and over-temperature protection, this module ensures safe and reliable operation for both the module itself and any connected equipment.
- Durability in Harsh Conditions: Designed to function optimally in challenging environments, the module is capable of maintaining long-term stability and reliability, making it suitable for use in industrial and outdoor applications.
🧩 Technical Specifications:
- Input Voltage: DC 3.6V - 32V
- Output Voltage: 5V, 9V, or 12V (selectable)
- Maximum Working Current: 5A
- Operating Temperature Range: -40°C to +125°C
🔧 Advanced Features:
📦 This module utilizes an original chip along with high-quality Samsung capacitors to enhance performance. It utilizes external MOS technology, which allows for increased power output in a compact size. Initially, it operates in DCM mode, consuming less than 1mA of power; this transitions to CCM mode once a load is applied, where the quiescent current reaches over 20mA—ideal for applications requiring minimal static power consumption.

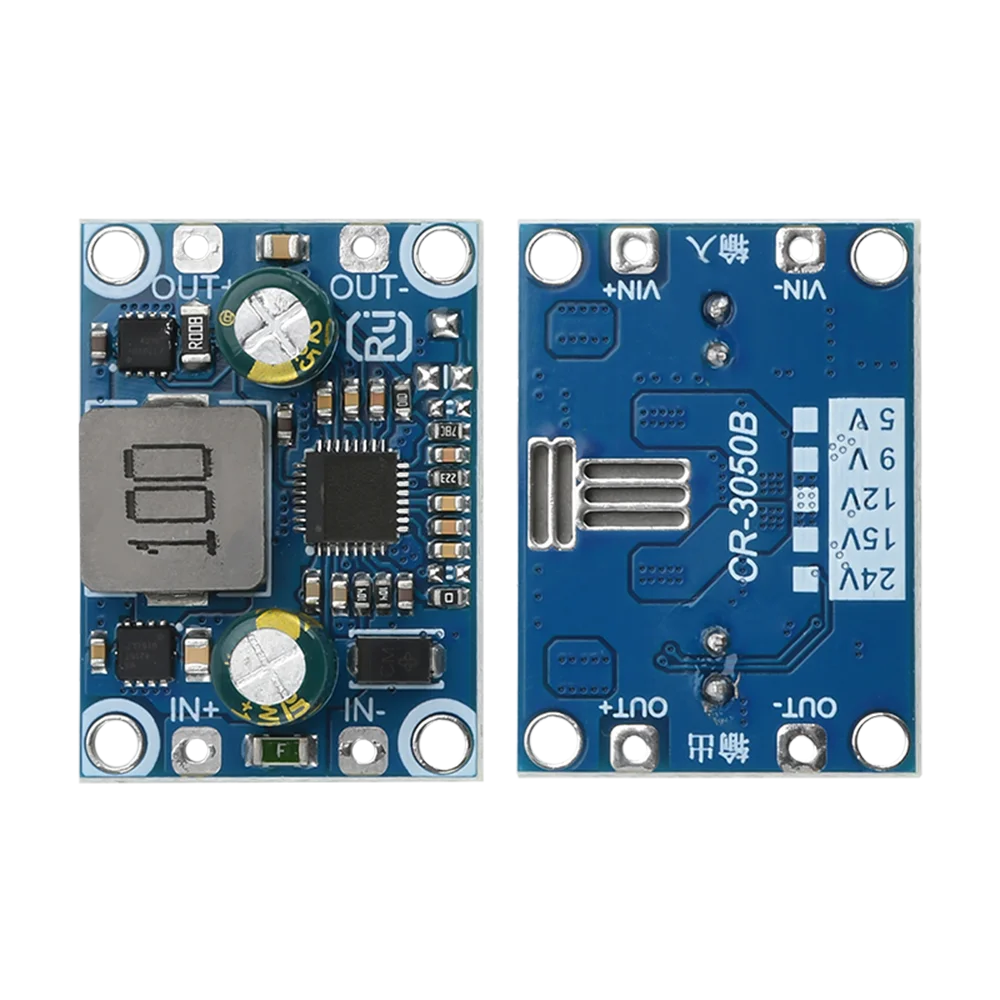

💍 Wiring Instructions:
- IN+: Connect to DC input positive terminal (3.6V - 32V)
- VIN-: Connect to DC input negative terminal (linked to the output negative)
- OUT+: DC output positive terminal
- OUT-: DC output negative terminal (linked to the input negative)
⚡ Important Considerations:
- Be mindful of the maximum current ratings (5A); exceeding these limits can lead to excessive heat generation. It’s recommended to operate with excess capacity for optimal performance.
- Ensure wiring is appropriately gauged to withstand the required current, preventing any potential overheating issues.
- Take precautions for inductive loads to protect against excessive reverse electromotive force.
- For optimal performance and to prevent overheating, it is advisable to keep continuous current below 3A unless adequate heat dissipation measures are in place.
- For reliable operation, supply voltage should ideally remain below 30V to prevent the risk of triggering the internal over-voltage protection mechanism at peaks above 32V.
