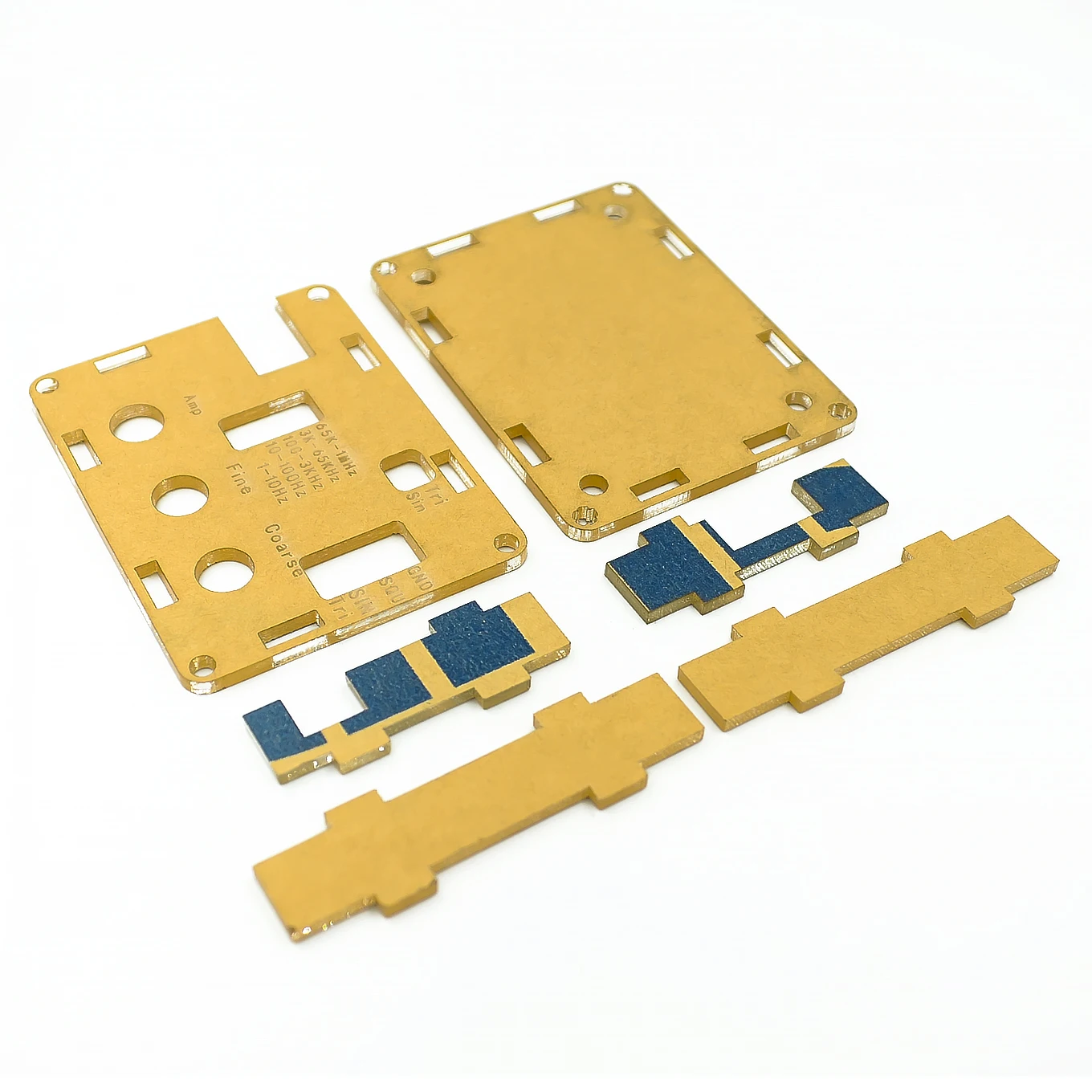

Universal Function Signal Generator DIY Kit with Adjustable Frequency and Amplitude (Case)

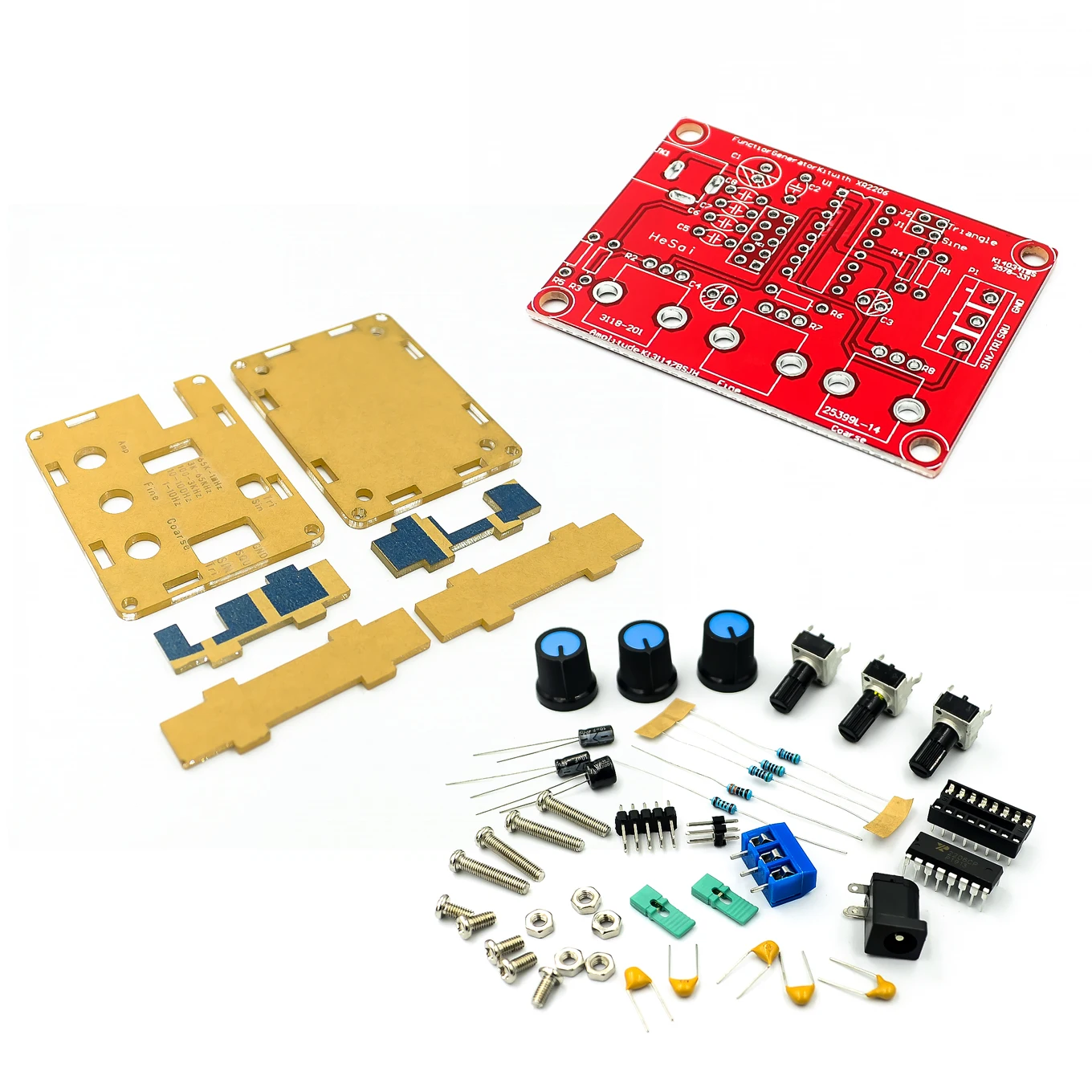

🧩 Product Overview: Experience the versatility of the 1Hz - 1MHz XR2206 Function Signal Generator DIY Kit. This comprehensive electronic kit allows you to generate three distinct waveforms: sine, triangle, and square, making it an ideal tool for hobbyists and professionals alike. With adjustable frequency and amplitude settings, you can customize signal output to fit your specific project needs.

💍 Technical Specifications: Designed to operate with a voltage supply of 9-12V DC, this signal generator is capable of rendering high-quality waveforms across a wide frequency range from 1Hz to 1MHz. The following specifics outline its capabilities:

• Sine Wave Output: 0 - 3V amplitude (at 9V DC input), with a distortion rate of less than 1% at 1kHz and flatness of +0.05dB from 1Hz to 100kHz.
• Square Wave Output: Strong output of 8V (no load) at 9V DC input, featuring a rise time of less than 50ns and a fall time of under 30ns at 1kHz, along with symmetry maintained at less than 5%.
• Triangle Wave Output: Producing a 0 - 3V amplitude (at 9V DC input) with an impressive linearity of less than 1% up to 100kHz, sustaining a current of 10mA.

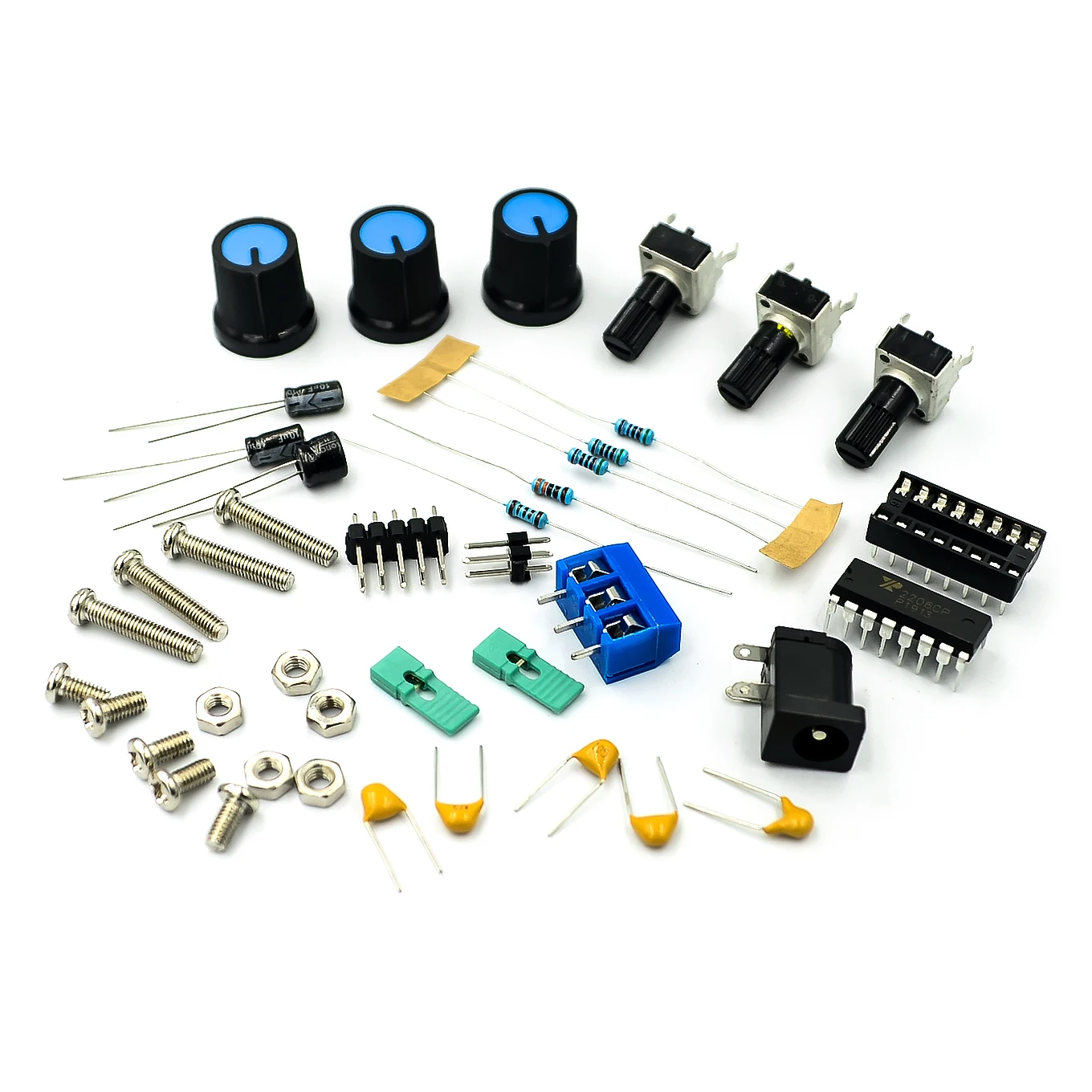

💍 Construction & Compatibility: This DIY kit is perfect for those looking to enhance their electronics knowledge or for anyone in need of a reliable waveform generator. Whether you're working on audio applications, signal testing, or educational projects, this signal generator provides a practical and hands-on approach to electronic experimentation.

⚡ User Experience: Each kit is designed with user satisfaction in mind, providing easy assembly instructions and the opportunity to understand the inner workings of signal generation. The thoughtful engineering ensures that novices and experts alike can appreciate the generator's functionality and performance.

💍 Conclusion: Elevate your electronic projects with the 1Hz - 1MHz XR2206 Function Signal Generator DIY Kit. Enjoy the freedom and flexibility it offers in wave generation while exploring the world of electronics in a dynamic and engaging way.
