📦 Compact and Versatile TFT Display Modules

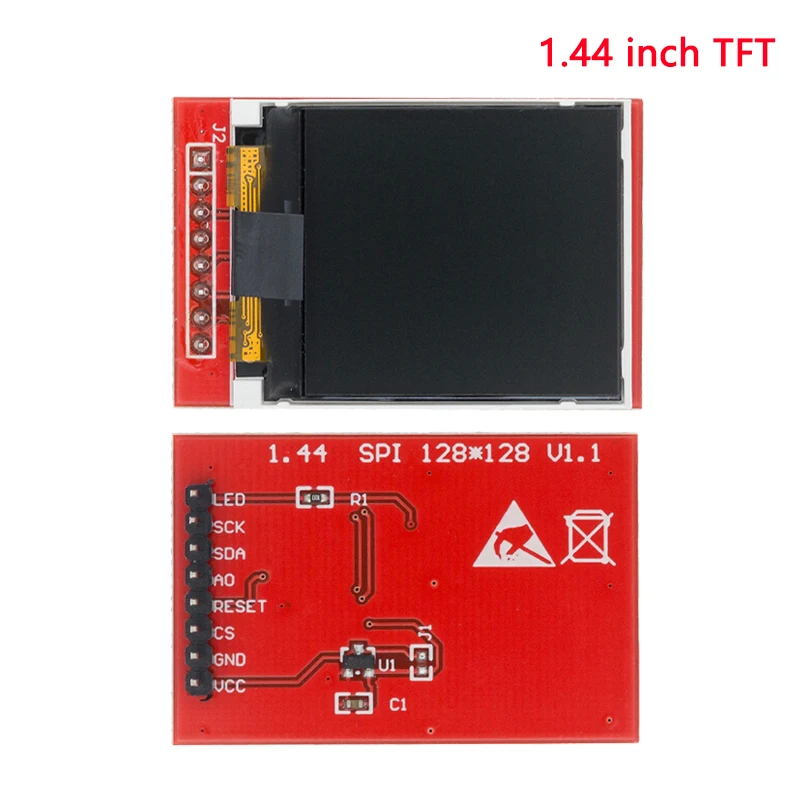

Introducing our high-quality TFT display modules available in various sizes, including 0.96 inch, 1.3 inch, 1.44 inch, 1.77 inch, 1.8 inch, 2.4 inch, 2.8 inch. Each module utilizes advanced IPS technology for vibrant, full-color displays with a rich palette of up to 65,000 colors. These displays are designed for seamless integration with microcontrollers like Arduino, making them an excellent choice for a wide range of electronic projects.
🔧 0.96 inch TFT Display Features:
- Display Mode: Normally black IPS for enhanced visibility.
- Display Format: Graphic 80RGBx160 dot-matrix for crisp imagery.
- Input Data: SPI interface ensures efficient communication.
- Drive IC: ST7735S for reliable performance.
- Dimensions: Compact outline measuring 24(W) x 30(H) x 2.8+/-0.1(T) mm.
- Resolution: 80RGBx160 dots for sharp visuals.
- Active Area: 10.8(W) x 21.7(H) mm, ideal for a variety of applications.
- Dot Pitch: 0.135(H) x 0.1356(V) mm for precise display.
- Viewing Direction: All view with consistent color accuracy.
- Operating Temperature: Wide range of -20 to 70°C for versatile use.
📦 Pin Configuration:
- 1 GND: Ground connection.
- 2 VCC: Power supply at 3.3V.
- 3 SCL: Serial clock pin for data transmission.
- 4 SDA: Serial data input for sending commands.
- 5 RES: Reset pin for initialization.
- 6 DC: Data/Command control for signal interpretation.
- 7 CS: Chip Select pin to enable the display.
- 8 BLK: Backlight control pin to adjust brightness.
🔧 1.3 inch TFT Display Features:
- Display Mode: Normally black IPS for optimal viewing angles.
- Display Format: Graphic 240RGBx240 dot-matrix, perfect for intricate designs.
- Drive IC: ST7789VW ensuring high-performance display results.
- Dimensions: Compact outline of 27.78(W) x 39.22(H) x 3.0+/-0.1(T) mm.
- Resolution: 240RGBx240 dots enhancing detail and color vibrancy.
- Active Area: 23.4(W) x 23.4(H) mm, suitable for various visual applications.
- Dot Pitch: 0.0975(H) x 0.0975(V) mm for finely detailed images.
- Viewing Direction: All view for consistent performance.
- Operating Temperature: -20 to 70°C ensuring stability in diverse environments.
📦 Additional Display Sizes: The module family expands to include 1.77 inch and 1.8 inch options, providing resolutions that cater to varying needs and applications, with intuitive pin configurations for easy connections.
💥 Whether you are building an interactive project, developing a prototype, or integrating a display for an application, our TFT modules deliver exceptional performance, reliability, and visual impact, supported by comprehensive sample programs and technical resources.
Choose the perfect size to illuminate your ideas and enhance your projects with our TFT display modules.
