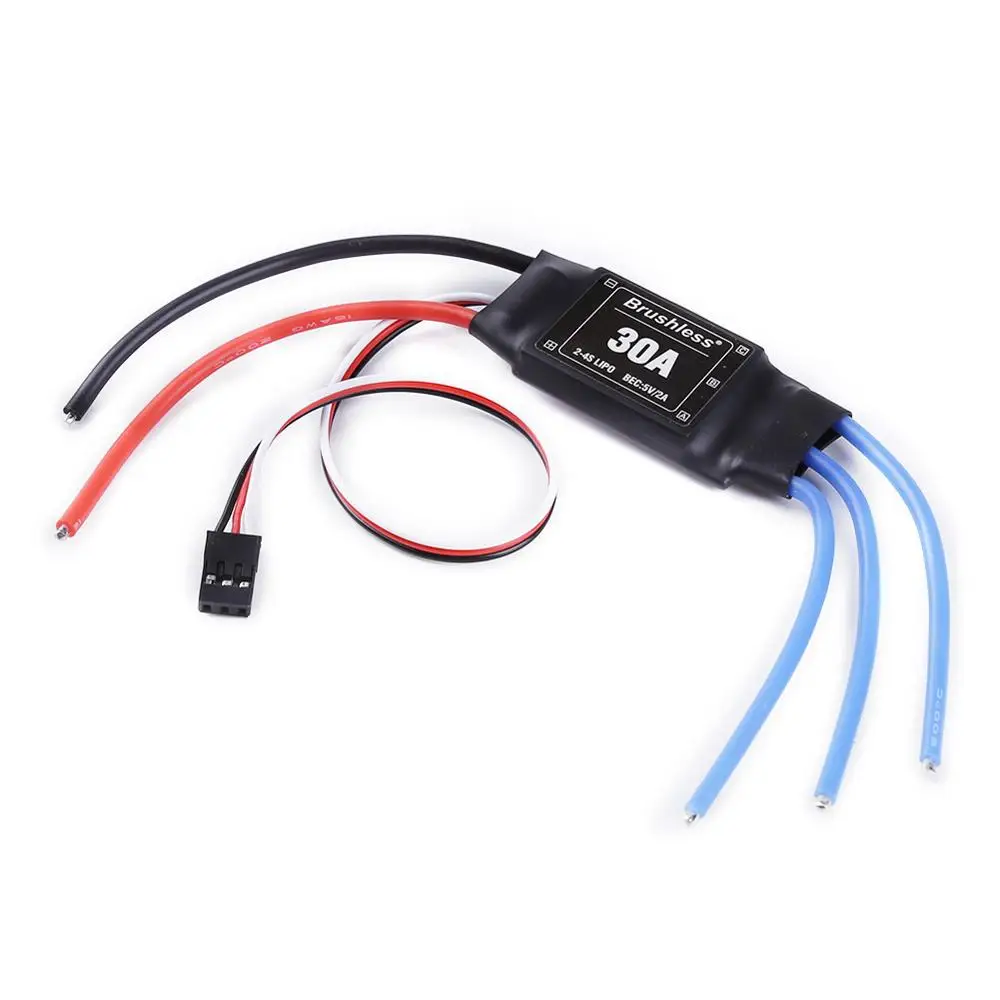

💍 XXD Brushless 30A ESC is a high-performance Electric Speed Controller specifically designed for RC multicopters, helicopters, and airplanes. It stands out due to its advanced features and robust construction, ensuring reliability and efficiency during extreme conditions.
🌿 Extreme Use: This ESC is built to handle continuous currents of 30A, with the ability to deliver an instant 35A. For short bursts, it can sustain a peak of 40A for up to 10 seconds, making it ideal for dynamic flight situations and demanding maneuvers.
⚡ Specifications: The dimensions of the XXD Brushless 30A ESC measure 45mm x 24mm x 11mm, while weighing just 25 grams, including the wiring. It supports a wide voltage range of 4V to 16V and is compatible with 2-4 cell LiPo batteries. Note that when using 4-cell LiPo, the BEC output is disabled.
💍 BEC Output: The integrated BEC provides a continuous output of 2A, with the capability of delivering 3A for short periods. This allows for powering multiple servos effectively—using 2-cell LiPo for 4-5 miniature servos, and 3-cell LiPo for 3-4 micro servos.
🧩 Protective Functions: The XXD ESC incorporates several safety features to ensure optimal operation. It automatically detects the battery type, selecting between 2-3 cell LiPo with protection voltages of 6V/9V. For NiMH batteries, it provides a sectional protection voltage of 0.8V. Additionally, it ensures a safe start by not allowing the motor to activate unless the throttle position is set correctly. With a surface temperature safety shutdown at 110 degrees Celsius and out-of-control protection that halts operation within one second of losing signal, the ESC is designed with user safety as a priority.
🛠️ Performance Description: This ESC showcases impressive speed capabilities, reaching a maximum of 210,000 rpm with 2 poles, and 35,000 rpm with 12 poles, as well as 42,000 rpm with 14 poles. It features 8KHz PWM control that allows precise speed control curves and automatic throttle adaptation for improved compatibility with various remote control devices. The design incorporates separated power supplies for both the MCU and motor, enhancing stability and performance.
💍 In summary, the XXD Brushless 30A ESC offers a powerful and reliable option for hobbyists and professionals alike, ensuring peak performance during your demanding aerial displays.
