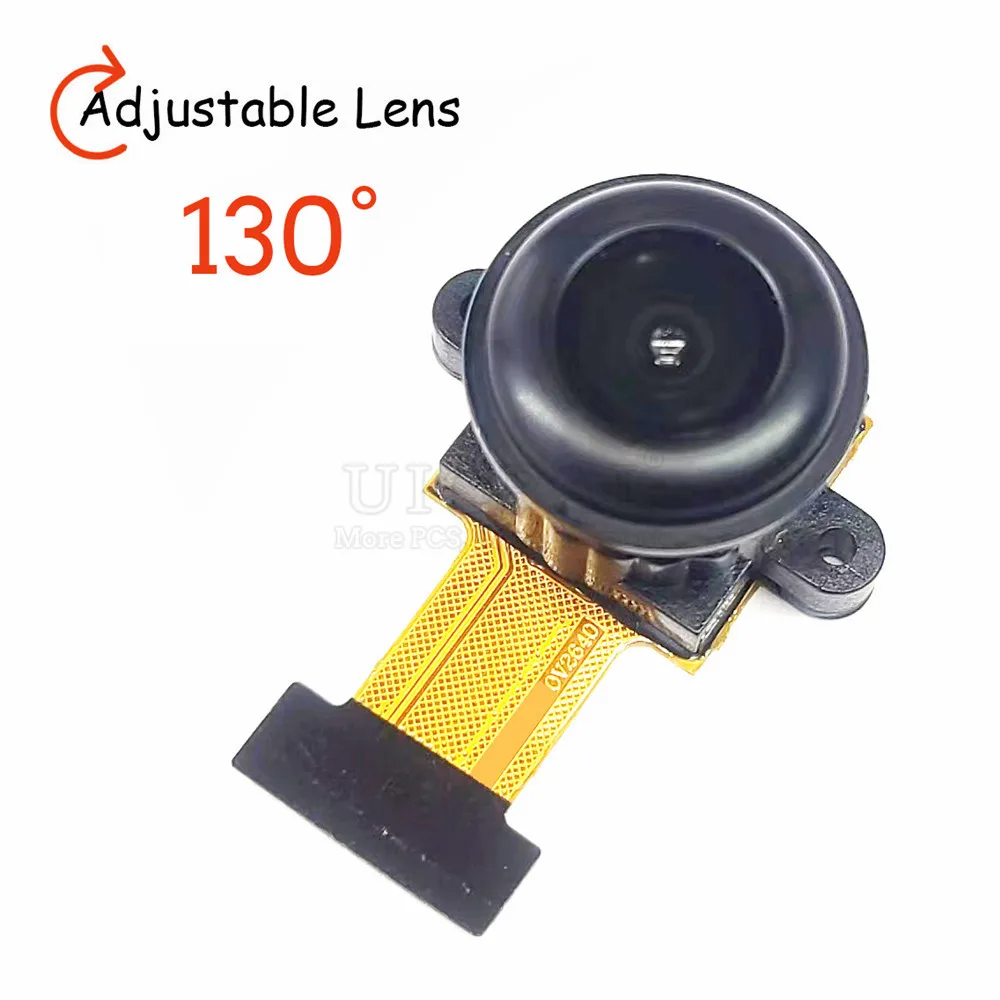

Advanced Night Vision Camera Module with Wide-Angle Lens and WiFi Connectivity (28MM 130 Degree)

📷 Introducing the OV2640 Camera Module for ESP32 CAM

📦 Enhance your projects with the New OV2640 Camera Module, an advanced imaging solution specifically designed for ESP32 CAM applications. This compact module integrates seamlessly with 2.4G Wi-Fi technologies to bring high-quality video and image capturing capabilities to your IoT initiatives, surveillance systems, or robotic projects.

🔧 The OV2640 image sensor boasts a remarkable resolution of 2 million pixels (1632x1232 pixels), providing exceptional image clarity. Its innovative design ensures low power consumption, making it ideal for embedded systems. Equipped with a range of configurable features, it operates using the SCCB bus control, allowing for versatile output options including whole frame, sub-sampling, and windowing formats.

⚡ With a maximum frame rate of 15 frames per second, this module supports a variety of image resolutions such as UXGA, SXGA, VGA, QVGA, QQVGA, CIF, and QCIF, adapting to your specific project needs. Users can tailor image quality parameters like gamma curve, white balance, saturation, and chroma through programmable settings available via the SCCB interface.

🔍 The OmniVision sensor technology enhances image quality and ensures sharp, stable colors by minimizing optical and electronic artifacts such as fixed-pattern noise and tailing. With high sensitivity levels, the OV2640 is particularly well-suited for low-light environments, allowing you to capture clear images even in challenging conditions.

🔧 Key Features:

• Small form factor compatible with low voltage embedded applications (IO voltage: 1.7V-3.3V, analog voltage: 2.5-3.0V)
• Support for multiple output formats including RawRGB, RGB (GRB4:2:2, RGB565/555/444), YUV (4:2:2), and YCbCr (4:2:2)
• Advanced functions for automatic exposure control, gain control, white balance, and black level calibration enhance usability
• Image quality enhancements such as color saturation control, edge enhancement, noise reduction, and dead pixel compensation provide professional-grade image clarity
• Operating temperature range of -30℃ to 70℃, with stable functionality between 0℃ to 50℃
• Excellent dynamic range of 50 dB and a signal-to-noise ratio of 40 dB ensures clear imaging across diverse lighting conditions
• The module supports image zoom and lens loss compensation, adding versatility to your imaging applications

🔍 Transform your projects with the OV2640 Camera Module—a reliable and powerful component that brings your creative concepts to life.
