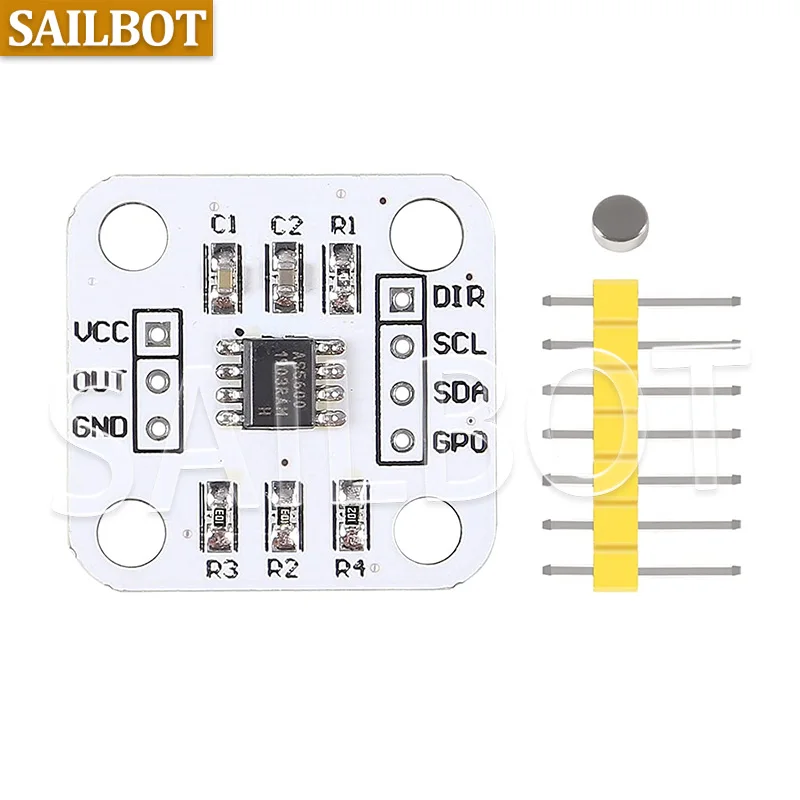

🛠️ AS5600 Magnetic Encoder: High Precision Angle Measurement Sensor Module
🛠️ Introducing the AS5600 Magnetic Encoder, a state-of-the-art sensor module designed for high-precision non-contact angle measurement through magnetic induction. This cutting-edge device is an essential tool for applications requiring accurate rotational position sensing.
🔧 Key Features:
- Non-contact magnetic induction technology ensures minimal wear and tear as well as high durability.
- Offers exceptional precision with a resolution of 12 bits, making it suitable for a range of applications where accuracy is paramount.
- Supports multiple output modes, including IIC, PWM, and analog voltage output, providing versatility to integrate into various systems effortlessly.

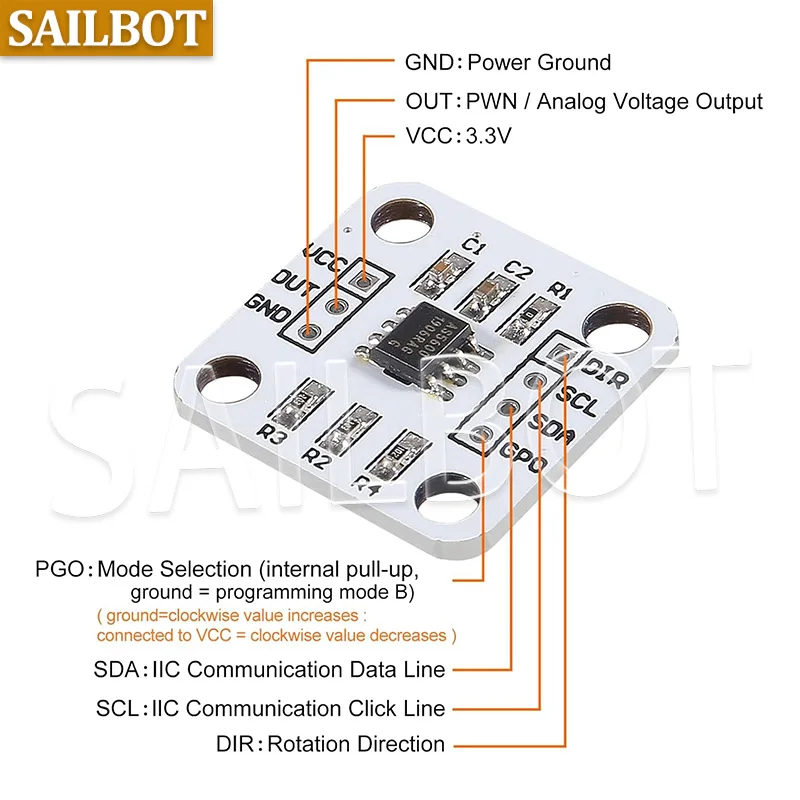

🛠️ Electrical Parameters:
- VCC: Operates at 3.3V, ensuring compatibility with many low-power applications.
- GND: Power ground connection for stable and reliable operation.
- Out: Provides a choice between PWM or analog voltage output for flexible data interfacing.
- Dir: Direction of rotation is indicated; grounding the pin results in an increase in clockwise values, while connecting it to VCC indicates a decrease in clockwise values.
- SCL: Serves as the IIC communication clock line for synchronized data transfer.
- SDA: Acts as the IIC communication data line, facilitating robust interaction between devices.
🧲 Ideal for robotics, automation, and positioning applications, the AS5600 Magnetic Encoder combines robustness with high functionality, ensuring reliable performance in various environments.
