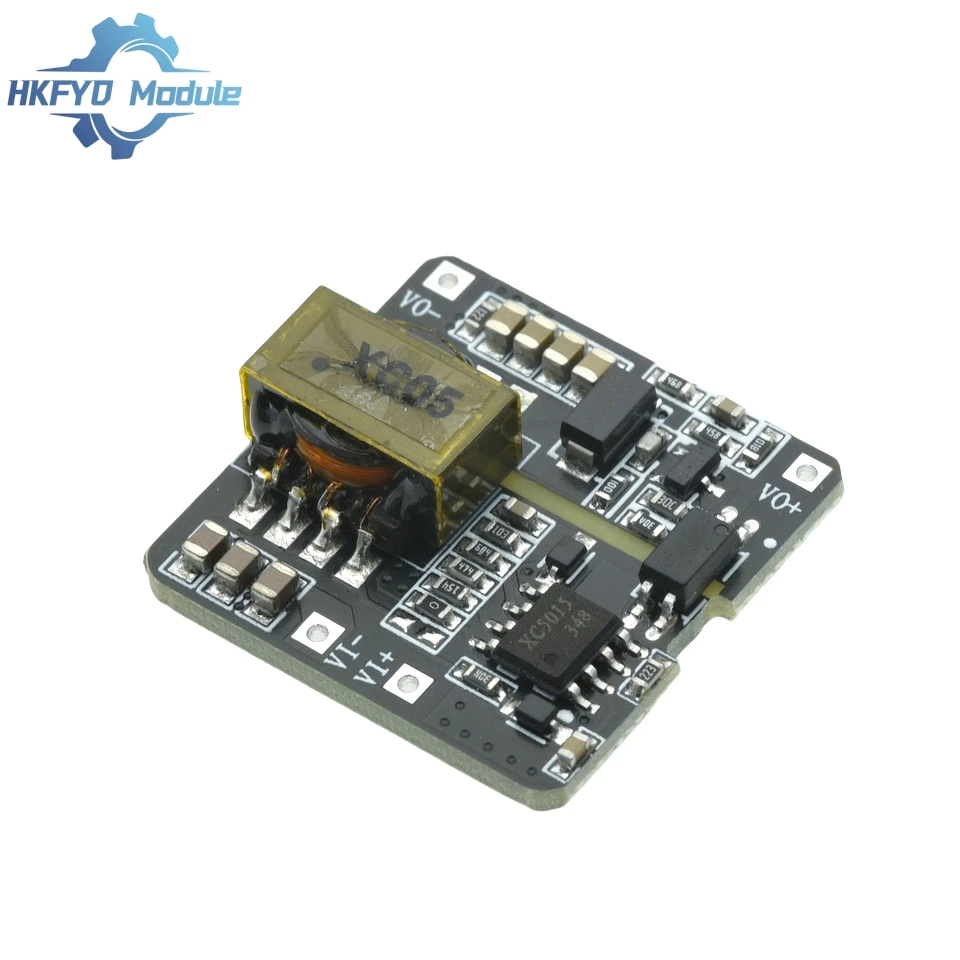

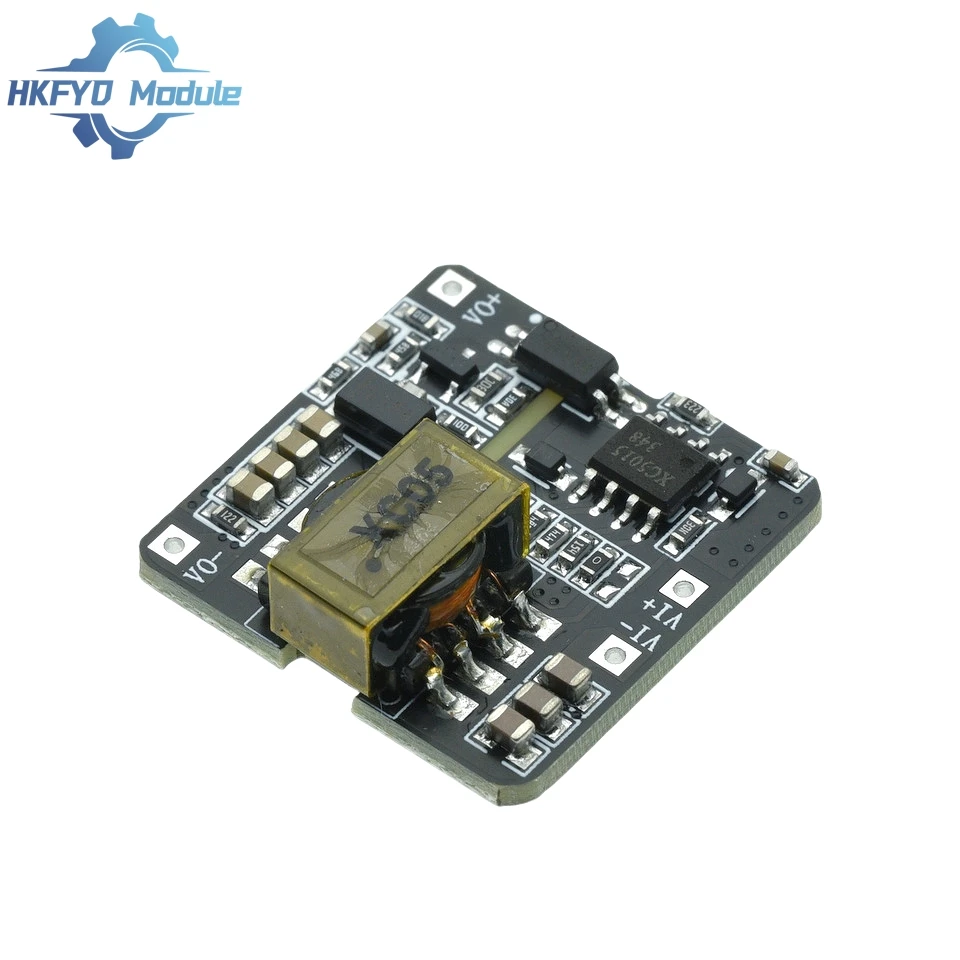

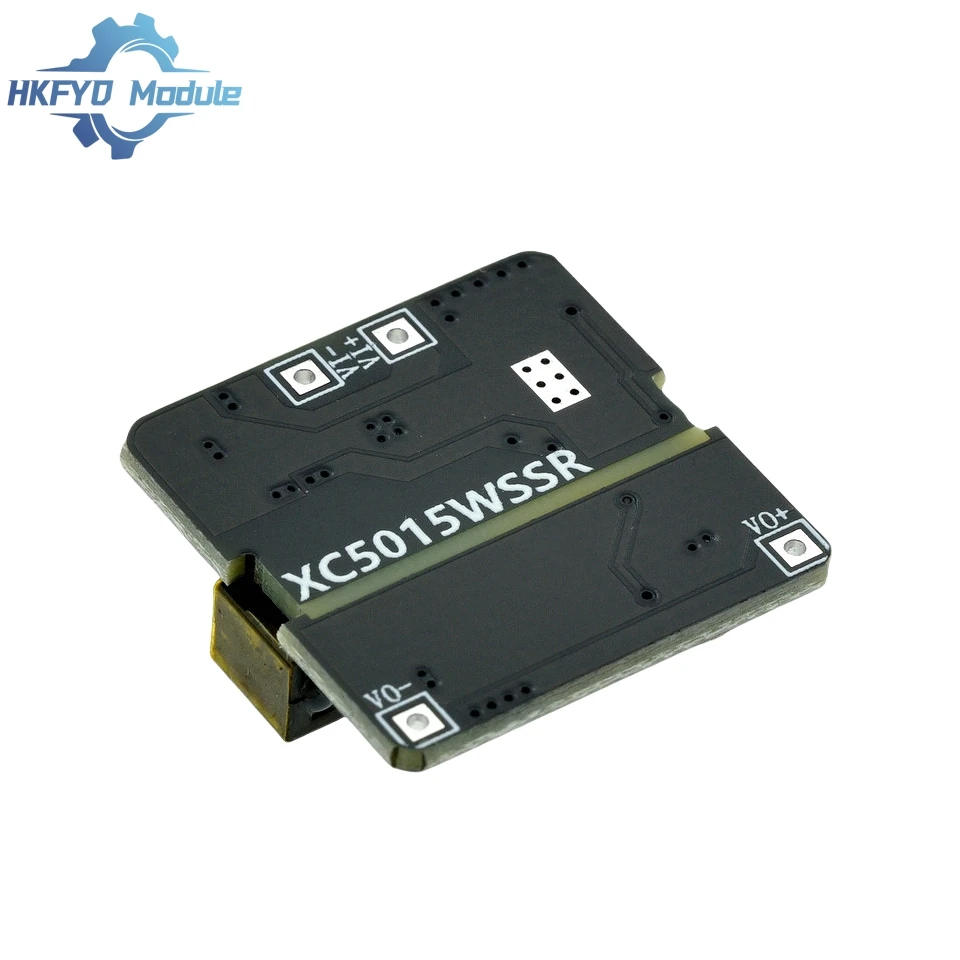

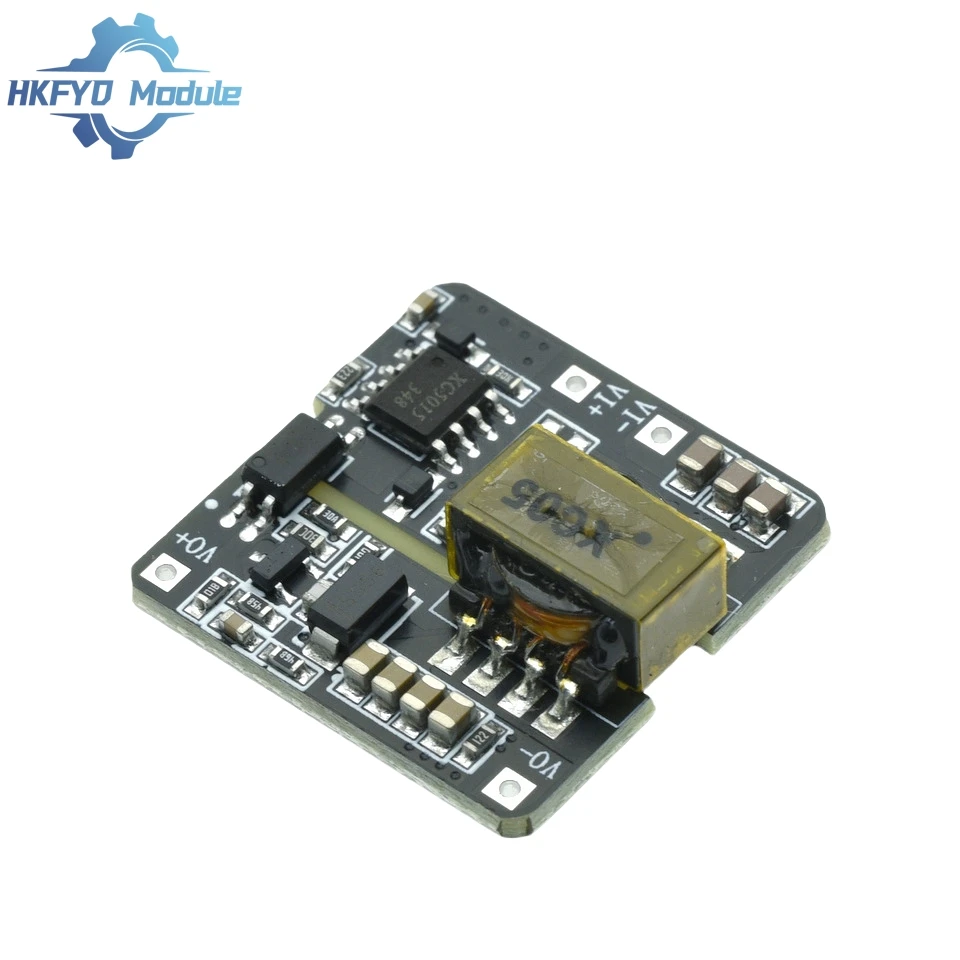

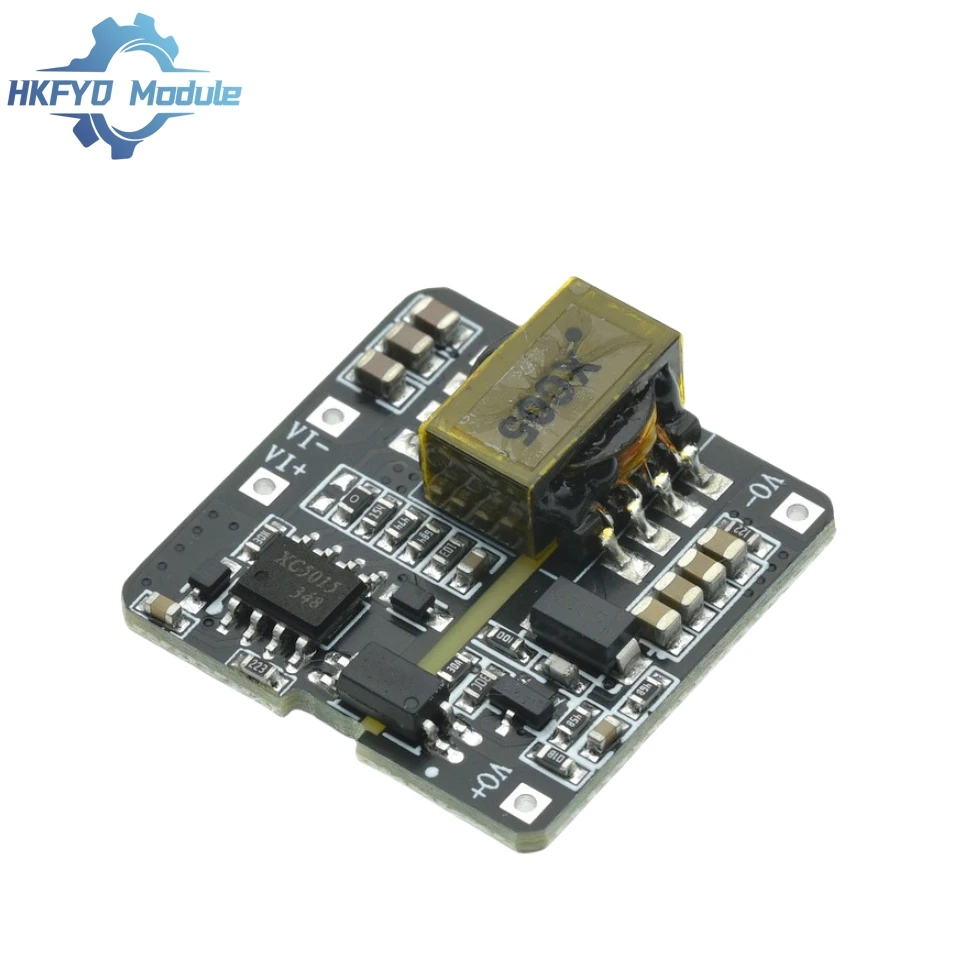

Advanced Isolated DC - DC Power Module with Wide - Voltage Input and High - Precision Output (9 - 36v input 12v)

⚡ Product Overview:
The XC5015 Isolated DCDC Power Module is a sophisticated power solution designed to cater to a wide range of applications. With its expansive input voltage range of 9-36V, it is ideal for demanding environments requiring flexibility and reliability. This module supports various topologies, including Flyback, Boost, and Buck configurations, as well as multiple output voltage feedback methods such as SSR, PSR, and resistor divider techniques.

💍 High Performance:
Operating at a high frequency that can reach hundreds of kHz, the XC5015 features an integrated output voltage sampling circuit capable of functioning efficiently in both Continuous Conduction Mode (CCM) and Discontinuous Conduction Mode (DCM). Notably, it requires a minimal voltage sampling time of only 400nS, which greatly enhances the overall efficiency of power management. Additionally, the module is equipped with an advanced loop compensation circuit that delivers fast dynamic response, ensuring exceptional stability and performance.

🧩 Key Features:
- Power Rating: Rated for 6W with a maximum output of 10W, making it suitable for a variety of applications.
- Input Voltage Range: Wide range of 9V to 36V (4:1), offering great versatility.
- Efficiency: High efficiency of up to 88%, contributing to reduced energy waste.
- No-load Power Consumption: Impressively low at just 0.12W, optimizing energy use in various scenarios.
- Isolation Voltage: Robust isolation voltage rating of 1500VDC, ensuring safety in applications where isolation is critical.
- Protection Features: Built-in protections for undervoltage at the input, overvoltage, overcurrent, and short circuits enhance operational safety and reliability.
- Operating Temperature: Designed to perform effectively in harsh conditions with a temperature range of -40℃ to +85℃, making it suitable for industrial settings and other extreme environments.

🪶 Design Considerations:
The XC5015 is tested based on the recommended application circuit to ensure dependable performance right out of the box. For those requiring even lower input and output ripple, it is advisable to increase the values of the external input and output capacitors (Cin and Cout) or to select capacitors with lower equivalent series resistance (ESR), all while staying within the product's maximum capacitive load specifications.

🧲 EMC Solutions:
To achieve optimal electromagnetic compatibility (EMC) performance, it is recommended to follow specific circuit designs that enhance the module's resilience against electromagnetic interference, thereby maintaining reliable operation in various environments.
