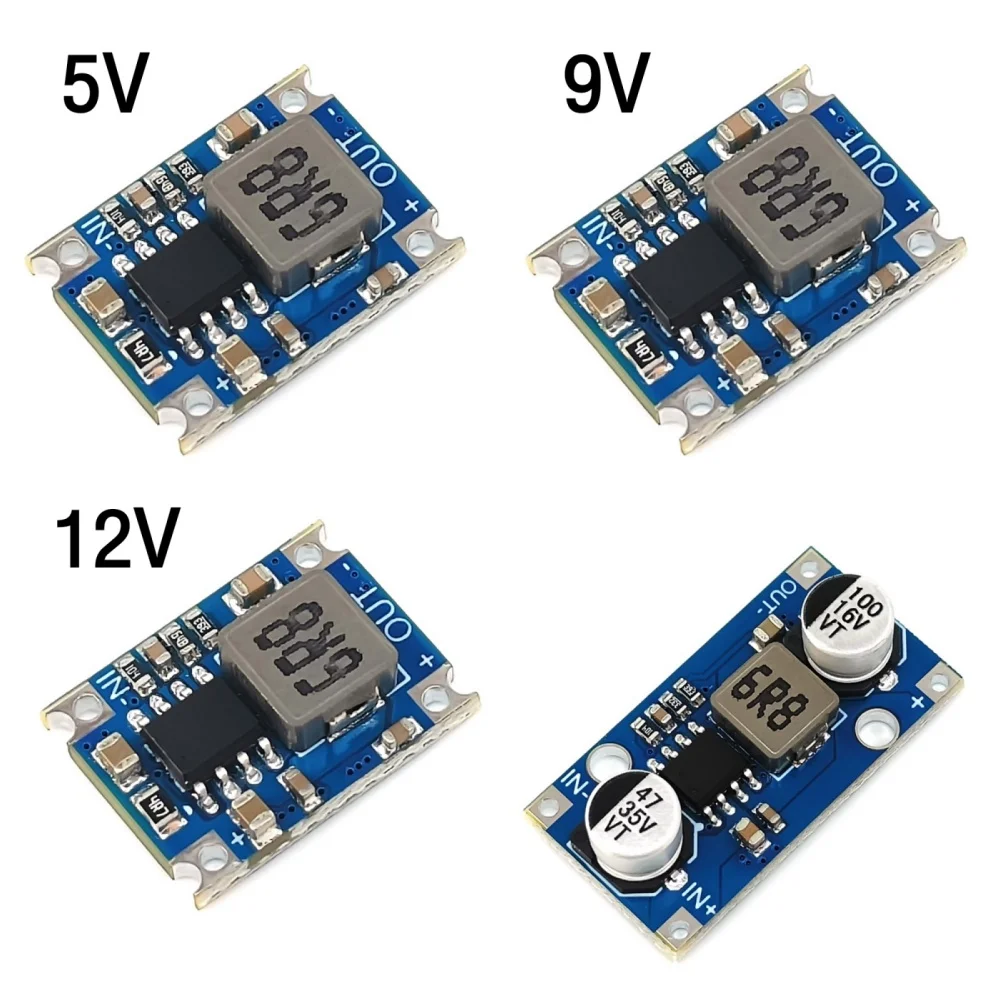

💍 Introducing the DC 30V to 5V Buck Converter Mini Voltage Regulator Board, a highly efficient and reliable solution for powering your low-voltage applications. This board is designed to step down input voltages ranging from 6V to 30V to a stable output of 5V, 9V, or 12V, with a maximum output current of 3A.
🔧 Key Features:
- Advanced Technology: The module employs imported chips that deliver low static power consumption, ensuring efficient operation and reduced energy waste.
- High Efficiency: With a conversion efficiency of up to 93%, this buck converter maximizes the power delivered to your devices while minimizing losses during the voltage transformation process.
- Low Ripple Output: Operating at 500kHz, the module produces a low-ripple output, making it ideal for applications that require clean and stable voltage supplies.
- Robust Protection Mechanisms: Integrated short-circuit protection and built-in over-temperature protection ensure that the module operates safely, shielding both the board and connected devices from potential damage.
- Compact and Versatile Design: The module's meticulous design and quality PCB manufacturing allow it to fit into tight spaces, while still offering strong performance for a variety of applications.
🧩 Product Specifications:
- Input Voltage: DC 30V (maximum)
- Current Output: Up to 3A
- Quiescent Current: 0.6mA
- Operating Temperature: -40°C to +85°C

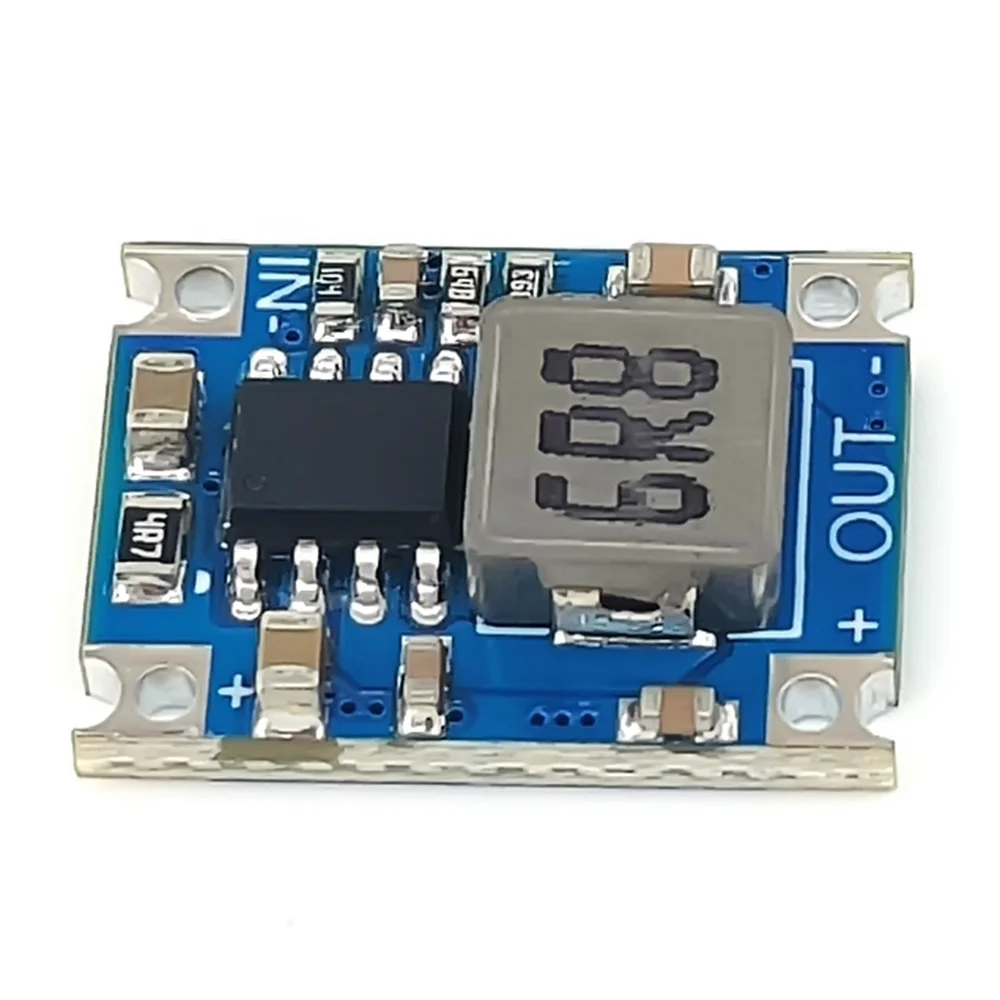

- Dimensions: Short version: 17mm × 13mm × 4.6mm; Long version: 28mm × 15mm × 5.7mm
- Hole Diameter: 2.6mm
💍 Main Applications: This versatile module is perfect for low-voltage step-down operations, powering digital devices, microcontroller units (MCUs), and ripple-sensitive circuits. It can also handle slightly higher voltage step-down tasks with ease.

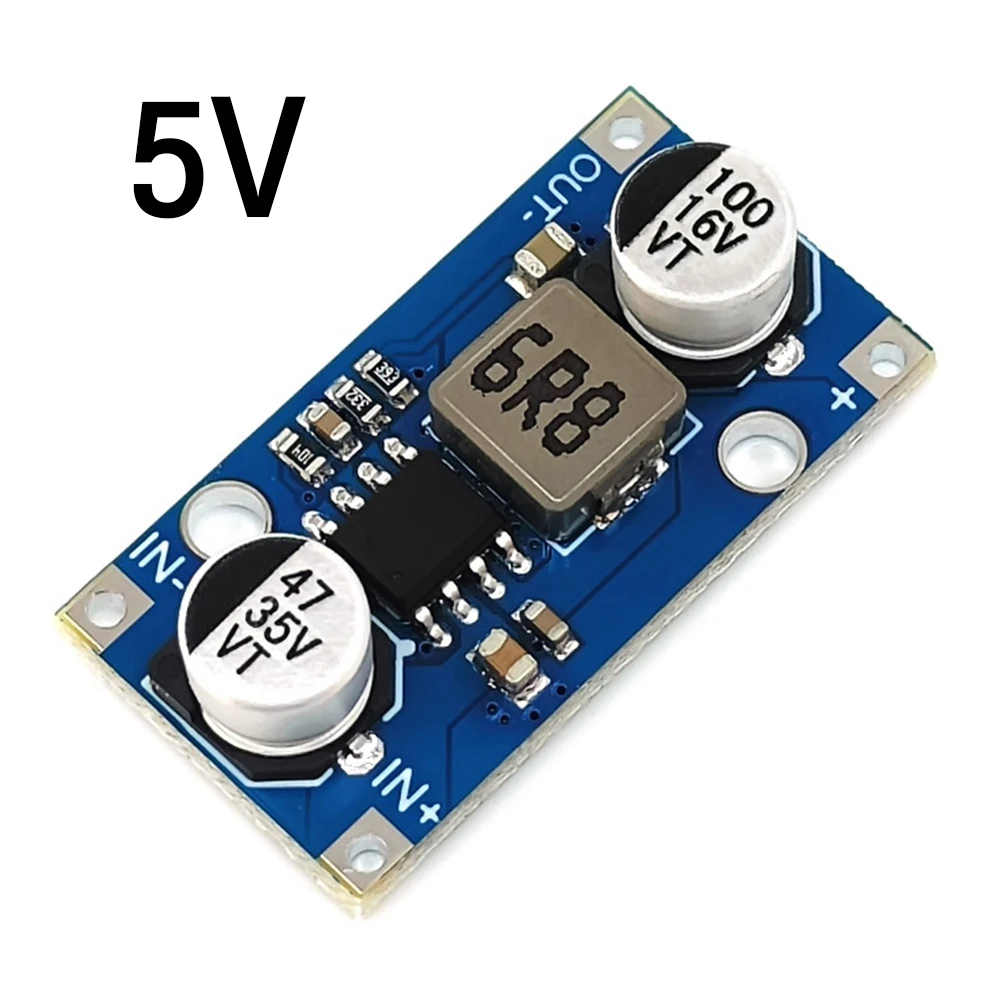

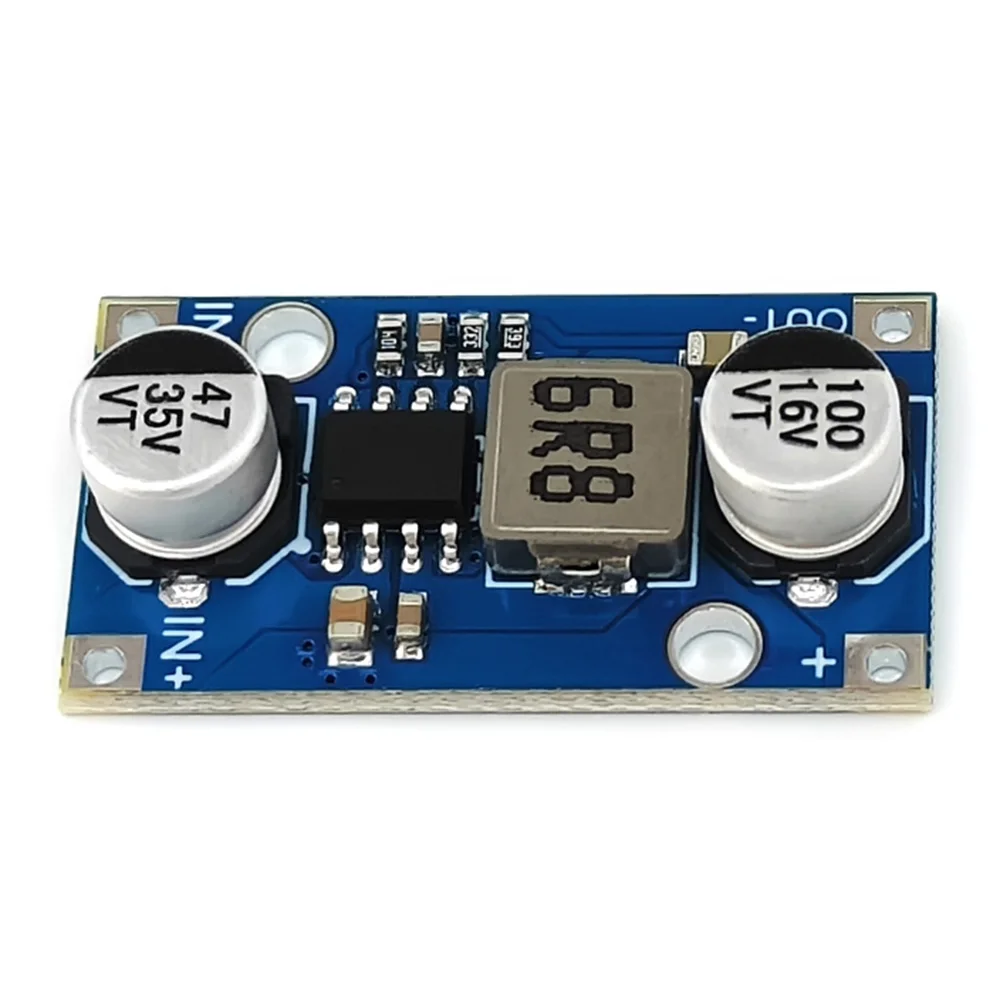

🎯 Module Comparison: While the short and long versions of the board are essentially similar in functionality, the longer version offers slightly improved ripple performance and better heat dissipation due to its increased size. Choose the version that best fits your project's specific requirements.
Usage Guidelines:
- Ensure that the input voltage exceeds the desired output voltage by at least 1V.
- Always disconnect power before making connections to avoid damage to the module.
- Use adequately thick wiring to accommodate the current without overheating.
- When operating at higher power levels approaching the maximum current rating, implement measures for heat dissipation.
- Avoid exceeding a continuous current of 5A without additional cooling measures to prevent thermal shutdown.
😎 Discover the reliability and efficiency of our DC 30V to 5V Buck Converter Mini Voltage Regulator Board and enhance the performance of your electronic projects today!
