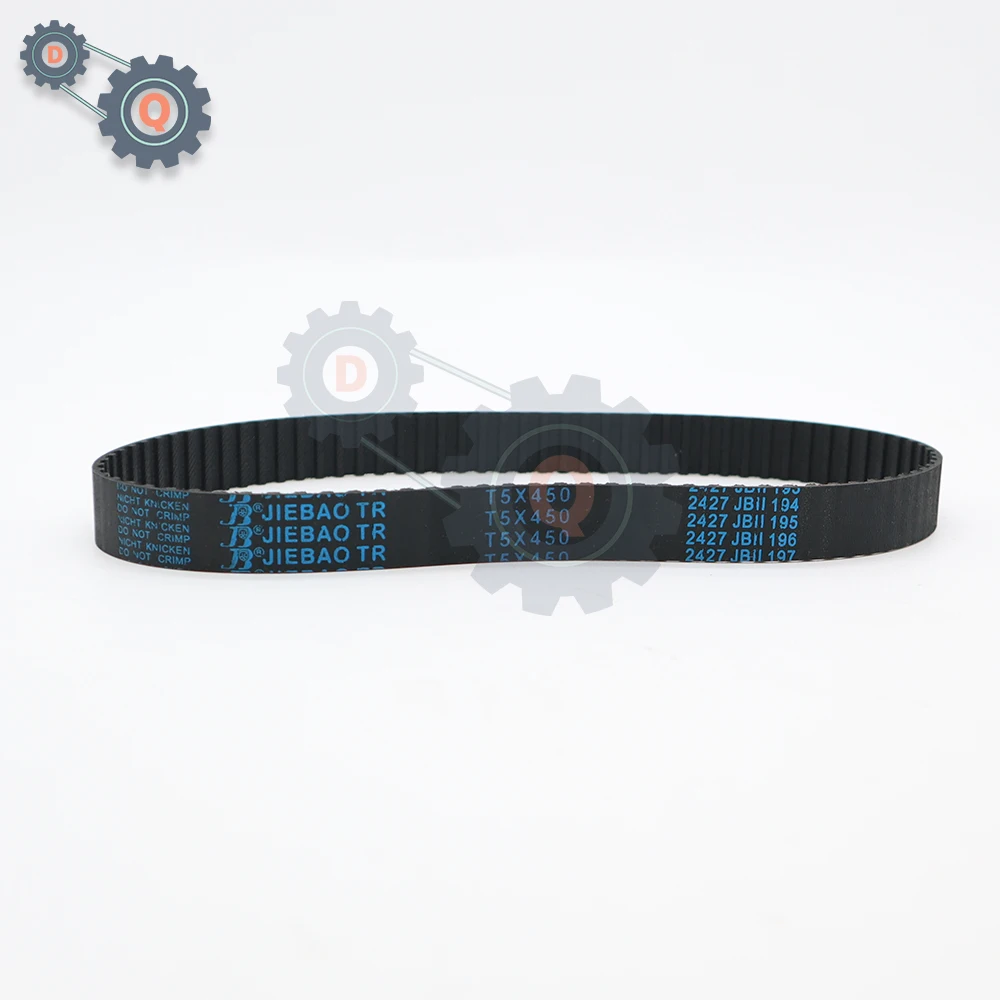

Versatile Rubber Closed Loop Synchronous Belt - T5 Timing, Various Lengths and Widths - Belt width 10mm

🪞 Product Overview: The T5 Timing Belt is a precision-engineered synchronous belt, designed specifically for demanding applications, such as CNC machinery. With a robust rubber construction and a stable glass fiber core, this belt ensures enhanced performance, durability, and reliability in motion transfer tasks.

Specifications:

• Belt Length: Ranges from 135mm to 475mm, providing versatility for various machine configurations. The belt length corresponds to the number of teeth multiplied by the tooth pitch of 5mm.

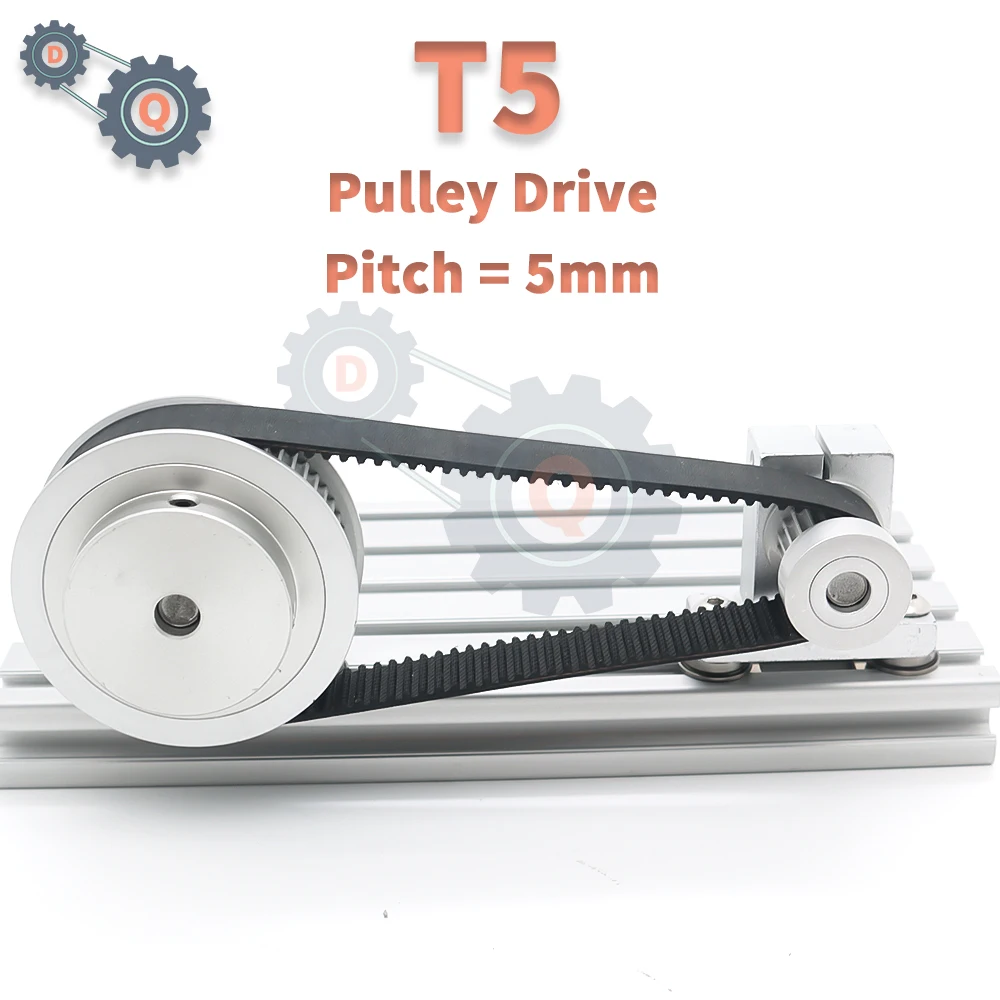

• Belt Tooth Pitch: 5mm, designed for efficient meshing with corresponding gears or pulleys.
• Belt Width Options: Available in 10mm, 15mm, 20mm, and 25mm widths to accommodate varying load requirements and application needs.

🏆 Material Composition: The T5 Timing Belt is constructed with high-quality materials that contribute to its exceptional performance:

• Neoprene Plane: Offers excellent oil resistance, heat resistance, and aging resistance, ensuring longevity in diverse environments.
• Glass Fiber Core: Provides superior tensile strength and low elongation properties, allowing for greater bending resistance while maintaining consistent performance over time.
• Nylon Cloth Tooth Surface: Enhances wear resistance and shear strength, ensuring reliable engagement with pulleys and gears.

🪞 Why Choose Our T5 Timing Belt? Our T5 Timing Belts are meticulously tested for quality and performance, allowing you to trust in their reliability in critical applications. Suitable for a wide range of industrial settings, these belts are an ideal choice for those looking for durable and efficient motion solutions.

💍 Explore Our Offerings: In addition to the T5 Timing Belt, our store offers a comprehensive selection of synchronous belts and wheels. Each product is categorized by model and length for easy navigation. If you're searching for specific requirements not met by our current offerings, we are committed to helping you find the right solution to ensure your project’s success.
