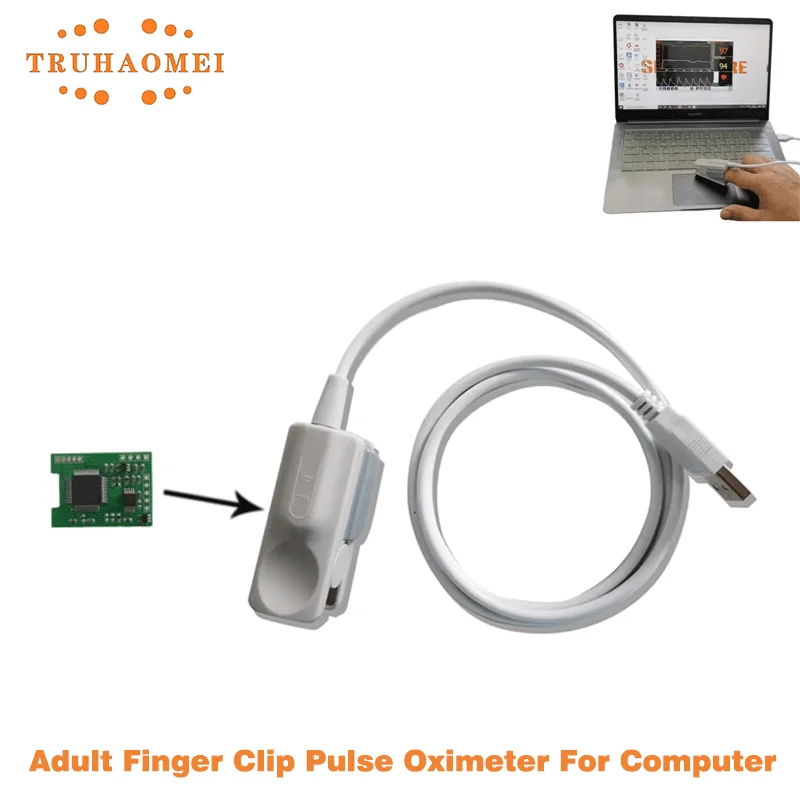

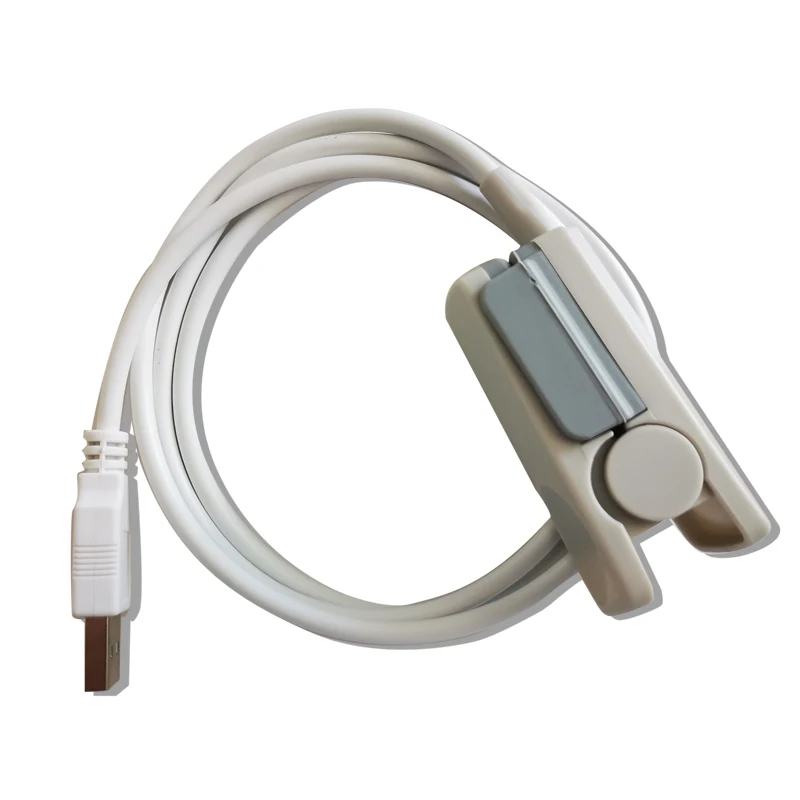

Portable USB Finger Clip Pulse Oximeter with Software Integration (Adult Finger Clip)

Product Overview:

🛠️ The PC-Based SpO2 Sensor is an innovative, portable pulse oximeter designed for adults. This advanced device offers precise monitoring of pulse oxygen saturation (SpO2) and pulse rate through a convenient finger clip attachment. The oximeter connects effortlessly to a PC via USB and is accompanied by dedicated software that allows users to visualize and analyze their health data in real-time.

Model Information:

Model: ST-T130-01
Signal Output Mode: USB / USB-TTL (CH340 chip)

🪶 Software Capabilities:

⚡ The accompanying SpO2 software is user-friendly and supports multiple languages including Chinese, German, English, French, Italian, Dutch, Russian, and Spanish. Users can design and personalize their own software interface for optimal usability.

🔧 Key Features:

• Real-Time Monitoring: The device provides live updates of SpO2 levels and pulse rates, ensuring immediate feedback on the user’s health status.
• Trend Tracking: Users can monitor and display trends in health metrics over time, facilitating informed healthcare decisions.
• Data Management: Save up to 2 hours of data for later review, with outputs available in formats suitable for Excel analysis.
• Multi-User Capability: The software enables simultaneous display of parameters for up to four users, making it ideal for group settings.

💍 Usage Instructions:

🔘 To begin monitoring, simply double-click the Spo2.exe file to start the real-time program. The interface includes control buttons for selecting displays and alarm settings. Users can easily navigate through the displays, start new sessions, and adjust settings to tailor the experience to their needs. The software provides options for saving session data and reviewing previous records, ensuring straightforward user experience.

Data Review:

⚡ Users can connect their devices to a computer for an easy data transfer process, allowing for extensive analysis of health metrics. The review program’s interface supports efficient data navigation, and outputs can be printed for physical records.

🏆 Performance Specifications:

💍 Testing Range:
Pulse Rate: 30 – 250 bpm
SpO2: 0 – 100%
Accuracy:
Pulse Rate: ±2 bpm under normal conditions, ±3 bpm during exercise or weak perfusion
SpO2: ±2% (70-100%), with values below 70% being unspecified

Operating Environment:

🏆 Optimal performance is ensured in varied conditions:
Temperature: 0°C to 45°C (working), -20°C to 60°C (storage)
Humidity: 30% to 95% (working), 10% to 100% (storage)
Elevation: -500 to 5000 meters (working), -500 to 10000 meters (storage)

Electrical Specifications:

Input Voltage: 5V ±0.5V
Standby Current: Approx. 60mA
Testing Current: Approx. 100mA

🔧 Additional Features:

🧩 This pulse oximeter is designed with user comfort in mind, utilizing biocompatible and latex-free materials, ensuring safety for users of all ages. The device is crafted to meet extensive quality standards including UL and Rohs compliance, making it reliable and ready for clinical settings or personal monitoring. It comes with a 12-month warranty, accompanied by assurances of compatibility with existing monitoring systems.

🧩 Customized solutions and OEM/ODM services are available to meet a broad range of needs.

🛠️ This PC-Based SpO2 Sensor is your gateway to efficient and precise monitoring of vital signs, empowering users to take charge of their health with confidence.
