Ultrasonic Mist Maker Atomizer Accessory Kit with Type-C USB (Type-C)

Product Overview:

🪶 The DC 5V Ultrasonic Mist Maker is an innovative device designed to provide a soothing mist effect for various settings, enhancing air quality and creating a calming atmosphere. With a compact design, this atomizer operates efficiently while ensuring ease of use and functionality.

🔧 Key Features:

🛡️ Durable Construction: Built with high-quality FR-4 epoxy board material and original electronic components, this device is engineered for longevity. Its thoughtfully designed circuit board guarantees reliability over time, making it a dependable addition to your humidification solutions.

🧠 Advanced Type-C Connection: The upgraded Type-C interface provides versatile compatibility, ensuring you can easily connect and power the mist maker. This modern connection enhances the device’s performance, delivering high output mist with stable operation.

🧩 Versatile Spray Options: The mist maker offers two spray modes—continuous and intermittent—allowing you to customize the misting experience based on your needs. Activate continuous spray for an uninterrupted flow or switch to intermittent mode, which operates in cycles to efficiently manage humidity levels.

🧩 Automatic Safety Features: Safety is a priority with the built-in automatic timed shutdown feature. After 4 hours of continuous operation, the device will fortify its protection by shutting down, requiring a simple press of the power button to restart.

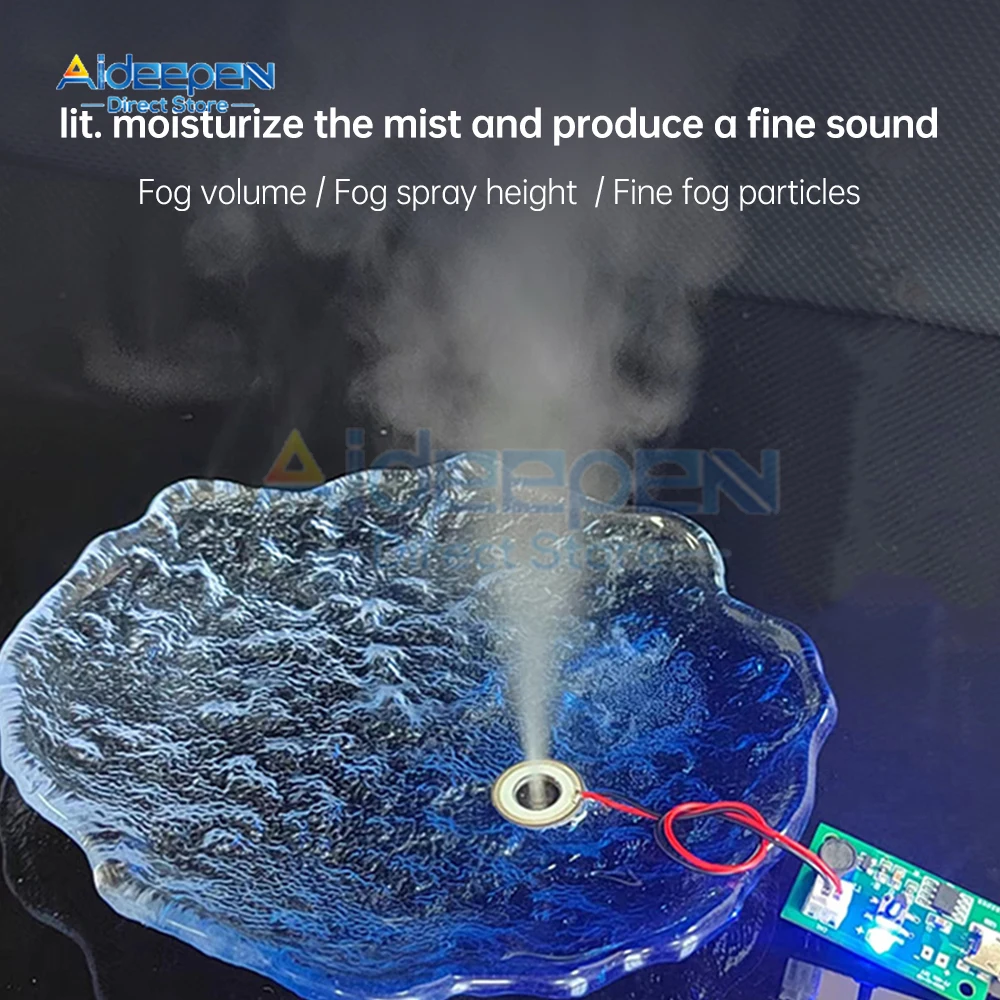

💥 Micron Atomization Technology: Experience micro-level atomization as the machine transforms water into fine droplets ranging from 4-6 micrometers. This process disperses moisture evenly into the air, promoting better hydration and air quality.

Specifications:

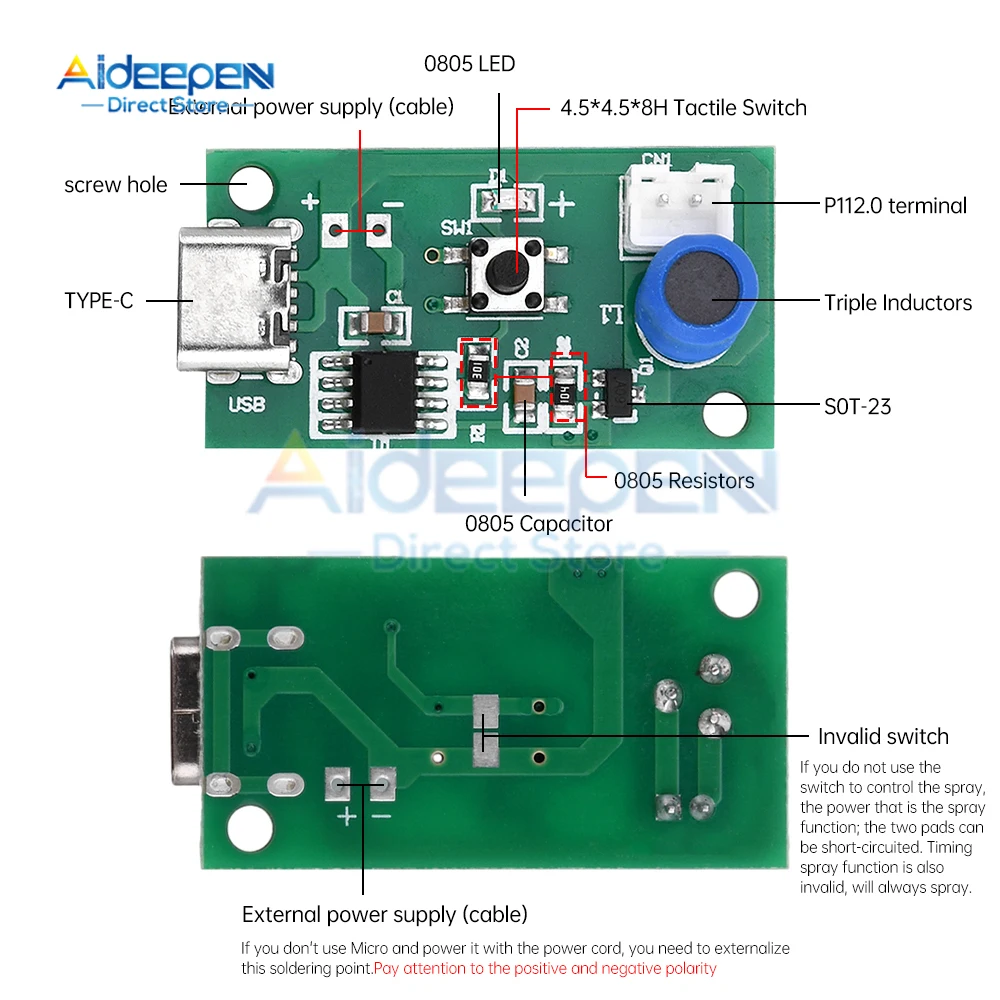

• Driver Circuit Board: 1.2mm FR-4 material, rated at DC 5V and 300mA, with a power output of 1.5-2W.
• Resonant Frequency: 108-110KHz enhancing the atomization process.
• Atmospheric Lighting: Features monochromatic lights for ambiance.
• Microporous Atomization Plate: Comprised of a piezoelectric ceramic ring and durable 304 stainless steel; has 1100 micropores for optimal mist production.

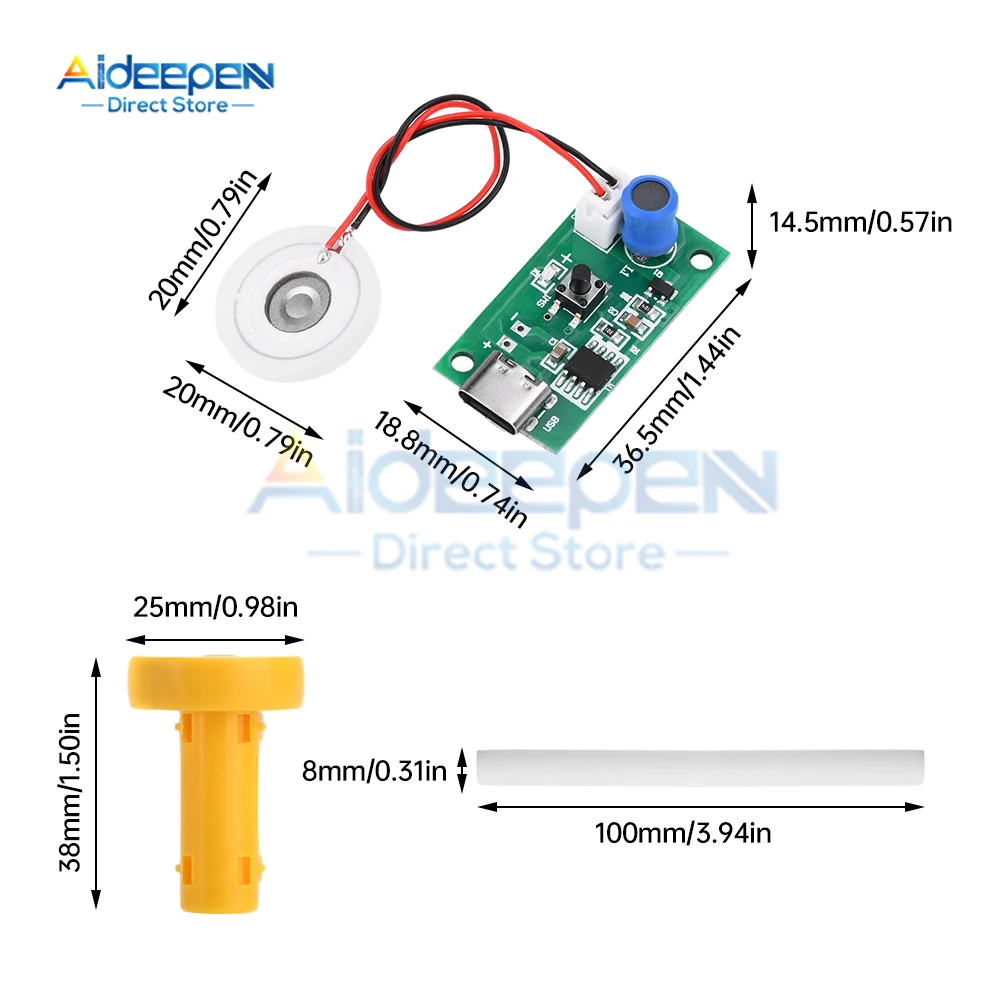

• Specifications: With a steel plate diameter of 16mm and an outer silicone ring diameter of 20mm, the components are compact yet effective.

🛡️ Operating Modes:

⚙️ 1. Continuous Spray Mode: Initiate by pressing the switch once, with an LED indicator signaling operation. This mode continuously sprays for 4 hours, followed by automatic shutdown.

💍 2. Intermittent Spray Mode: Activated by pressing the switch again, the LED will flash, indicating a cycle of 10 seconds of spray followed by a 5-second pause, operating for up to 12 hours before securing automatic shutdown.

3. Shutdown: Pressing the switch a third time will turn the device off.

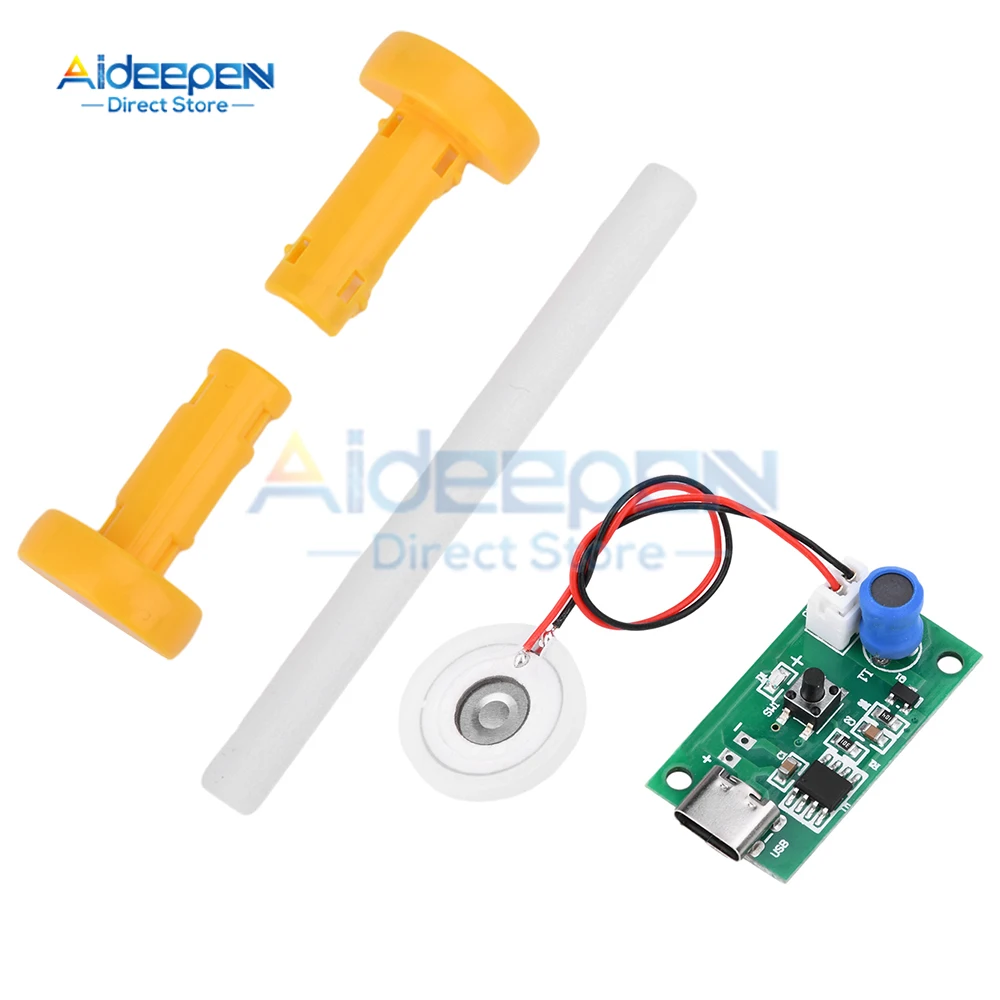

📦 Package Contents:

• Circuit Board x1
• Nebulizer x1
• Support x1
• Absorbent Cotton Core x1

⚡ Important Notes:

• Modification of the circuit board is strictly prohibited.
• Avoid exceeding the device’s input power specifications.
• The circuit board must remain dry and protected from moisture.
• Must be paired with a compatible atomizer for effective operation.
• Variations in color may occur due to batch differences in components; please consider before photographing.
