USB to CAN Converter Adapter: Comprehensive CAN Bus Analyzer Communication Module
🪶 Elevate your industrial communications with our advanced USB to CAN Converter Adapter, designed specifically for seamless integration and analysis within CAN 2.0A protocol systems. This robust communication module ensures reliability and high performance, making it an essential tool for engineers and developers working in the realm of CAN bus technology.
🔧 Key Features:
- Protocol Compatibility: Fully supports the CAN 2.0A standard protocol, ensuring compatibility with various mainstream CAN devices, facilitating smoother communication and data exchanges.

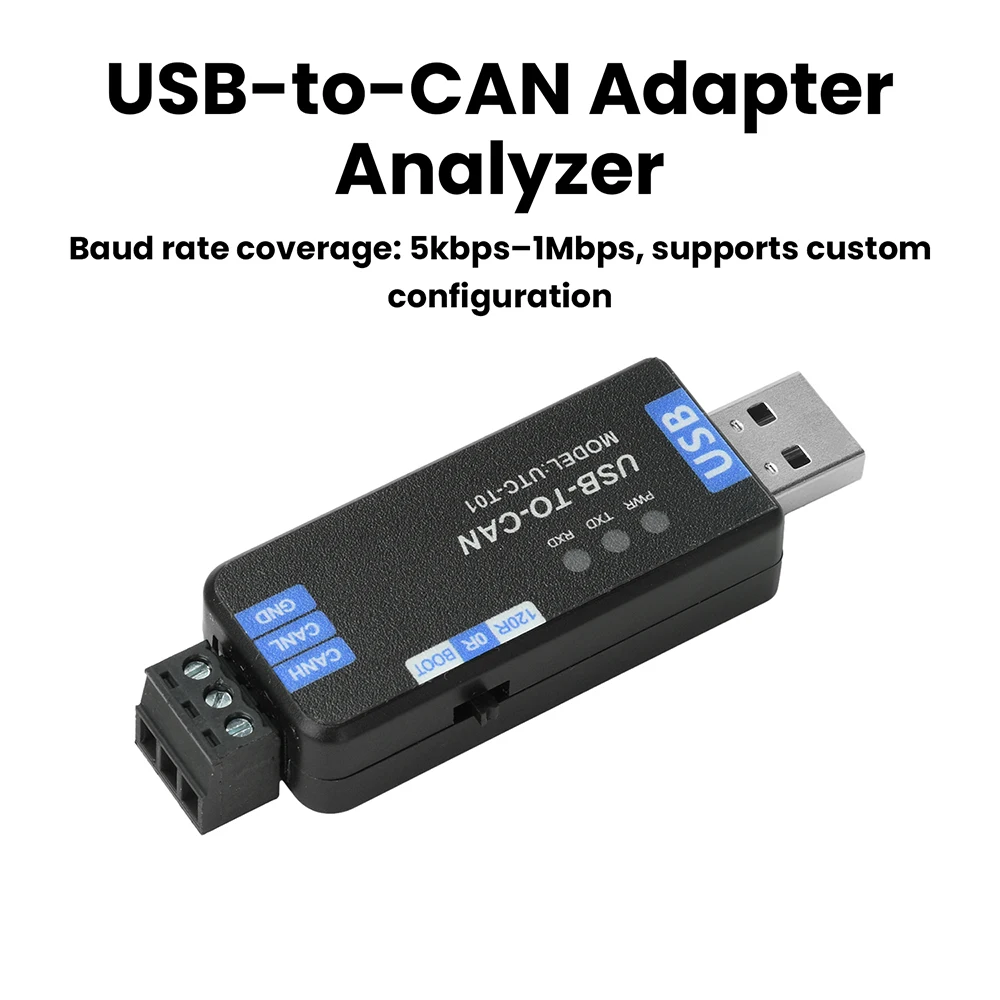

- Flexible Baud Rate: Offers a wide baud rate range from 5 kbps to 1 Mbps, with options for customizable configurations to meet specific project needs.

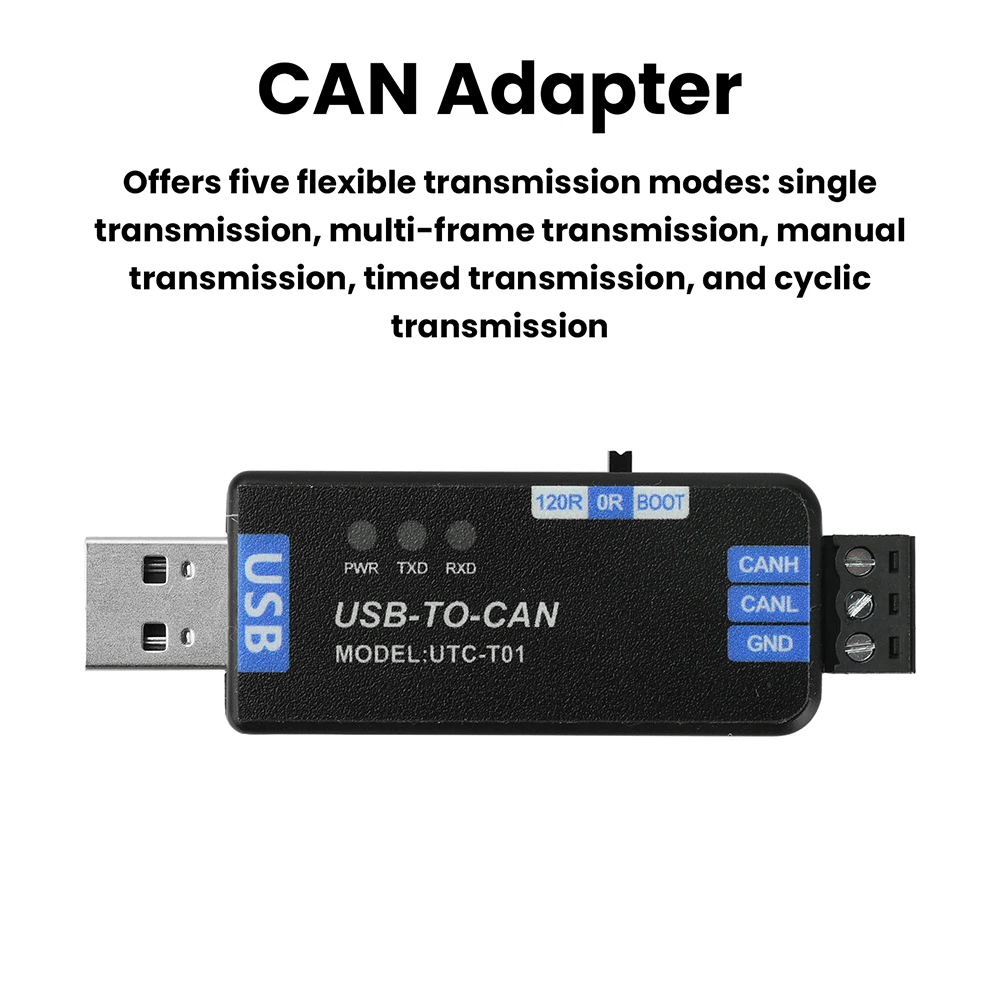

- Versatile Transmission Modes: Equipped with five distinct transmission modes—single-frame, multi-frame, manual, timed, and cyclic—allowing for tailored data handling to suit diverse application requirements.

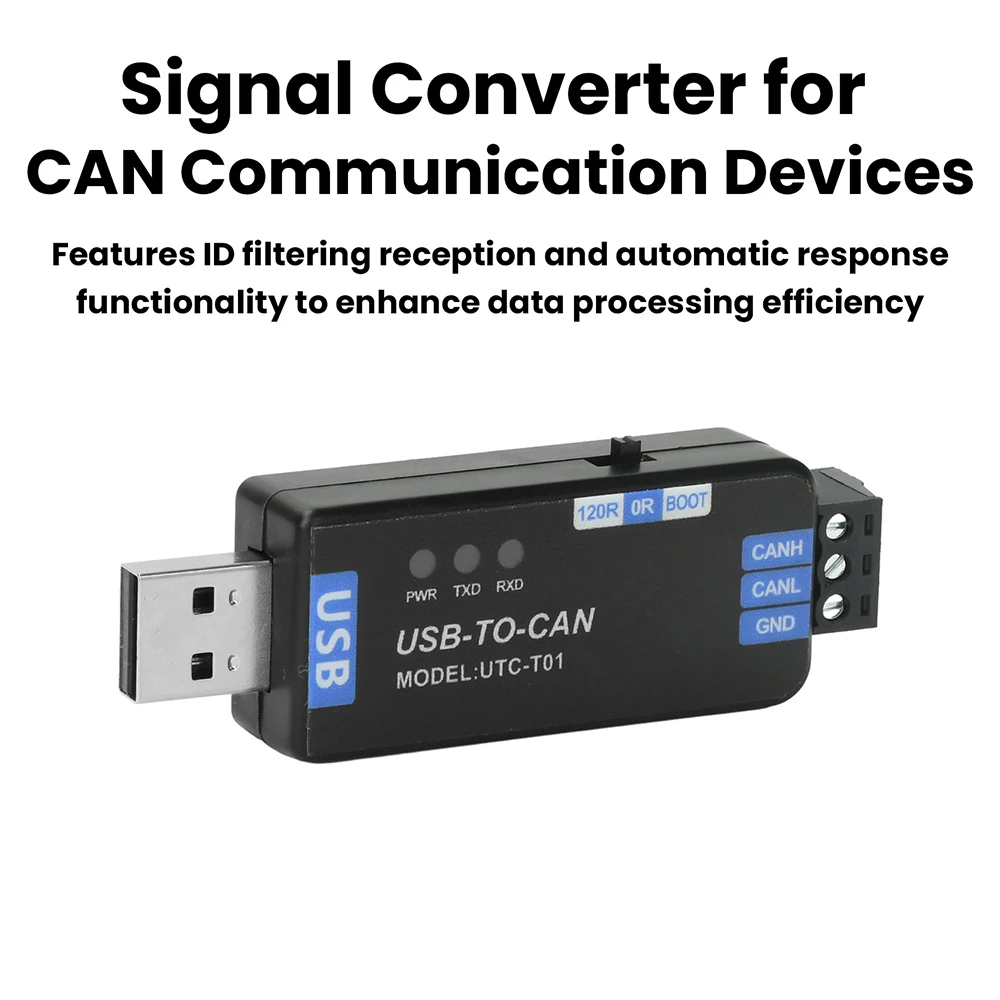

- Enhanced Data Processing: Features ID filtering reception and automatic response functionalities to boost the efficiency of your data processing tasks, ensuring only relevant data is captured and acted upon.
- Broad Application Range: Ideal for industrial CAN network testing and embedded secondary development, making it a versatile tool within various technology sectors.
🪶 Performance Parameters:
- Supports CAN2.0A (Standard) for reliable performance.
- Customizable CAN communication baud rate spanning 5 kbps to 1 Mbps.
- Multiple CAN data transmission methods including single transmission, multi-frame, manual, timed, and cyclic.
- Configurable reception methods that allow you to filter data by specified IDs or to automate responses with pre-defined data.
- Built-in CAN bus detection feature for easy monitoring of CAN bus status.
- Utilizes advanced STM32 chip technology for stable and dependable communication with microcontrollers.
- Supports secondary firmware development with capabilities for online upgrades. The default firmware is PCAN firmware.
- Compatible with Windows XP/7/8/10/11 and Linux operating systems to ensure broad usability.
- Compact product dimensions: 73.8mm x 23.6mm for easy integration into existing systems.
📦 Basic Functionality:
💍 This device effortlessly collects CAN bus data and transmits it to a computer via USB, facilitating control, analysis, acquisition, and monitoring of CAN bus network data with exceptional efficiency.
Peripheral Interface Overview:
- PWR Indicator: Illuminates red when connected to USB for easy power status monitoring.
- TXD Indicator: Flashes during CAN data transmission to visually signify traffic flow.
- RXD Indicator: Flashes when CAN data is received, providing real-time feedback on incoming information.
- DIP Switch: 120R-OR-B00T (for firmware flashing) to enable customization and upgrading.
- Communication Interface: Dedicated port for linking with various CAN communication devices.
🧩 Product Package Includes:
Enhance your industrial and embedded development efforts with this state-of-the-art USB to CAN Converter Adapter, your reliable partner for effective CAN bus communication and analysis.
