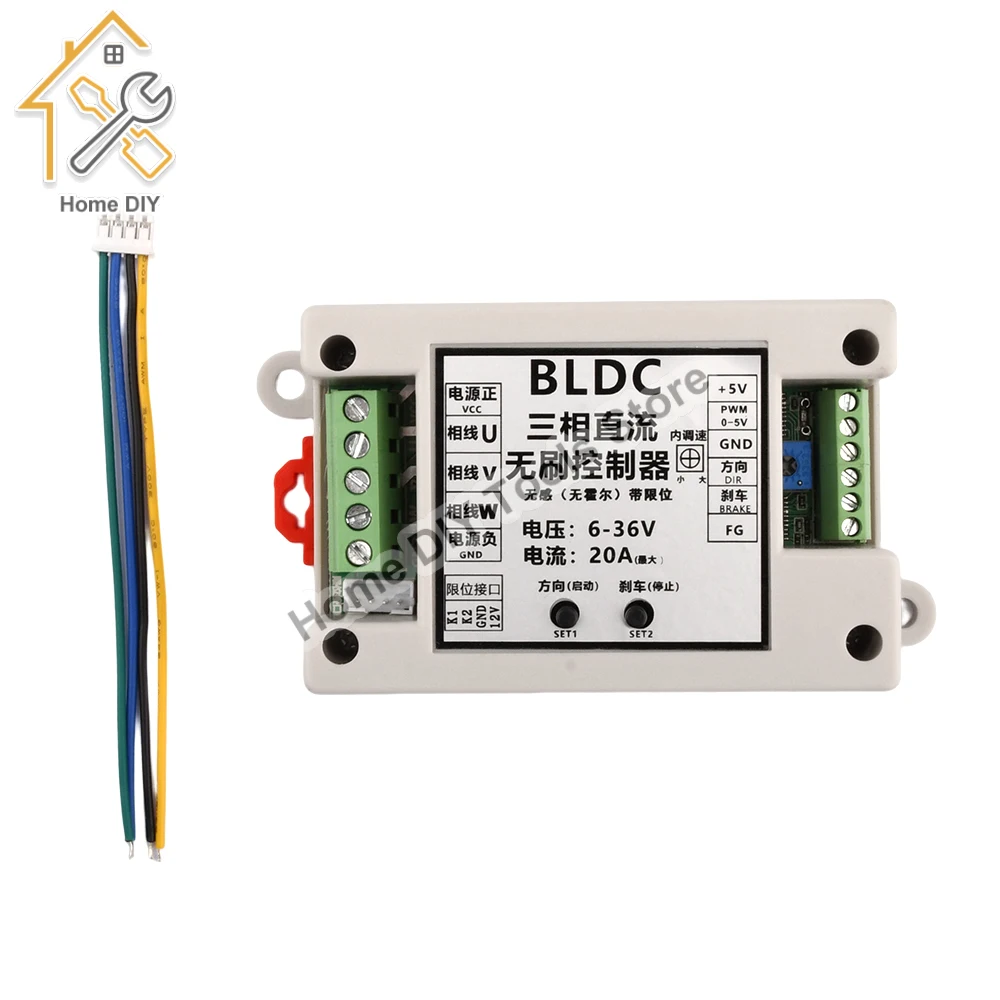

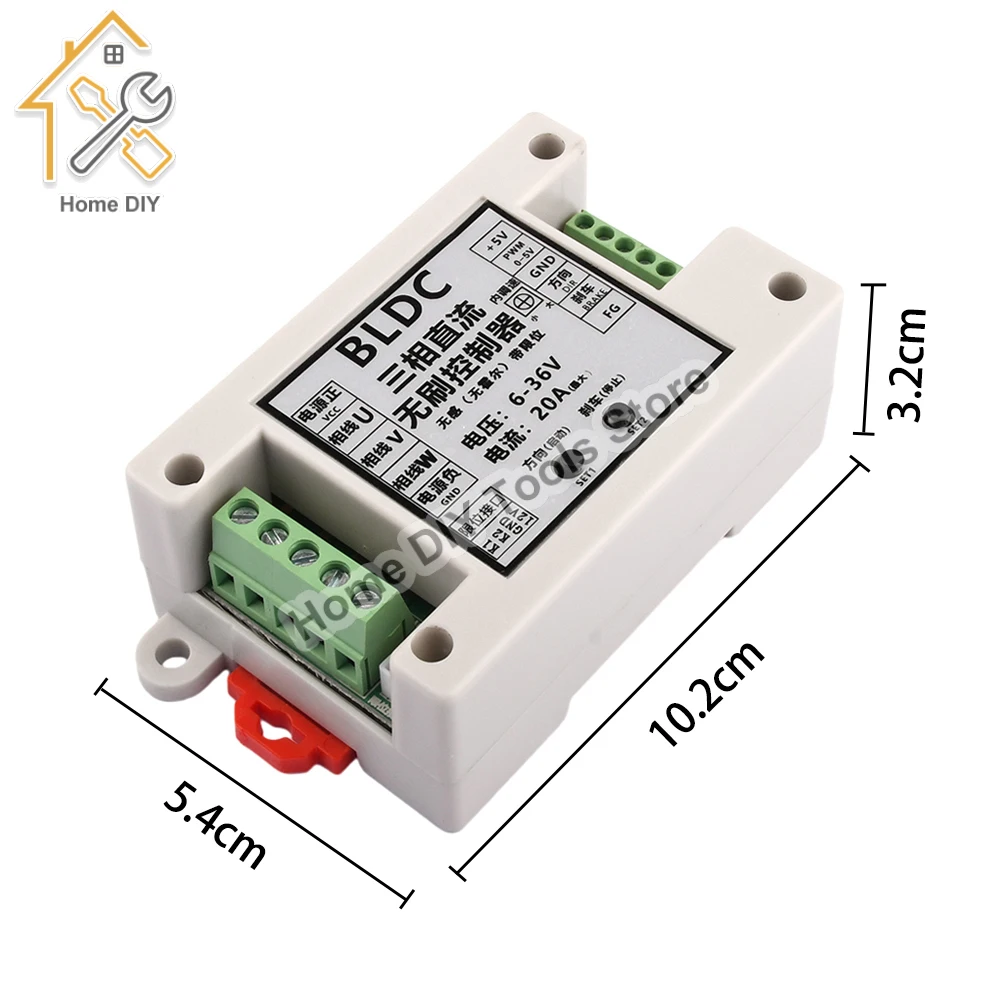

High - Power 400W Brushless Motor Speed Controller Module (ZS - X14)

💎 Product Overview:
The ZS-X14 DC 6-36V 400W BLDC 3-Phase Brushless Motor Driver is a powerful and versatile controller designed for high-performance applications. Crafted from premium materials, this controller is engineered to deliver exceptional reliability and functionality, ensuring a long service life under demanding conditions.

🧩 Key Features:
1. Multifunctional Design: This sophisticated three-phase brushless DC controller features a sensorless design with 6 operational modes and limit settings, accommodating versatile operational requirements.
2. Wide Voltage Support: Compatible with a broad voltage range from 6V to 36V, the ZS-X14 can efficiently handle high power levels up to 400W, making it suitable for a variety of applications.
3. Robust Protection Mechanisms: The controller incorporates advanced safety features including over-temperature protection, over-current protection, and locked rotor protection, safeguarding both the controller and connected motors during operation.
4. Stable Performance: Engineered to deliver consistent performance, the ZS-X14 is designed for stability across a variety of operating conditions, ensuring dependable motor control.

🧩 Operating Functions:
The ZS-X14's innovative operating instructions offer users six distinct modes, each tailored to specific demands:

• Standard Mode: Allows for stepless speed regulation enabling both forward and reverse rotation, with simple controls for braking and limit stops.
• Automatic Mode: Facilitates automatic back-and-forth operation using limit switches to achieve seamless motion.
• Inching Mode: Enables precision control, allowing for incremental forward and reverse motions, perfect for applications requiring delicate adjustments.
• Single Round Trip Mode: Automatically engages round trip operations using integrated limit switches for automated processing.
• Single Trigger Mode: Provides controlled single-direction rotation with the option to reverse upon reaching designated limits.
• Standard Mode Level Triggered: Supports easy, precise control of forward and reverse operations with a focus on limit-based braking.

🧩 For users operating the motor in a powered-off state, the ZS-X14 allows activation of the brake function, providing additional control and safety during transitional operations.

💍 Speed Control Signal Inputs:
This motor driver offers three types of speed control signal inputs, ensuring compatibility with a variety of control systems:

• 0-5V Input: Ideal for analog control, ensuring speed adjustments stay within safe parameters.
• 1-4.2V Input: Specialized input mode for specific control applications.
• PWM Input: Enables flexible control through PWM signals for smooth speed modulation across a broad range.

🧩 Interface Overview:
The controller features a user-friendly interface with multiple connection points for seamless integration:

• U V W: Connects directly to the brushless motor for three-phase operation.
• 5V GND: Provides a 5V output with a maximum current of 100mA for auxiliary components.
• VCC GND: Main power supply connections for optimal device operation.
• FG: Outputs speed pulse signals for real-time speed tracking.
• DIR: Control for forward and reverse operation, accommodating external switch integration.
• BRAKE: Active braking function for enhanced control.
• Speed Regulation Control Signals: Includes terminals for three types of speed regulation inputs, enhancing interface versatility.

🛡️ Specifications:
- Product Name: ZS-X14
- Operating Voltage: 6-30V (Limit: 36V)
- Rated Drive Current: 18A, peak performance up to 25A
- Power Rating: Rated 250W-300W, peak at 400W
- Protection Features: Overcurrent, locked rotor, and over-temperature protections included
- Maximum Speed: Up to 224,000 RPM for 2-pole motors; tailored speeds for various pole configurations.

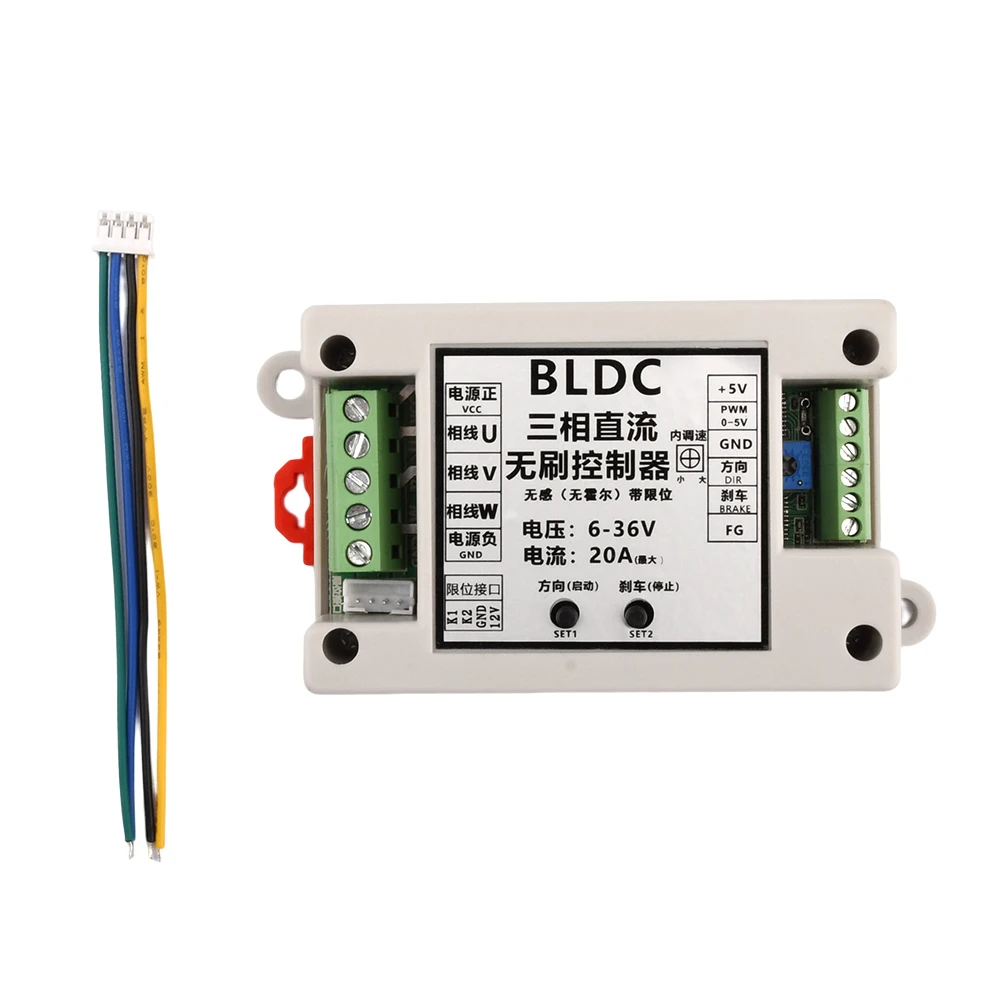

📎 What's Included:
- Controller x1
- Terminal wire x1
