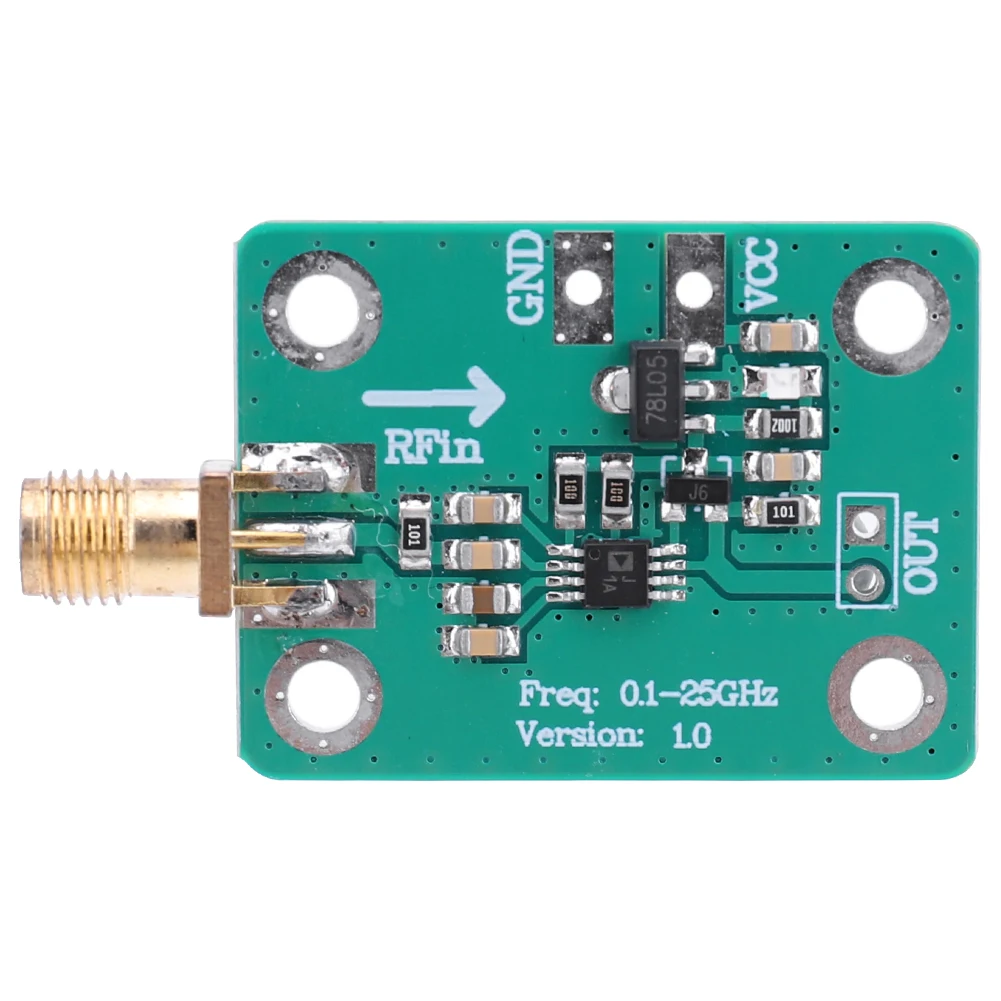

🛠️ AD8313 RF Signal Power Meter is a sophisticated detection module designed for precise and accurate measurement of radio frequency signals. Operating on a frequency range of 0.1-2.5GHz, this advanced logarithmic detector provides the capability to measure RF power levels from -72dBm to -2dBm, converting these signals into a corresponding DC voltage output for easy analysis.
🔧 Key Features:
- Wide Frequency Range: The AD8313 is engineered to effectively detect RF signals across a substantial frequency span, making it an ideal tool for a variety of applications in telecommunications, research, and electronics.
- Large Dynamic Range: With a dynamic range of up to 70dB, the output voltage of this logarithmic detector is directly proportional to the amplitude or power of the input RF signal. This logarithmic response greatly enhances flexibility and measurement accuracy.
- Precise Measurements: Offering a detection slope of 18mV/dBm (typical), the module facilitates precise power measurement, enabling users to efficiently analyze and monitor RF signal levels with confidence.
- High Compatibility: The device operates seamlessly within its specified frequency range, ensuring versatility and compatibility with a broad spectrum of RF devices and systems, thereby catering to diverse needs across various industries.
- Easy to Use: Designed with user convenience in mind, the RF power analyzer board features a clear display and straightforward controls, making it accessible for both professionals and enthusiasts. Its adjustable power supply voltage of 7-15V further enhances its adaptability for different applications.
🔍 Specifications:
- Certification: NONE
- Origin: Mainland China

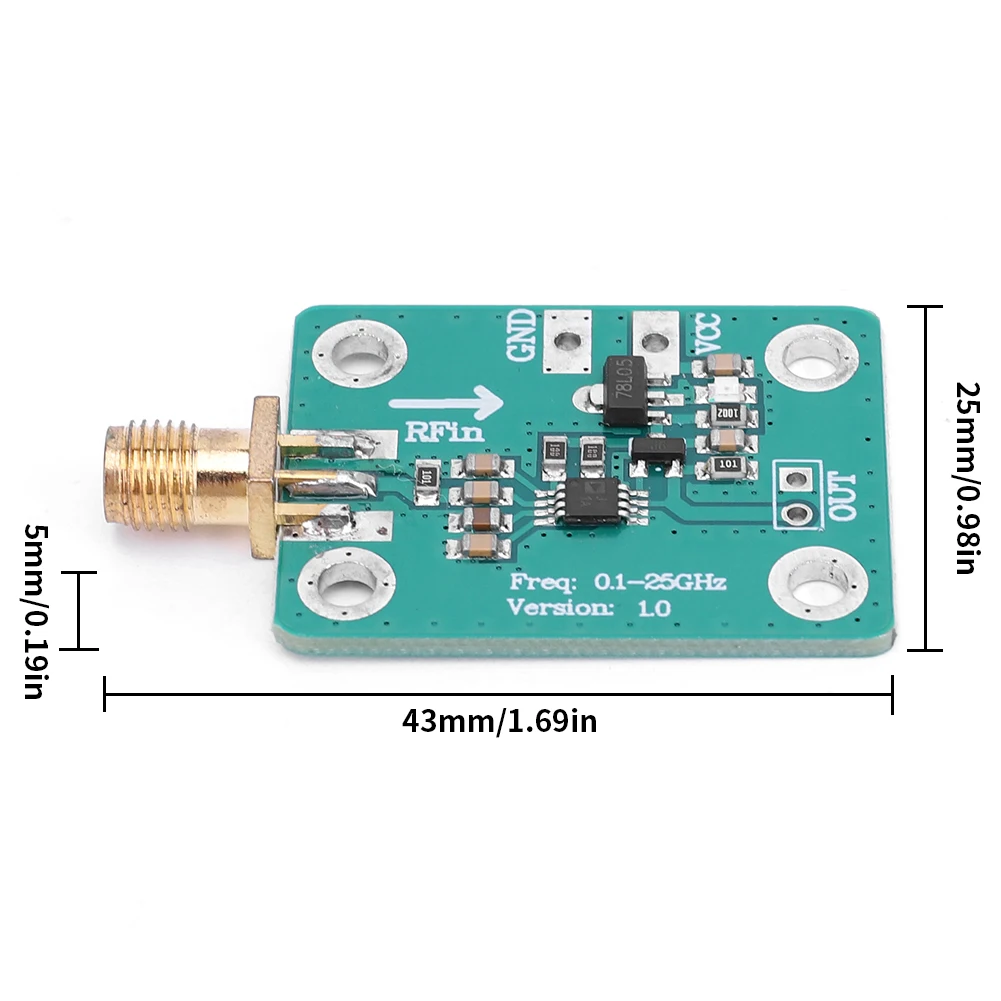

- Dimensions: 43 x 25 x 5mm (1.7 x 1.0 x 0.2 inches)
- Color: Green
- Measured Power: -72 to -2dBm
- Output Voltage: 0.5-1.65V
- Input Impedance: 50 ohms
💍 Application: The AD8313 RF Signal Power Meter is specifically designed for RF signal power detection, enabling users to convert RF signals into DC voltages for reliable analysis. Its robust features allow for detecting power levels across a wide bandwidth, ensuring that the output voltage reflects the logarithm of the input signal amplitude, optimizing the measurement experience.
💍 Note: Variations in color may occur due to different monitor settings and lighting effects. Additionally, please allow for slight measuring deviations (1-2cm) due to manual measurements.
📎 Included: 1 x RF Signal Power Meter
